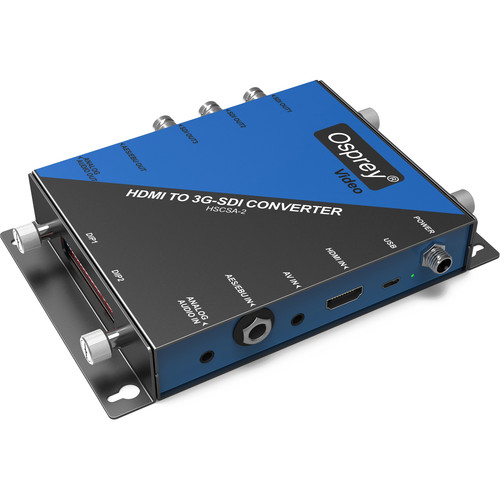

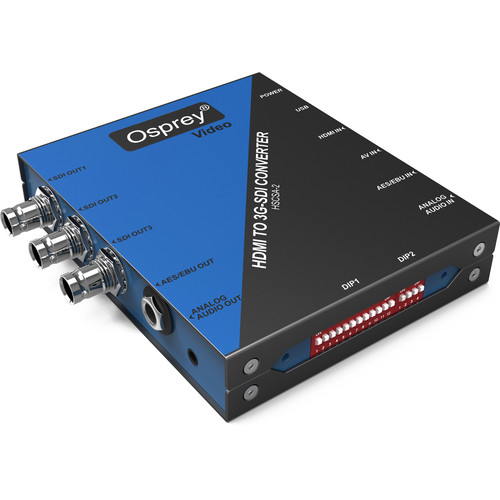

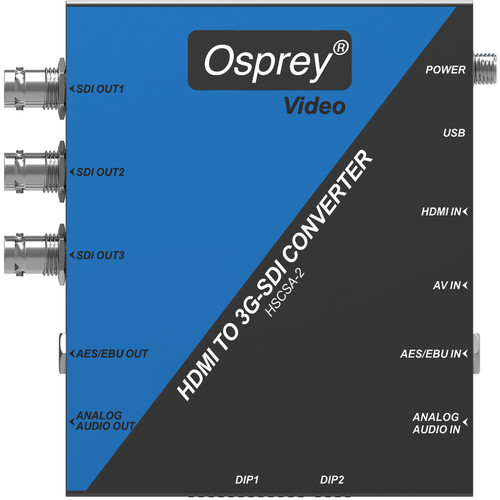

Osprey HSCSA-2 HDMI to 3G-SDI Scaling Converter

Add to Wishlist
Key Features
  • HDMI & Composite Inputs
  • 3 x 3G-SDI Outputs
  • Supports SD & up to 1080p HD
  • Converts HDMI to SDI
  • Up-/Downscaling, Frame Rate Conversion
  • Audio Embedding & De-Embedding
  • Control Settings via DIP Switch or USB
  • 4 x Customizable Settings
  • Diagnostic Data Overlay Option

AED1,499.00

Add to Wishlist

In addition to HDMI to SDI conversion, the HSCSA-2 HDMI to 3G-SDI Scaling Converter from Osprey Video offers a bevy of video workflow features. Tools include a built-in scaler, plus interlacing and de-interlacing. A frame rate converter adjusts the input signal to your required output standard. Audio options include embedding/de-embedding for AES/EBU and analog audio. The HSCSA-2 Converter’s diagnostic data overlay can be activated to monitor your video information.

The HSCSA-2 Converter is designed with one HDMI input and one composite video input, and with three 3G-SDI outputs. Settings can be changed using the USB interface or the converter’s DIP switches. Four custom settings are user-configurable via software, and diagnostic data can be enabled for video information monitoring. This compact unit comes with a power supply and mounting brackets.

Features
HDMI input is scaled and/or frame rate–converted to your required output standard
HDMI and composite video inputs; three 3G-SDI outputs
Audio embedding and de-embedding for AES/EBU and analog audio
Four customizable settings can be selected via the HSCSA-2’s USB interface or DIP switches
SKU: 97-42111 Category: Tag:
HDMI Input
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576i, 576p
480i, 480p
Video Inputs
HDMI 1.3a
CVBS (composite)
Input Video Formats AV
NTSC, PAL
Video Output
3 x 3G-SDI
Output Video Formats SDI
1080p: 60/50/30/25/24
1080i: 60/59.94/50
625i
525i
Color Space
HDMI: YUV 4:2:2, YUV 4:4:4, RGB 4:4:4
SDI: YUV 4:2:2
Audio Input
Embedded HDMI, analog stereo, AES/EBU
Audio Output
Embedded HDMI, analog stereo, AES/EBU
Power
Maximum: 12 V, 6 W
Dimensions
5 x 2.4 x 0.95″ (127 x 61 x 24 mm)
Weight
0.7 lb (0.3 kg)
Packaging Info
Package Weight
2.84 lb
Box Dimensions (LxWxH)
6.9 x 6.7 x 3.6″
