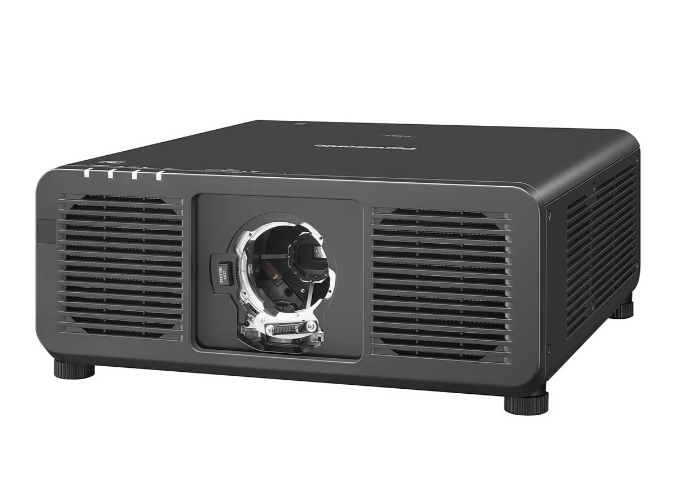

Panasonic PT-REQ80LBU 8000-Lumen WQUXGA Quad Pixel Drive Laser Projector – Black – No Lens

Add to Wishlist
  • Dynamic Visuals Take Production to New Heights
  • Effortless Workflow, Improved Expandability
  • New Cabinet Design for Maintenance-Free Operation

AED144,999.00

Add to Wishlist

As the world enters a new era of engagement, entertainment venues are looking for AV technology that captivates audiences with exceptional, elevated levels of experiences by visually stimulating their senses to create emotional and lasting connections. The next-generationĀ PT-REQ80LBUĀ 1-Chip DLP 4K Laser Projector is designed to streamline productions and expand the endless possibilities of entertainment by delivering exceptional, highly engaging immersive experiences with up to 8,000lm brightness, 4K resolution, and 240 Hz projection capability.

Please Note!Ā Lenses sold seperately.
Compatible Lenses:
PAN-ET-C1S600
PAN-ET-C1T700
PAN-ET-C1W300
PAN-ET-C1W400
PAN-ET-C1W500

  • Features:

    • Dynamic Visuals Take Production to New Heights
    • Effortless Workflow, Improved Expandability
    • New Cabinet Design for Maintenance-Free Operation
SKU: PT-REQ80LBU Category: Tag:

  • Specifications:

    • Projector type:Ā 1-Chip DLP projectors
    • Dimensions (WxHxD):Ā 19.625″ x 8.34″ x 21.18″ (498 mm x 212 mm x 538 mm)
    • Resolution:Ā 4K (3840 x 2400 pixels) (Quad Pixel Drive: ON)
    • Operating Temperature:Ā 32Ā°F-113Ā°F (0Ā°C-45Ā°C)
    • Humidity:Ā 10%-80%
    • Installation:Ā Ceiling/floor, front/rear, free 360-degree installation
    • Cabinet Materials:Ā Molded Plastic
    • Applicable software:Ā Logo Transfer Software, Multi Monitoring & Control Software, Projector Network Setup Software, Real-Time Tracking Projection-Mapping System, Early Warning Software, Geometry Manager Pro, Smart Projector Control for iOS/Android
    • Weight:Ā 63.49 lbs (28.8 kg)
    • Contrast Ratio:Ā 20,000:1
    • Power supply:Ā AC 100-240 V, 50/60 Hz
    • Light source:Ā Laser diode

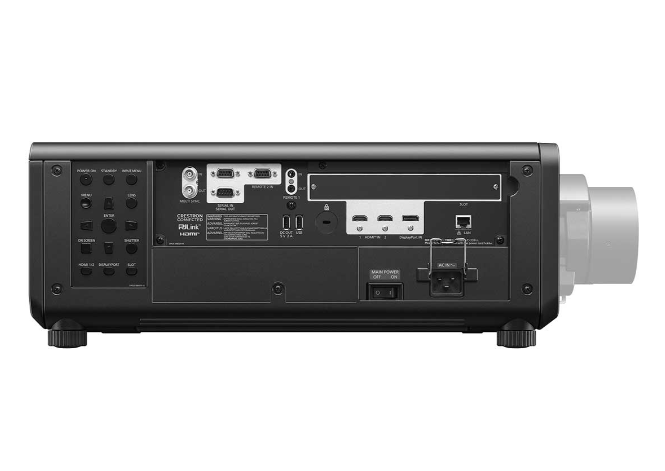

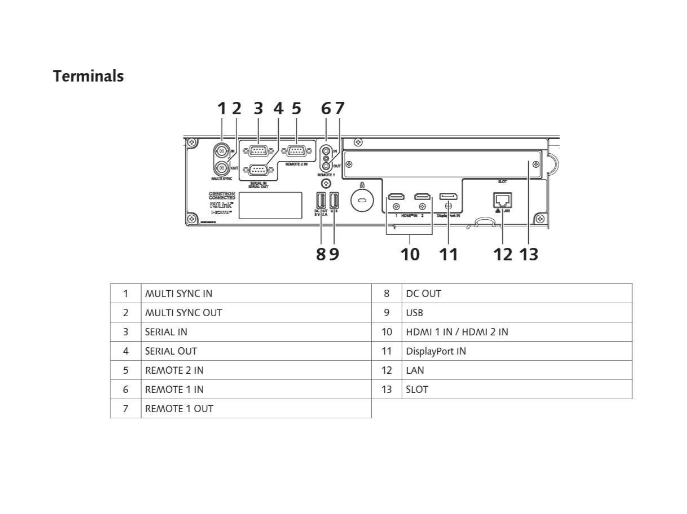

    • Terminals – Serial In:Ā D-sub 9-pin (female)Ā 1xĀ for external control (RS-232C compliant)
    • Terminals – LAN:Ā RJ-45Ā 1xĀ for network connection, PJLink (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
    • Terminals – DC Out:Ā USB Type AĀ 1xĀ (for power supply, DC 5 V, 2 A)
    • DLP chip – Panel size:Ā 0.8 in diagonal (16:10 aspect ratio)
    • DLP chip – Display method:Ā DLP chip, DLP projection system
    • Terminals – Serial Out:Ā D-sub 9-pin (male)Ā 1xĀ for link control (RS-232C compliant)
    • Terminals – USB:Ā USB connector (Type A)Ā 1xĀ for optional AJ-WM50 Series Wireless Module/USB memory
    • Terminals – Remote 2 In:Ā D-sub 9-pin (female)Ā 1xĀ for external control (parallel)
    • Terminals – Expansion Slot:Ā Open slot for for function boards, Intel SDM compatible
    • Terminals – Remote 1:Ā M3 stereo mini-jackĀ 1xĀ for wired remote control
    • Terminals – Remote 1 Out:Ā M3 stereo mini-jackĀ 1xĀ for link control (for wired remote control)
    • Operation noise:Ā 35 dB (Normal/ECO), 32 dB (Quiet)
    • DLP chip – Number of Pixels:Ā 2,304,000 (1920 x 1200 pixels)
    • Center-to-corner zone ratio:Ā 90%
    • Time until light output declines to 50%:Ā 20,000 hours (NORMAL/QUIET), 24,000 hours (ECO)
    • Terminals – Multi Sync Out:Ā 1xĀ BNC
    • Light Output:Ā 8,000 lm
    • Protocol versions:Ā IPv4, IPv6
    • Control function via LAN:Ā Crestron Connected V2, Crestron XiO Cloud, Art-Net DMX, AMX DD, and PJLink (Class 2)
    • Terminals – HDMI 1/2 In:Ā HDMIĀ 2xĀ (Deep Color, compatible with HDCP 2.3, 4K/60p signal input)
    • Terminals – DisplayPort:Ā DisplayPortĀ 1xĀ (Deep Color, compatible with HDCP 2.3, 4K/60p signal input)
    • Terminals – Multi Sync In:Ā 1xĀ BNC
    • Power Consumption – Maximum power consumption:Ā 760 W (7.7-3.2 A) (770 VA)
    • Power Consumption – On-mode power consumption (Operating mode) Nomal:Ā 600 W
    • Power Consumption – On-mode power consumption (Operating mode) ECO:Ā 475 W
    • Power Consumption – On-mode power consumption (Operating mode) Quiet:Ā 470 W

  • Item Includes:

    • 1xĀ Panasonic PT-REQ80LBU DLP Projector – Lens not included
    • 1xĀ Power Cord
    • 1xĀ Wireless/Wired Remote Control Unit
    • 1xĀ AAA Batteries for Remote
    • 1xĀ SLOT Adaptor
