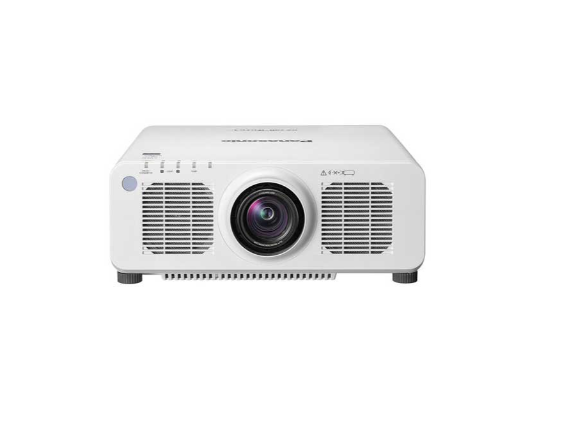

Panasonic PT-RZ790WU 7200-Lumen WUXGA DLP Projector – White


  • Laser 1-chip DLP, 7,200 lm (center)/ 7,000 lm (ANSI), WUXGA
  • Quartet Color Harmonizer technology for more accurate color reproduction
  • Maintenance free up to 20,000 hours with dust-resistant optical block and long lasting laser engine

AED88,299.00

Deepen immersion in any environment with vivid, accurate colors backed by up to 910,0400 lm of brightness thanks to Quartet Color Harmonizer and 1-Chip DLPā„¢ imaging technology. With support for 4K/60p input signals, separate DIGITAL LINK and LAN terminals, and diverse optional lenses, these projectors reduce installation hassles with convenient flexibility.Engineered for 20,000 hours of maintenance-free reliability with lasting brightness and color uniformity from the industry’s leading dust-resistant optical engine.

Power to Impress with Accurate Colors
Deepen immersion in any environment with high brightness, rich color, and accurate white balance thanks to Quartet Color Harmonizer and 1-Chip DLPā„¢ imaging technology

Easy to Install and Integrate
With versatile apps and functions, diverse optional lenses, support for 4K input signals*1, and separate DIGITAL LINK and LAN terminals, these projectors reduce installation hassles with convenient flexibility.

Reliable Even in Harsh Conditions
Engineered for 20,000 hours of maintenance-free reliability with lasting brightness and color uniformity from the industry’s leading
dust-resistant optical engine.

  • Features:

    • Laser 1-chip DLP, 7,200 lm (center)/ 7,000 lm (ANSI), WUXGA
    • Quartet Color Harmonizer technology for more accurate color reproduction
    • Maintenance free up to 20,000 hours with dust-resistant optical block and long lasting laser engine
    • Supports 4K/60p Signal Input, separate DIGITAL LINK and LAN terminals
SKU: PT-RZ790WU Category: Tag:

Specifications:

  • Projector Type:Ā 1-Chip DLPā„¢ projector
  • DLPā„¢ Chip | Panel Size:Ā 17.0 mm (0.67 in) diagonal ( Panel size 16:10 aspect ratio)
  • DLPā„¢ Chip | Display Method:Ā DLPā„¢ chip x 1, DLPā„¢ projection system
  • DLPā„¢ chip | Number of Pixels:Ā 2,304,000 (1920 x 1200 pixels)
  • Light Source:Ā Laser diodes
  • Light output:Ā 7,000 lm (Normal)*1 /7,200 lm (Center)*2 / 5,600 lm (Eco)*1 /2,800 lm (Long Life 1)*1 / 2,300 lm (Long Life 2)*1 /1,900 lm (Long Life 3)*1
  • Time until light output declines to 50 %*3:Ā 20,000 hours (Normal)/24,000 hours (Eco)
  • Resolution:Ā 1920 x 1200 pixels
  • Contrast Ratio*1:Ā 10,000:1 (Full On/Full Off, Dynamic Contrast [3] )
  • Screen size [diagonal]:Ā 1.27-15.24 m (50-600 in), 1.27-5.08 m (50-200 in) with ET-DLE055, 2.54-8.89 m (100-350 in) with
    ET-DLE035, 2.54-10.16 m (100-400 in) with ET-DLE020, 16:10 aspect ratio
  • Center-to-corner zone ratio*1:Ā 90 %
  • Lens:Ā With supplied lens: Powered zoom (throw ratio 1.71-2.41:1), powered focus F 1.7-1.9, f 25.6-35.7 mm Without lens:
    Optional powered zoom/focus lenses
  • Lens shift*4 | Vertical(From the origin point of the lens mounter):Ā +50 %, -16 % (+40 %, -16 % with ET-DLE060) (powered)
  • Lens shift*4 | Horizontal(From the origin point of the lens mounter):Ā +30 %, -10 % (+10 %, -20 % with ET-DLE020, +19 %,
    -10 % with ET-DLE060, +28 %, -10 % with ET-DLE105/ET-DLE085) (powered)
  • Keystone Correction Range:Ā Vertical: ±40 ° (±5 ° with ET-DLE020, ±16 ° with ET-DLE060, ±22 ° with
    ET-DLE105/ET-DLE085/ET-DLE055, +5 ° with ET-DLE035), Horizontal: ±15 ° (±10 ° with ET-DLE060) (cannot be operated with ET-DLE035/ET-DLE020)
  • Keystone correction range with optional ET-UK20 Upgrade Kit:Ā Vertical: ±45 ° (±16 ° with ET-DLE060, ±40 ° with ET-DLE150/ET-DLE250/ET-DLE170, ±22 ° with ET-DLE105/ET-DLE085/ET-DLE055), Horizontal: ±40 ° (±10 ° with ET-DLE060, ±15 ° with ET-DLE105/ET-DLE085/ET-DLE055) When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made
    exceeding a total of 55 °.
  • Terminals | SDI In:Ā BNC x 1: 3G/HD/SD-SDI input
  • Terminals | HDMI In:Ā HDMI 19-pin x 1 (Compatible with HDCP 2.2, Deep Color, 4K/60p signal input*5 )
  • Terminals | DVI-D In:Ā DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
  • Terminals | RGB 1 In:Ā RGB x 1 (BNC x 5): RGB/YPBPR/YCBCR
  • Terminals | RGB 2 In:Ā D-sub HD 15-pin (female) x 1: RGB/YPBPR/YCBCR
  • Terminals | Serial/Multi Projector Sync In:Ā D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
  • Terminals | Serial/Multi Projector Sync Out:Ā D-sub 9-pin (male) x 1 for link control
  • Terminals | REMOTE 1 IN:Ā M3 x 1 for wired remote control
  • Terminals | REMOTE 1 OUT:Ā M3 x 1 for link control (for wired remote control)
  • Terminals | Remote 2 In:Ā D-sub 9-pin (female) x 1 for external control (parallel)
  • Terminals | DIGITAL LINK:Ā RJ-45 x 1 for network and DIGITAL LINK connections (HDBaseTā„¢ compliant), PJLinkā„¢
    (Class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.2 compatible, Deep Color compatible, 4K/60p signal input*5
  • Terminals | LAN:Ā RJ-45 x 1 for network connection, PJLinkā„¢ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
    *1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. *2 Average light-output value of all shipped products measured at center of screen in Normal Mode. *3 Around
  • this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, Normal Mode, Dynamic Contrast [3],
