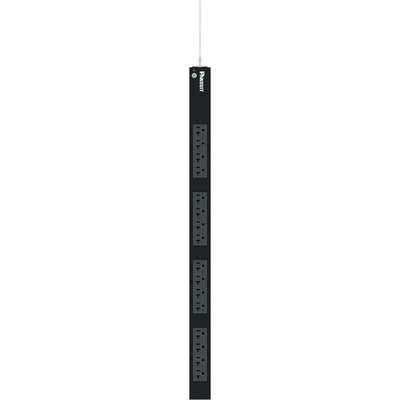

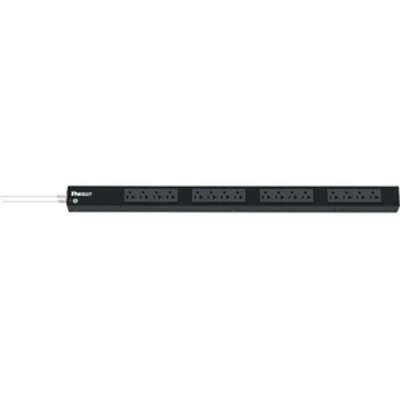

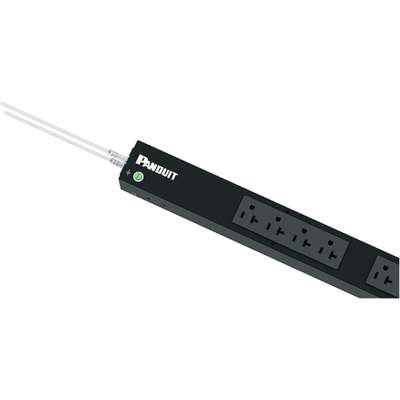

Panduit Basic PDU, 20AMP, 120 VOLT, (16) 5-20R, L5-20P


AED1,699.00

Panduit Basic Rack PDUs provide reliable and cost effective power distribution in a variety of inputs (Single or Three Phase; Delta or WYE) and outlet configurations (IEC C13, C19, or NEMA compliant).
These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware.

SKU: P16B08M Category: Tag:
Category Field Value
General Information Product Name Basic PDU – Basic PDU, 30AMP, 120 VOLT, (22) 5-20R, L5-30P
Product Line SmartZone
Product Model P22B09M
Packaged Quantity 1
Product Type PDU
Technical Information PDU Type Basic
Phase Single Phase
Plug / Connector Type NEMA L5-30P
Receptacle Type NEMA 5-20R
Receptacle Detail 22 x NEMA 5-20R
Protection Type Single Pole
Management Remote Outlet Switching No
Power Description Input Voltage 120 V AC
Output Voltage 120 V AC
Output Voltage Range 120 V AC – 240 V AC
Power Rating (VA) 2900 VA
Input Current 30 A
Physical Characteristics Mounting Orientation Vertical
Mount Type Rack-mountable
Rack Height 0U
Height 32.2″
Width 2″
Depth 2.1″
