Power distribution unit
Panduit Basic PDU, 30AMP, 120V, (16) 5-20R, NEMA L5-30P
- Outlet Density: Meets demands of densely packed IT equipment in rack or cabinet space
- Form Factor: Optimal form factor takes up less space for efficient rack space utilization
- Operating Temperature: 60 °C ambient at full load for operational reliability
- Cable Retention: Our innovative cable tie accepting outlets allow for secure cord retention (C13 & C19 only) using a cable tie for added safety and security. (Panduit part number: PLT2I-C0)
- Circuit Breakers: Protects data center equipment for increased reliability by interrupting potentially hazardous circuit over-current conditions
- Color Coded Circuits: Easily identify phase to outlet banks to aid in fault isolation or load balancing
- Multiple input plug options: A full breadth offering to seamlessly interoperate with existing building power wiring schemes
- Multiple Mounting options: Enables simple out of the box commissioning and flexibility with Panduit cabinets and industry standard mounting features enabling installation into third party cabinets
- Mounting buttons: Allows tool-less mounting of rack PDUs for faster installations on vertical 0U units
- External Chassis Ground: Meets NEC requirements and installation guidelines for IT equipmen
AED2,099.00

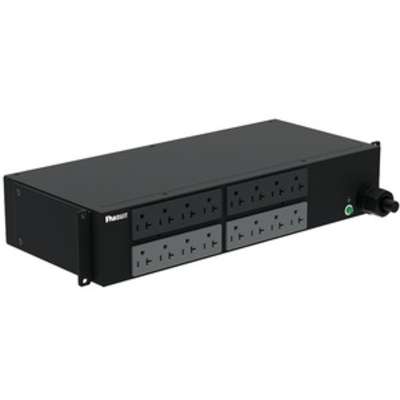

The 30A, 120V horizontal single phase PDU has (16) 5-20R receptacles, a 10′ (3m) power cord with a NEMA L5-30P plug, and measures 3.4″H x17.5″W 7.8″D (86.4mm x 444.5mm x 198.1mm). UL Listed. Color: Black
| Category | Field | Value |
|---|
| General Information | Product Name | Basic PDU, 30AMP, 120V, (16) 5-20R, NEMA L5-30P |
| Product Model | P16B41M |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | PDU Type | Basic |
| Phase | Single Phase |
| Plug / Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 16 x NEMA 5-20R |
| Power Description | Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Power Rating (VA) | 2900 VA |
| Input Current | 30 A |
| Physical Characteristics | Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Rack Height | 2U |
| Height | 3.4″ |
| Width | 17.5″ |
| Depth | 7.8″ |
| Miscellaneous | Environmentally Friendly | Yes |
| Environmental Compliance | RoHS, REACH |
