Power distribution unit

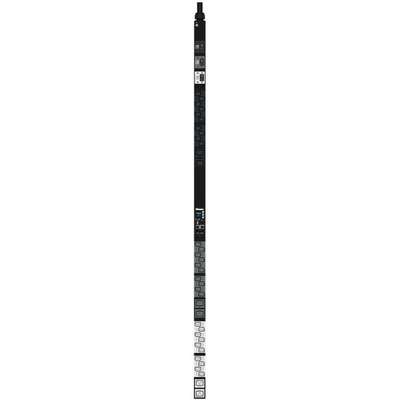

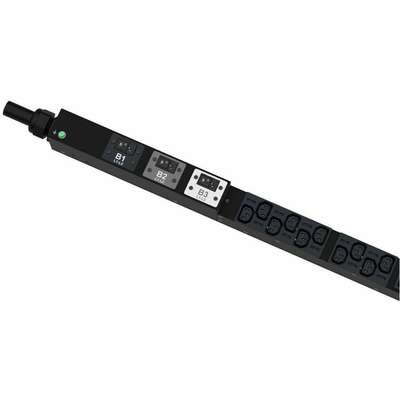

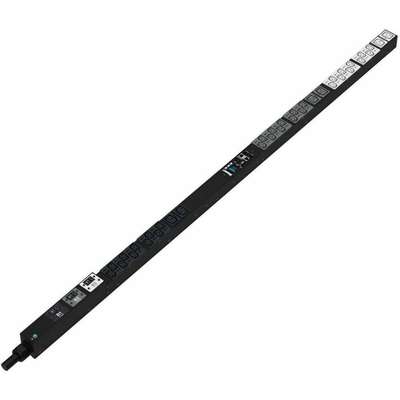

Panduit G6 Intelligent PDU – G6 MI PDU, 50AMP, (30) C13, (6) C19, CS8265
AED10,899.00
General Information
| Attribute | Details |
|---|---|
| Product Name | G6 Intelligent PDU – G6 MI PDU, 50AMP, (30) C13, (6) C19, CS8265 |
| Manufacturer Part Number | P36D26G |
| Product Series | G6 |
| Packaged Quantity | 1 |
| Product Type | PDU |
Technical Information
| Attribute | Details |
|---|---|
| PDU Type | Monitored |
| Phase | Single Phase |
| Plug / Connector Type | CS8265 |
| Receptacle Type | IEC 60320 C13 IEC 60320 C19 |
| Receptacle Detail | 30 x IEC 60320 C13 6 x IEC 60320 C19 |
| Features | Onboard Display |
| Load Capacity (Watt) | 8300 W |
Interfaces / Ports
| Attribute | Details |
|---|---|
| Network (RJ-45) | Yes |
Environmental Conditions
| Attribute | Details |
|---|---|
| Min Operating Temperature | 50°F (10°C) |
| Max Operating Temperature | 140°F (60°C) |
| Min Storage Temperature | 24.8°F (-4°C) |
| Max Storage Temperature | 284°F (140°C) |
Power Description
| Attribute | Details |
|---|---|
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Power Rating (Watt) | 8300 W |
| Input Current | 50 A |
| Input Frequency | 60 Hz |
Physical Characteristics
| Attribute | Details |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Cord Length | 10 ft |
| Height | 69″ |
| Width | 2″ |
| Depth | 2.1″ |
