Panduit G6 Mipdu 30A TF Black Pack 1

Add to Wishlist

AED15,899.00

Add to Wishlist

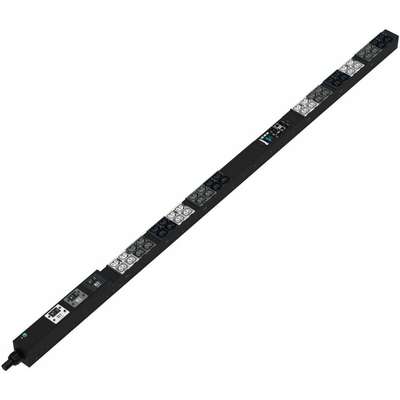

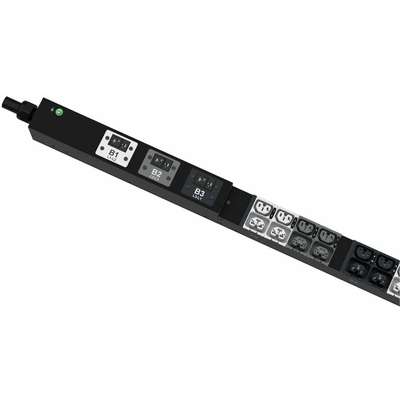

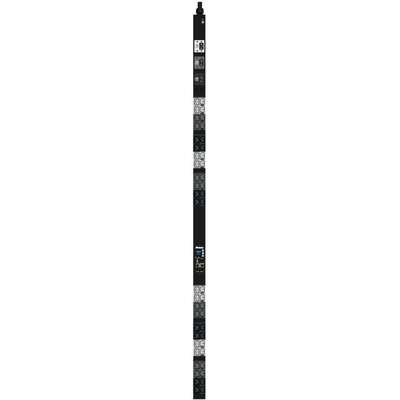

The Panduit™ G6 Monitored Input PDU features (24)C13/C15, (24)C13/15/C19/C21 outlets. This PDU is designed with combination outlets which allows the receptacle to be used as an C13/C15/C19 or C21 outlet. It is a 30 amp 208V three phase PDU with an NEMA L21-30P input plug and a 10 foot (3m) power cord. The PDU is black.

SKU: P48D21G Category: Tag:

General Information

Attribute Details
Product Name G6 Mipdu 30A TF Black Pack 1
Manufacturer Part Number P48D21G
Product Series G6
Packaged Quantity 1
Product Type PDU

Technical Information

Attribute Details
PDU Type Monitored
Phase Three Phase
Plug / Connector Type NEMA L21-30P
Receptacle Type IEC 60320 C13/C15
IEC 60320 C13/C15/C19/C21
Receptacle Detail 24 x IEC 60320 C13/C15
24 x IEC 60320 C13/C15/C19/C21
Features Onboard Display
Load Capacity (Watt) 1900 W

Interfaces / Ports

Attribute Details
Network (RJ-45) Yes

Environmental Conditions

Attribute Details
Min Operating Temperature 50°F (10°C)
Max Operating Temperature 140°F (60°C)
Min Storage Temperature 24.8°F (-4°C)
Max Storage Temperature 284°F (140°C)

Management

Attribute Details
Management SNMP

Power Description

Attribute Details
Input Voltage 120 V AC
Output Voltage 120 V AC
Power Rating (Watt) 1900 W
Input Current 30 A
Input Frequency 60 Hz

Physical Characteristics

Attribute Details
Color Family Black
Product Color Black
Mounting Orientation Vertical
Mount Type Rack-mountable
Rack Height 19U
Cord Length 10 ft
Height 70″
Width 2.2″
Depth 3″
