| Category | Attribute | Value |
|---|

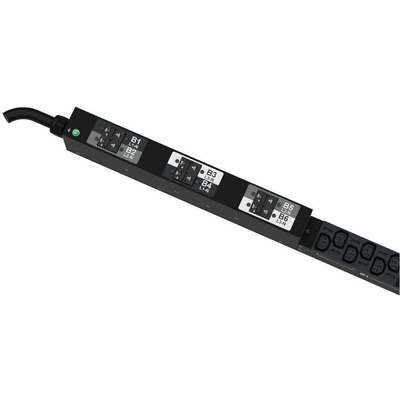

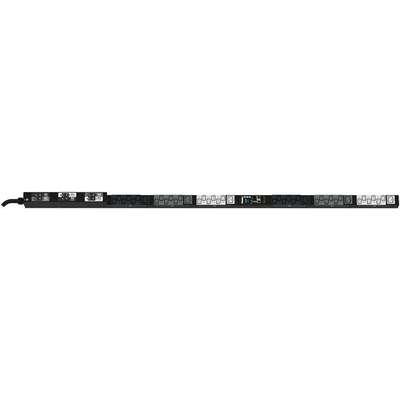

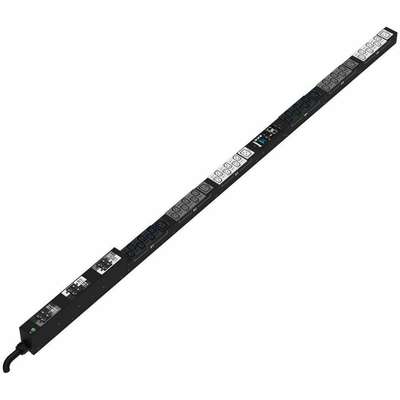

| General Information | Product Name | G6 Mipdu 415V30AMP NEMA TF Black PK1 |
| Manufacturer Part Number | P42D07G |
| Product Series | G6 |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | PDU Type | Monitored |
| Phase | Three Phase |
| Plug / Connector Type | NEMA L22-30P |
| Receptacle Type | IEC 60320 C13, IEC 60320 C19 |
| Receptacle Detail | 36 x IEC 60320 C13, 6 x IEC 60320 C19 |
| Features | Onboard Display |
| Load Capacity (Watt) | 17.30 kW |
| Interfaces/Ports | Network (RJ-45) | Yes |
| Environmental Conditions | Minimum Operating Temperature | 50°F (10°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | 24.8°F (-4°C) |
| Maximum Storage Temperature | 284°F (140°C) |
| Management | Management | SNMP |
| Power Description | Input Voltage | 415 V AC |
| Output Voltage | 240 V AC |
| Power Rating (Watt) | 17.30 kW |
| Input Current | 30 A |
| Input Frequency | 60 Hz |
| Physical Characteristics | Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 43U |
| Cord Length | 10 ft |
| Height | 74.6″ |
| Width | 2″ |
| Depth | 2.1″ |
