Power distribution unit

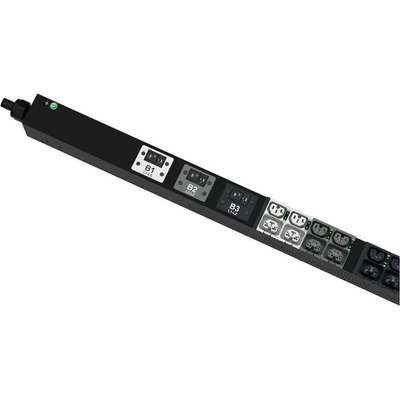

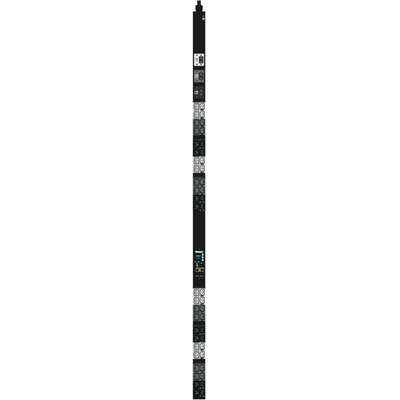

Panduit G6 Mspdu 30AMP NEMA L15-30P-3M TF Black Pack
- Thermal protection – Prevents overheating through environmental sensors
- Multi-vendor compatibility – Works with major server OEM configurations
- Fault isolation – Quickly identifies problematic circuits
AED13,999.00
G6 MSPDU provides 30A three-phase power distribution with NEMA L15-30P input for data centers.
| Category | Attribute | Value |
|---|
| General Information | Product Name | G6 Mspdu 30AMP NEMA L15-30P-3M TF Black Pack |
| Manufacturer Part Number | P24E29G |
| Product Series | G6 |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | PDU Type | Monitored, Switched |
| Phase | Three Phase |
| Plug / Connector Type | NEMA L15-30P |
| Receptacle Type | IEC 60320 C13, IEC 60320 C19 |
| Receptacle Detail | 18 x IEC 60320 C13, 6 x IEC 60320 C19 |
| Features | Onboard Display |
| Load Capacity (Watt) | 8600 W |
| Interfaces/Ports | Network (RJ-45) | Yes |
| Environmental Conditions | Minimum Operating Temperature | 50°F (10°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | 24.8°F (-4°C) |
| Maximum Storage Temperature | 284°F (140°C) |
| Management | Management | SNMP |
| Power Description | Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Power Rating (Watt) | 8600 W |
| Input Current | 30 A |
| Input Frequency | 60 Hz |
| Physical Characteristics | Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 40U |
| Cord Length | 10 ft |
| Height | 69″ |
| Width | 2″ |
| Depth | 2.1″ |
