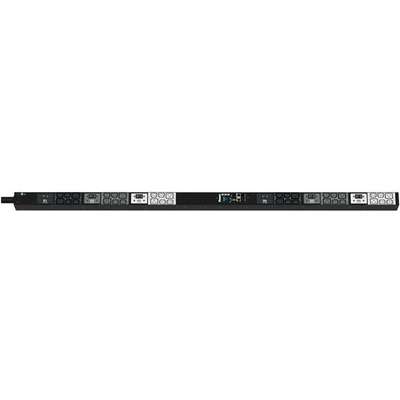

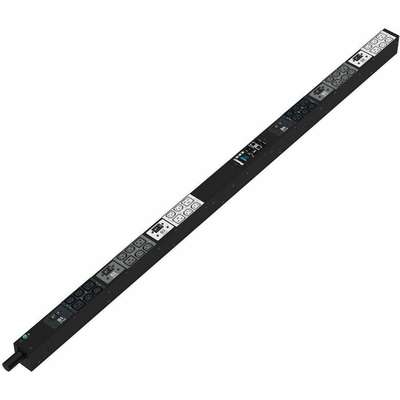

 The Panduit™ G6 Monitored & Switched per Outlet PDU features (24) C13 and (12) C19 outlets. It is a 60 amp, 208 V, 3 phase PDU with a IEC 60309 3P+E 9h (IP44) input plug and a 10 foot (3m) power cord. The PDU is black. |
| Category | Attribute | Value |
|---|
| General Information | Product Name | G6 Mspopdu 60A IEC TF Black PK1 |
| Manufacturer Part Number | P36G31G |
| Product Series | G6 |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | PDU Type | Monitored, Switched, Switched Outlet Monitored |
| Phase | Three Phase |
| Plug / Connector Type | IEC 60309 3P+E 9H 60A (IP44) |
| Receptacle Type | IEC 60320 C13, IEC 60320 C19 |
| Receptacle Detail | 24 x IEC 60320 C13 12 x IEC 60320 C19 |
| Features | Onboard Display |
| Interfaces/Ports | Network (RJ-45) | Yes |
| Environmental Conditions | Minimum Operating Temperature | 50°F (10°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | 284°F (140°C) (likely reversed, see note) |
| Maximum Storage Temperature | 24.8°F (-4°C) (likely reversed, see note) |
| Power Description | Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Current | 60 A |
| Input Frequency | 60 Hz |
| Physical Characteristics | Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 38U |
| Cord Length | 10 ft |
| Height | 66″ |
| Width | 2.3″ |
| Depth | 2.9″ |
