Panduit MS PDU 60A (21) C13/C15 (21) C13/C15/C19/C21 IEC60309 3P+E 9H 60A IP44-3M Top Fed BL

Add to Wishlist

AED25,199.00

Add to Wishlist

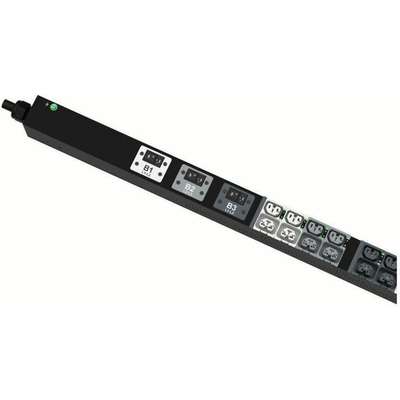

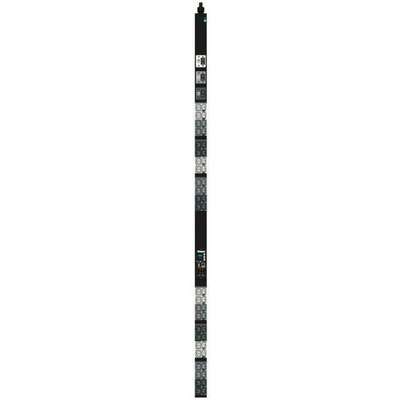

The SmartZone™ G5 Monitored Switched PDU features (21)C13/C15, (21)C13/15/C19/C21 outlets. This PDU is designed with combination outlets which allows the receptacle to be used as an C13/C15/C19 or C21 outlet. It is a 60 amp 208V three phase PDU with an IEC 60309 3P+E 9h 60A (IP44) input plug and a 10 foot (3m) power cord. The PDU is black.
SKU: P42E24M Category: Tag:
Category Attribute Value
General Information Product Name MS PDU 60A (21) C13/C15 (21) C13/C15/C19/C21 IEC60309 3P+E 9H 60A IP44-3M Top Fed BL
Manufacturer Part Number P42E24M
Product Line SmartZone
Product Series G5
Product Family SmartZone G5
Packaged Quantity 1
Product Type PDU
Technical Information PDU Type Monitored, Switched
Phase Three Phase
Plug / Connector Type IEC 60309 3P+E 9H 60A (IP44)
Receptacle Type IEC 60320 C13/C15, IEC 60320 C13/C15/C19/C21
Receptacle Detail 21 x IEC 60320 C13/C15
21 x IEC 60320 C13/C15/C19/C21
Environmental Conditions Maximum Operating Temperature 140°F (60°C)
Power Description Input Voltage 230 V AC
Output Voltage 208 V AC
Power Rating (Watt) 17.30 kW
Input Current 60 A
Physical Characteristics Color Family Black
Product Color Black
Mounting Orientation Vertical
Mount Type Rack-mountable
Cord Length 10 ft
Height 72″
Width 2.2″
Depth 3″
Other Information Certifications & Standards UL Listed
