04 3550600 052 7036860

Panduit MS PDU30A/32A (24) C13/C15 (24) C13/15/C19/C21 IEC 60309 3P+N+E 6H IP44-3M

Add to Wishlist

AED26,699.00

Add to Wishlist

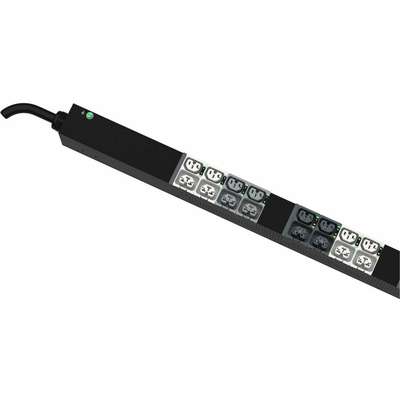

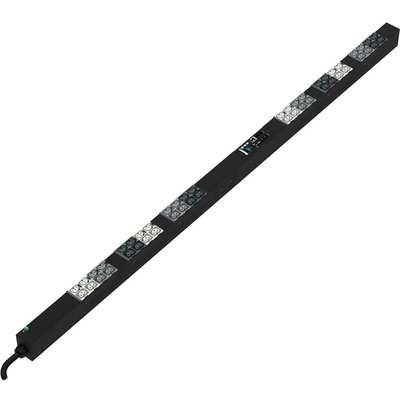

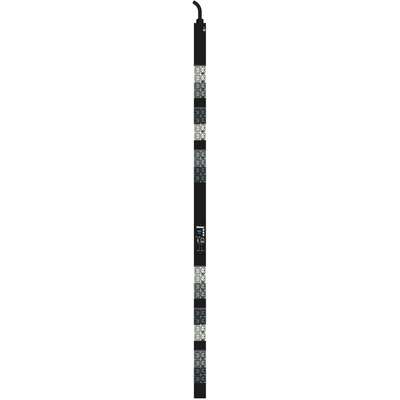

The SmartZone™ G5 Monitored Switched PDU features (24)C13/C15, (24)C13/15/C19/C21 outlets. This PDU is designed with combination outlets which allows the receptacle to be used as an C13/C15/C19 or C21 outlet. It is a Dual Rated 30/32 amp 415V three phase PDU with an IEC 60309 3P+N+E 6h 30A/32A (IP44) input plug and a 10 foot (3m) power cord. The PDU is black.

SKU: P48E20M Category: Tag:
Category Attribute Value
General Information Product Name MS PDU 30A/32A (24) C13/C15 (24) C13/15/C19/C21 IEC 60309 3P+N+E 6H IP44-3M
Manufacturer Part Number P48E20M
Product Line SmartZone
Product Series G5
Product Family SmartZone G5
Packaged Quantity 1
Product Type PDU
Technical Information PDU Type Switched Outlet Monitored
Phase Three Phase
Plug / Connector Type IEC 60309 3P + N + E (IP44)
Receptacle Type IEC 60320 C13/C15, IEC 60320 C13/C15/C19/C21
Receptacle Detail 24 x IEC 60320 C13/C15
24 x IEC 60320 C13/C15/C19/C21
Environmental Conditions Maximum Operating Temperature 140°F (60°C)
Power Description Input Voltage 415 V AC
Output Voltage 240 V AC
Power Rating (Watt) 22 kW
Input Current 32 A
Physical Characteristics Color Family Black
Product Color Black
Mounting Orientation Vertical
Mount Type Rack-mountable
Cord Length 10 ft
Height 70″
Width 2.2″
Depth 3″
