Tech overview
AED17,799.00

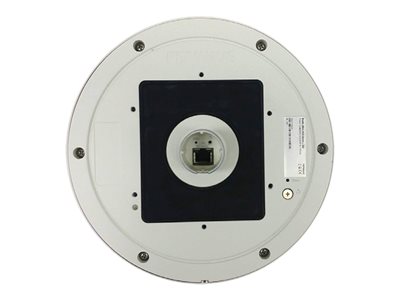

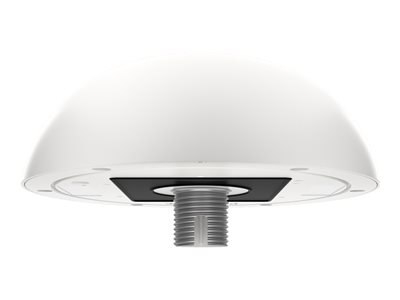

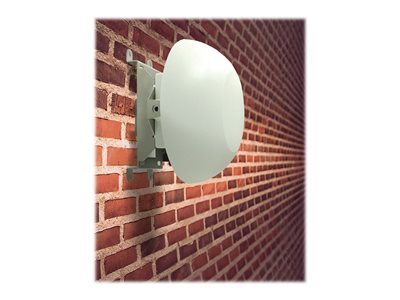

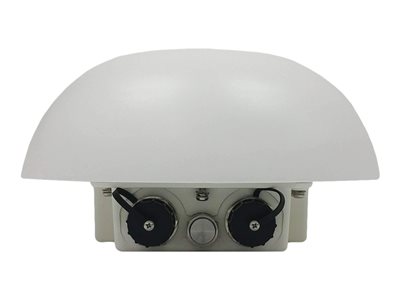

MAX HD2 Dome
Dual Cellular Router for Mobile Outdoor Deployments
The HD2 Dome provides dual-cellular Bandwidth Bonding in an IP67 enclosure that has a minimal profile on the rooftop while providing maximum signal. With redundant SIM, the HD2 Dome supports two cellular radios and four SIM cards. Combine the HD2 Dome with the SIM Injector, and the number of cards increases to twelve.
| Specifications |
|---|
| General |
| Device Type | Router |
| Enclosure Type | Wall-mountable, pole-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Capacity | Recommended users: 150 |
| Network / Transport Protocol | PPTP, PPPoE, DHCP |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, CLI |
| Authentication Method | RADIUS, LDAP |
| Features |
| DHCP support | Yes |
| NAT support | Yes |
| Load balancing | Yes |
| LDAP support | Yes |
| VLAN support | Yes |
| Syslog support | Yes |
| DoS attack prevention | Yes |
| IPv6 support | Yes |
| Virtual Route Redundancy Protocol (VRRP) support | Yes |
| RADIUS support | Yes |
| DHCP server | Yes |
| DNS proxy | Yes |
| PoE+ | Yes |
| Port forwarding | Yes |
| Reset button | Yes |
| 3G/4G USB Dongle Support | Yes |
| Rugged | Yes |
| VPN Server | Yes |
| Captive Portal | Yes |
| DHCP reservation | Yes |
| Advanced QoS | Yes |
| 2×2 MIMO technology | Yes |
| Outdoor enclosure | Yes |
| FirstNet ready | Yes |
| Compliant Standards |
| X.509 | Yes |
| IEEE 802.3at | Yes |
| FCC | Yes |
| RoHS | Yes |
| IP67 | Yes |
| EN 61000 | Yes |
| IEC 61373 | Yes |
| EN 61373 | Yes |
| EN 50155 | Yes |
| Built-in Devices |
| GPS | Yes |
| Communications |
| Type | 2 x wireless cellular modem |
| Digital Signaling Protocol | H.323, SIP |
| Cellular Protocol | WCDMA, HSPA+, DC-HSPA+, LTE Advanced, LTE Advanced Pro |
| Max Transfer Rate | 600 Mbps |
| Expansion / Connectivity |
| Interfaces | LAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 |
| Expansion Slots | 2 (total) / 2 (free) x SIM |
| Antenna | Internal |
| Power |
| Power Device | External power adapter |
| Power Consumption Operational | 20 Watt |
| Miscellaneous |
| Included Accessories | Network splitter, mounting kit |
| Localization | Americas |
| Dimensions & Weight |
| Width | 4.3 in |
| Depth | 4.3 in |
| Height | 4.5 in |
| Weight | 2.65 lbs |
