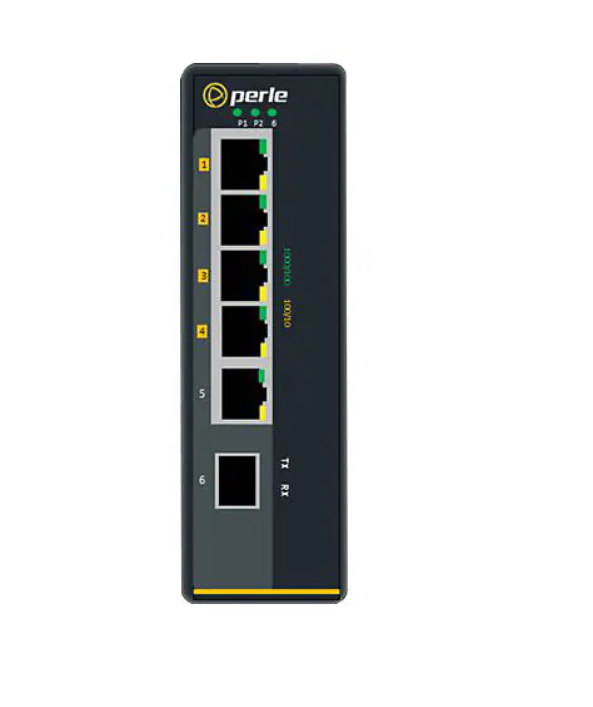

Perle IDS-105GPP-DSFP-XT – switch – 5 ports – unmanaged

Add to Wishlist

Quick tech specs

  • 105GPP-DSFP-XT
  • unmanaged
  • DIN rail mountable
  • DC power
  • Switch
  • 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 + 2 x SFP
  • PoE+

AED3,599.00

Add to Wishlist

Know your gear

SKU: 07011960 Category: Tag:
Category Attribute Value
Overview Brand Perle
Product Line Perle
Model IDS-105GPP-DSFP-XT
Manufacturer Perle Systems
Network & Communication Compliant Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Features Auto-negotiation, Auto-sensing per device, Auto-uplink (auto MDI/MDI-X), Energy Efficient Ethernet, Fanless, Flow control, Jumbo Frames support, PoE+, Store and forward
Form Factor (Hubs & Switches) DIN rail mountable
Jumbo Frame Support 10KB
MAC Address Table Size 8K entries
Manageable No
Ports 5
Power Over Ethernet (PoE) PoE+
Product Type Switch
Status Indicators Link/activity, Port transmission speed, Power
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Expansion Slots QSFP Slots SFP (mini-GBIC)
Connectivity Interface Provided 1 x 1000Base-T RJ-45, 2 x 1000Base-X SFP, 4 x 1000Base-T RJ-45 PoE+ – 30 W
Port Quantity 4
Port Type 10/100/1000 (PoE+)
Ports Type (2nd) 10/100/1000
Power Features Redundant Power System (RPS) connector
Technical Information Humidity Range Storage 5 – 95% (non-condensing)
Max Operating Temperature 167 degree Fahrenheit
Max Storage Temperature 185 degree Fahrenheit
Min Operating Temperature -40 degree Fahrenheit
Min Storage Temperature -40 degree Fahrenheit
Operating Humidity 5 – 90% (non-condensing)
Product Information Device Type Internal power supply
Packaged Quantity 1
Ports (2nd) Quantity 1
Ports (3rd) Quantity 2
Dimensions & Weight Height 5.4 inch
Weight 13.05 ounce
Width 1.4 inch
Depth 4.4 inch
Physical Characteristics Color Category Black
Certifications & Listings Compliant Standards ATEX Directive, CDRH, CISPR 22, CISPR 24, EN 55024:2010, EN 60825-1, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, FCC CFR47 Part 15 B, FDA, IEC 60950-1, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IP30, REACH, RoHS, UL 508, UL 60950-1, WEEE
ENERGY STAR Certified No
