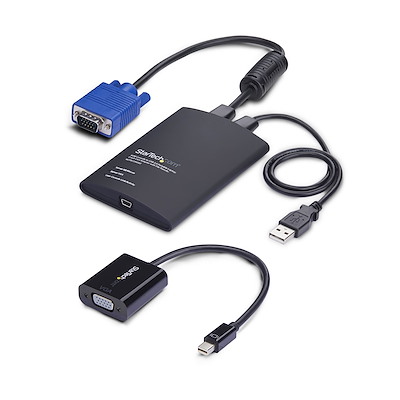

Portable Laptop Crash Cart Adapter, USB/VGA/Mini DisplayPort KVM Console, File Transfer and Video Capture, TAA Compliant
Turn a laptop into a portable console for rack servers, PCs, ATMs, kiosks, and more
- LAPTOP TO SERVER: TAA-compliant USB crash cart adapter connects a laptop to a headless system, rack server, PC, ATM, or kiosk, turning it into a portable console; Included Mini DisplayPort adapter adds flexibility for connecting to servers with VGA or mDP
- EFFICIENT TROUBLESHOOTING: Easily transfer files, capture screenshots, and log activity using the crash cart adapter software; For optimal performance, install the latest drivers making sure to download the drivers specifically for the NOTECONS02-VGA-MDP
- SELF-POWERED: KVM adapter is powered by the server-side USB connection, reducing strain on the laptop’s battery and eliminating the need for an AC outlet; Ideal for on-site work or tight server rooms where outlets aren’t always accessible
- COMPACT DESIGN: Lightweight, pocket-sized adapter provides direct system access without relying on a traditional crash cart setup, helping IT technicians perform maintenance without wheeling around a separate monitor, keyboard, and mouse
- BIOS-LEVEL CONTROL: Connect the crash cart adapter to your laptop using the included USB cable, then connect the integrated USB & VGA cables to your server for instant BIOS-level control; Note: Mouse function may be limited in some BIOS/UEFI environments
AED3,299.00
The USB crash cart adapter gives you control of a headless system, turning your laptop into a portable crash cart for rack servers, PCs, ATMs, kiosks, and more.
Instant System Access
Simply connect the laptop crash cart adapter to your computer using the included USB cable, then connect the integrated USB and VGA cables to your server for instant BIOS-level control. Use the included Mini DisplayPort adapter to connect to mDP-enabled computers or servers. With no server-side software required, you can be up and running instantly.
*Please note that the mouse function may be limited in some BIOS/UEFI environments
Troubleshoot More Efficiently
With the flexible software interface, you can transfer files from your laptop to the server, capture videos for records or instructional purposes, take screenshots and scale the display window to full screen mode or smaller, with no scroll bars helping you to troubleshoot faster.
Self-Powered Reliability
Powered from the server-side USB connection, the KVM adapter doesn’t require an AC outlet so you can connect to any PC that has a VGA or mDP output and USB connection, even if there’s no power outlet available.
Take It Anywhere
This pocket-sized adapter features a compact design that easily fits inside your laptop bag and requires no additional accessories to connect, eliminating the need to lug around a large, awkward traditional crash cart to troubleshoot and service your systems.
Applications
- ATM and VLT maintenance and repair
- Mobile systems and server repair
ā Portable USB Crash Cart Adapter with VGA & Mini DisplayPort Video Support
Model: NOTECONS02 + MDP2VGA2
Warranty: 2 Years
š Compatibility
| Operating Systems | Supported Versions |
|---|---|
| Windows | XP, Vista, 7, 8, 8.1, 10, 11 |
| Windows Server | 2008 R2, 2012, 2012 R2, 2016, 2019, 2022 |
| macOS | 10.9 to 10.15, 11.0 (Big Sur), 12.0 (Monterey), 13.0 (Ventura), 14.0 (Sonoma), 15.0 (Sequoia) |
| Linux | Kernel 2.6 and up (LTS versions only) |
ā ļø Linux support limited to QWERTY U.S. English keyboards. Mouse functionality may not work in BIOS/UEFI.
š ļø Specifications
š¦ Connector(s)
| Type | Ports |
|---|---|
| Console Interface(s) | 1 Ć USB Mini-B (5-pin) |
| Host Connectors | 1 Ć VGA (15-pin, HD D-Sub) 1 Ć USB 2.0 Type-A (480Mbps) |
| Other Interface(s) | 1 Ć Mini DisplayPort 1 Ć VGA (15-pin, HD D-Sub) |
š”ļø Environmental
| Feature | Value |
|---|---|
| Operating Temperature | 0Ā°C to 40Ā°C (32Ā°F to 104Ā°F) |
| Storage Temperature | -40Ā°C to 70Ā°C (-40Ā°F to 158Ā°F) |
| Humidity | Up to 80% RH |
āļø Hardware Features
| Feature | Value |
|---|---|
| Audio | No |
| KVM Ports | 1 |
| PC Interface | USB |
| PC Video Type | VGA |
| Number of Monitors Supported | 1 |
| Rack-Mountable | No |
| Cables Included | Yes |
| Daisy-Chain | No |
š Indicators (LED)
| LED Function | Description |
|---|---|
| Console/USB Link | 1 LED |
| Host Video Link (VGA) | 1 LED |
| Keyboard/Mouse USB Link | 1 LED |
š¦ Packaging Information
| Feature | Value |
|---|---|
| Package Height | 2.2 in [5.5 cm] |
| Package Length | 11.9 in [30.1 cm] |
| Package Width | 6.5 in [16.5 cm] |
| Shipping Weight | 12.6 oz [358 g] |
š Performance
| Feature | Value |
|---|---|
| On-Screen Display (OSD) | No |
| IP Control | No |
| Hot-Key Selection | No |
| Video Standard | DisplayPort 1.2 |
| Max Analog Resolution | 1920Ć1200 @ 60Hz |
| Max Number of Users | 1 |
š Physical Characteristics
| Feature | Specification |
|---|---|
| Color | Black |
| Material | Plastic |
| Product Weight | 7.0 oz [197 g] |
| Cable Lengths | VGA Host Cable: 11 in [290 mm] USB Host Cable: 15 in [385 mm] USB Console Cable: 6 ft [1.8 m] |
š Power
| Power Source | USB-Powered |
|---|
š„ Whatās in the Box
| Item | Quantity |
|---|---|
| NOTECONS02 | 1 |
| MDP2VGA2 Adapter | 1 |
| USB-A to USB Mini-B Cable | 1 |
| Quick-Start Guide | 1 |
