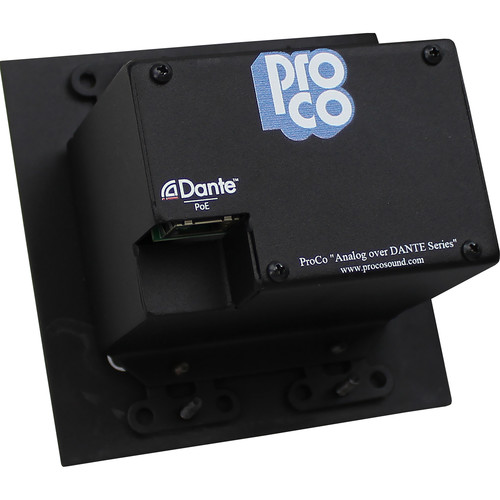

Pro Co Sound AoDDP-4XF 4-Channel Input Dante Wall Plate

Add to Wishlist
Key Features
  • Studio-Quality, Low-Latency Audio
  • 4 Line-Level Analog Input Channels
  • Neutrik Black XLR 3-Pin Connectors
  • Neutrik Locking etherCON Dante Port
  • AES67 Compliant
  • Powered via PoE
  • LED Indicators
  • Rugged Aluminum Construction
  • Fits in 2-Gang Deep Well J-Box

2,899.00 د.إ

Add to Wishlist

Add wall-mounted analog line-level inputs to your Dante audio network with the Pro Co Sound AoDDP-4XF, a Dante wall plate offering four inputs on Neutrik locking XLR 3-pin female connectors. AES67-compliant Dante connectivity is provided through a Neutrik locking etherCON port, which also allows the wall plate to be powered by PoE. The AoDDP-4XF boasts rugged aluminum construction and simple installation; attach it to a wall via the four front-panel screw holes or fit it in a 2-gang deep well J-Box. LEDs indicate system status, device function, and more.

Analog Connectivity
  • Neutrik black XLR audio connectors
  • Four channels of analog line-level audio
  • Four inputs on locking XLR 3-pin female connectors
Dante Networked Audio
  • Rear-panel Neutrik locking etherCON provides Dante audio interface
  • AES67 compliant
  • Studio-quality, low-latency audio
LED Indicators
  • LED indicators display Dante system status and identify device function
  • Front-panel LEDs provide “Locate” indicators after installation
Simple Installation
  • Rugged aluminum wall plate and backing box
  • Four front-panel screw holes for easy installation
  • Fits inside a standard 2-gang deep well J-Box
  • Power directly from a PoE switch
SKU: AODDP-4XF Category: Tag:
Channels
4 Inputs
Analog Signal
Line Level
Analog I/O
4 x Neutrik XLR 3-Pin Female Inputs (Locking)
Dante Connection
1 x Neutrik etherCON Female (Locking)
Digital Audio
AES67 Compliant
Power Requirement
PoE
Construction Material
Aluminum
Installation
4 x Front-Panel Screw Holes
Fits in 2-Gang Deep Well J-Box
Dimensions
Not Specified by Manufacturer
Weight
Not Specified by Manufacturer
Packaging Info
Package Weight
1.095 lb
Box Dimensions (LxWxH)
8.9 x 5.9 x 3.7″
