KVM Switches

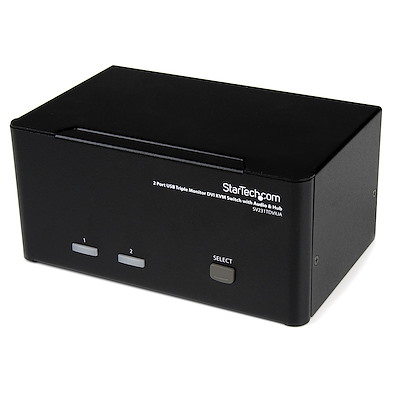

2 Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub – TAA
Switch between two triple head computers, while sharing three DVI displays, speakers & mic, USB Keyboard/Mouse, and USB 2.0 peripherals
- Switch 3 monitors and peripherals between 2 PCs
- Supports high definition DVI resolutions on 3 monitors each up to 1920×1200
- Switch Audio devices independently
- Supports front panel push button and hot-key functions for computer selection
- OS independent; No software or drivers required
- All metal chassis for long-term durability
- Hub port supports High speed USB 2.0 devices
- HDCP compliant
AED2,499.00
PLEASE NOTE: While the DVI connector on this KVM is DVI-I, the KVM only supports single-link DVI-D (digital only) video sources. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to console connections.
Applications
- Switch three displays, mouse, keyboard, speakers, microphone, and one USB peripheral between two PCs
- Graphic design and Multimedia production applications
- Great for CAD/CAM operators using multiple monitor systems
- Financial/banking and Trading work stations, with multiple monitors
- High resolution medical imaging with multiple displays
ā Compatibility
| Feature | Description |
|---|---|
| OS Compatibility | OS Independent |
| Software Requirement | No software or drivers required |
š Connector(s)
| Type | Details |
|---|---|
| Console Interface(s) | 2 Ć 3.5 mm Mini-Jack (3 Position) 3 Ć DVI-I (29 pin) 4 Ć USB 2.0 Type-A (4 pin, 480Mbps) |
| Host Connectors | 2 Ć USB B (4 pin) 4 Ć 3.5 mm Mini-Jack (3 Position) 6 Ć DVI-I (29 pin) |
š”ļø Environmental
| Feature | Value |
|---|---|
| Operating Temperature | 0Ā°C to 40Ā°C (32Ā°F to 104Ā°F) |
| Storage Temperature | -10Ā°C to 60Ā°C (14Ā°F to 140Ā°F) |
| Humidity | 0% ~ 80% RH |
āļø Hardware
| Feature | Details |
|---|---|
| Audio | Yes |
| KVM Ports | 2 |
| PC Interface | USB |
| PC Video Type | DVI |
| Number of Monitors | 3 |
| Rack-Mountable | No |
| Cables Included | No |
| Daisy-Chain Support | No |
š” Indicators
| Indicator Type | Description |
|---|---|
| LED | 2 Ć Orange – PC Online 2 Ć Green – Active PC |
š¦ Packaging Information
| Feature | Value |
|---|---|
| Package Height | 3.8 in [9.6 cm] |
| Package Length | 9.4 in [24.0 cm] |
| Package Width | 7.3 in [18.6 cm] |
| Shipping Weight | 3.0 lb [1.4 kg] |
| Package Quantity | 1 |
š Performance
| Feature | Value |
|---|---|
| On-Screen Display (OSD) | No |
| DVI Support | Yes (Single-Link DVI-D only) |
| IP Control | No |
| Hot-Key Selection | Yes |
| Maximum Digital Resolutions | 1920 Ć 1200 |
| Wide Screen Supported | Yes |
| Auto Scan | 3, 8, 15 & 30 seconds |
| Maximum Number of Users | 1 |
| Port Selection Support | Push Button and Hotkeys |
| MTBF | 62,000 hours |
š§± Physical Characteristics
| Feature | Value |
|---|---|
| Color | Black |
| Material | Steel |
| Product Length | 0.0 in [0.0 mm] (likely placeholder) |
| Product Width | 6.3 in [15.9 cm] |
| Product Height | 2.9 in [7.4 cm] |
| Product Depth | 3.9 in [100 mm] |
| Weight of Product | 2.0 lb [0.9 kg] |
š Power
| Feature | Value |
|---|---|
| Power Source | AC Adapter Included |
| Input Voltage | 100 – 240 AC |
| Input Current | 0.8A |
| Output Voltage | 12V DC |
| Output Current | 1.5A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption | 18W |
š Special Notes / Requirements
| Note |
|---|
| While the DVI connector on this KVM is DVI-I, it supports single-link DVI-D (digital only) video sources. DVI-D cables are recommended for all connections. |

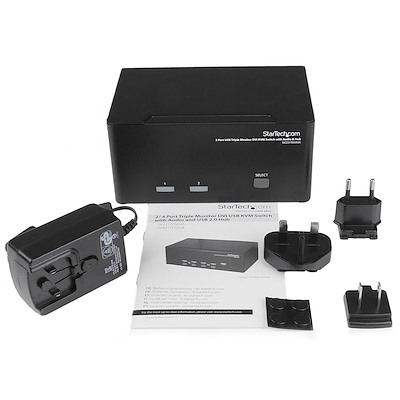

š¦ What’s in the Box
| Included Items |
|---|
| 1 Ć 2 Port Triple Display KVM |
| 4 Ć Rubber Foot Pads |
| 1 Ć Universal Power Adapter (NA/UK/EU) |
| 1 Ć User Manual |
