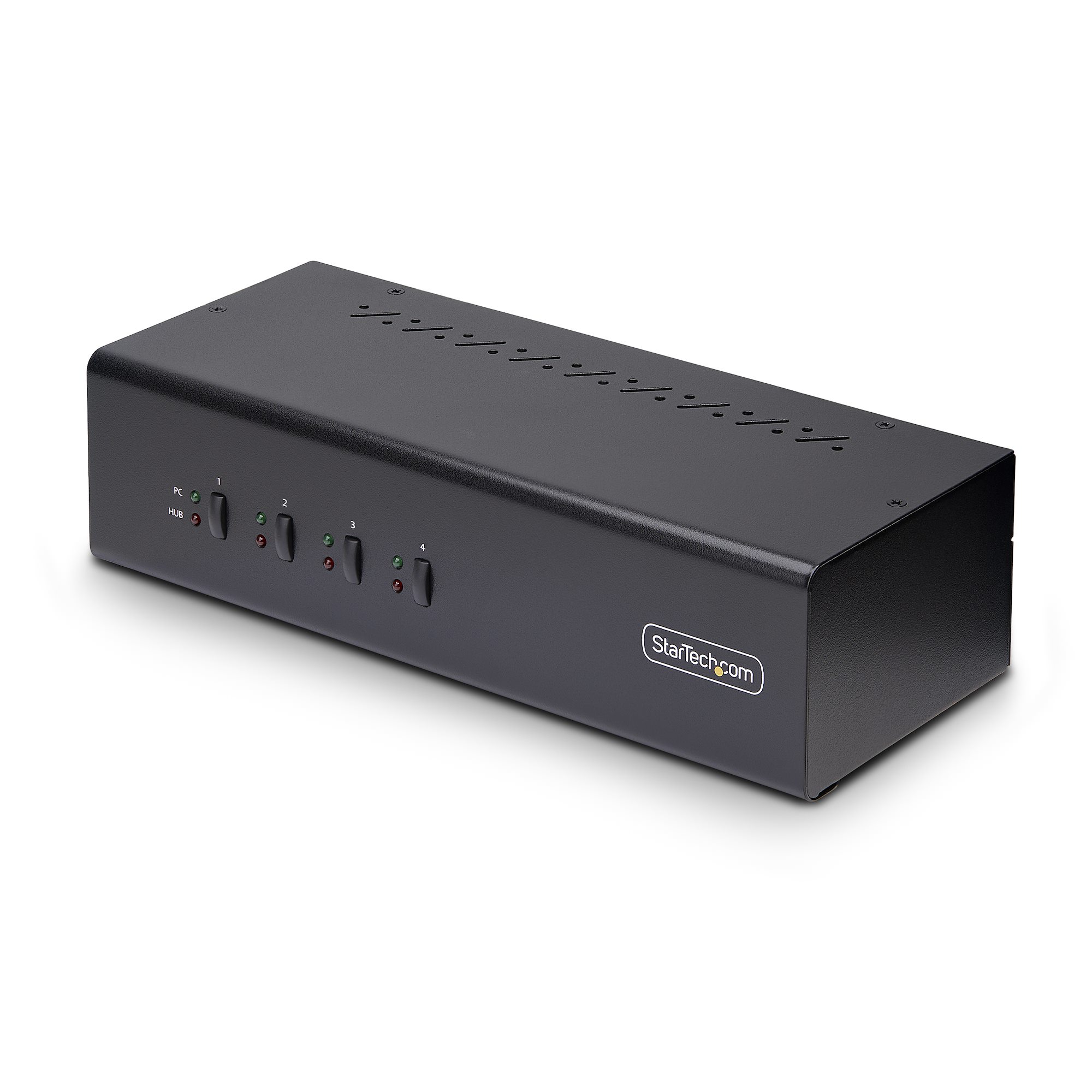

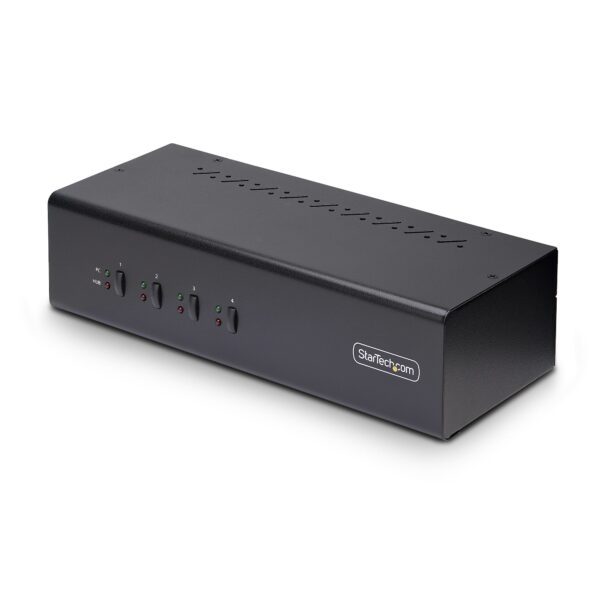

4-Port Dual-Monitor DisplayPort KVM Switch, 4K 60Hz, 2x USB 5Gbps Hub Ports, 2x USB 2.0 HID Ports, Hotkey and Push-Button Switching, TAA Compliant – 3.5mm Audio, HDCP

FAST SWITCHING: USB Emulation enables fast switching of a keyboard, video, and mouse between four DisplayPort/USB-A enabled desktops; USB Emulation ensures compatibility with combo keyboards/mice, as well as keyboards featuring additional function keys
DUAL 4K 60HZ & USB 5GBPS: TAA Compliant DisplayPort 1.2 KVM Switch supports up to two 4K 60Hz DisplayPort monitors with two USB 3.2 Gen 1 (5Gbps) Hub Ports and two USB 2.0 HID Ports; Ideal for CAD/CAM, video editing, and content creation applications
MULTIPLE SWITCHING OPTIONS: Universal KVM Switch can be controlled via push-buttons or hotkeys, with an audible buzzer providing confirmation; LEDs provide quick visual port selection status; Listen to audio from one computer, while controlling another
DURABLE DESIGN: A durable steel housing helps prevent Electro-Magnetic Interference (EMI), enhancing stability and reliability of the KVM; Sturdy construction makes it ideal for installation in a variety of environments; 8kV Air/6kV Contact ESD protection
OUR ADVANTAGE: Included connectivity tools for IT Pros and IT help-desk support teams with USB Event Monitoring for logging USB device connections with timestamps, and Windows Layout to restore windows locations upon switching hosts

AED4,999.00

This Dual-Monitor KVM Switch enables users to switch between four desktops that are USB-A and DisplayPort enabled. It allows for the sharing of dual-4K 60Hz DisplayPort monitors, a keyboard and mouse, and two USB 5Gbps devices.

Fast Switching with USB Emulation

USB Emulation technology enables faster switching of keyboard, video, and mouse compared to traditional KVMs. USB Emulation also ensures compatibility with combination keyboards/mice as well as keyboards featuring additional function keys.

Dual-4K 60Hz Displays & USB 5Gbps Hub Ports

This TAA-compliant KVM Switch supports dual-4K 60Hz DisplayPort monitors, making it ideal for working with high-resolution graphics or video. Additionally, it offers two USB 3.2 Gen 1 (5Gbps) Hub Ports for fast data transfer, and two USB 2.0 HID Ports for the keyboard and mouse. 8kV air and 6kV contact Electrostatic Discharge (ESD) protection.

Customizable Switching

This Universal KVM Switch provides various switching options, including hotkey or push-button switching. Hotkeys allow for independent switching of USB/Video and Audio, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.

Enhance Productivity and Device Management with the Connectivity Tools Application

Developed to improve performance and security, Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

Advanced Windows Layout Utility: Set up and save custom windows layouts.
MAC Address Pass-Through Utility: Improve network security.
USB Event Monitoring Utility: Track and log connected USB devices.
Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via a wired LAN.

For more information and to download the Connectivity Tools application,

Applications

Share dual displays, mouse, keyboard, and audio peripherals between four desktop computers
Great for CAD/CAM, video editing, and content creation applications

SKU: P4DD46A2-KVM-SWITCH Category: KVM Switches Tag: P4DD46A2-KVM-SWITCH

✅ Compatibility

Feature	Description
OS Independent	Yes
Drivers or Software	Not Required

🔌 Connectors

Console Interface(s)

Quantity	Type
2	DisplayPort
2	USB Type-A (9 pin, 5 Gbps)
2	USB 2.0 Type-A (4 pin, 480Mbps)
2	3.5mm Stereo Female (3 pos)
1	Barrel Power Connector (Size N, OD: 5.5, ID: 2.5)

Host Connectors

Quantity	Type
8	DisplayPort
4	USB 3.2 Type-B (9 pin, Gen 1, 5 Gbps)
8	3.5mm Stereo Female (3 pos)

🌡️ Environmental

Feature	Value
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity	0% ~ 90% RH (non-condensing)

⚙️ Hardware

Feature	Description
Audio	Yes
KVM Ports	4
PC Interface	USB 3.2 Gen 1 (5Gbps)
PC Video Type	DisplayPort
Number of Monitors	2
Rack-Mountable	No
Cables Included	No
Daisy-Chain Support	No

💡 Indicators

Indicator Type	Description
PC LED	4 – Solid Green (host connected), Blinking Green (no host)
Hub LED	4 – Solid Red (PC port selected)

📦 Packaging Information

Feature	Value
Package Quantity	1
Package Height	5.1 in [12.9 cm]
Package Length	13.1 in [33.2 cm]
Package Width	6.4 in [16.2 cm]
Shipping Weight	3.3 lb [1.5 kg]

🚀 Performance

Feature	Description
On-Screen Display	No
Video Revision	DisplayPort 1.2
IP Control	No
Hot-Key Selection	Yes
Max Data Transfer Rate	5Gbps
Max Cable Length	24.6 ft [7.5 m]
Max Digital Resolution	3840 x 2160 @ 60Hz
Supported Resolutions	3840×2160, 2560×1440, 1920×1200, 1920×1080
Auto Scan Options	10, 20, 30, 40, 50, 60 seconds
Port Selection Support	Push Button & Hotkeys
MTBF	103,062 Hours

🔊 Audio Specifications

Type	Channels
DisplayPort	2-Channel
Analog Stereo	2-Channel

🧱 Physical Characteristics

Feature	Value
Color	Black
Height	2.6 in [6.6 cm]
Length	10.0 in [25.3 cm]
Width	3.9 in [10.0 cm]
Weight	2.2 lb [1.0 kg]
Material	Steel

🔌 Power

Feature	Specification
Power Source	AC Adapter Included
Input Voltage	100 – 240 AC
Input Current	1 A
Output Voltage	12V DC
Output Current	3 A
Center Tip Polarity	Positive
Plug Type	N
Power Consumption	0.1 W

💻 Software

Feature	Description
OS Compatibility	No Drivers or Software Required

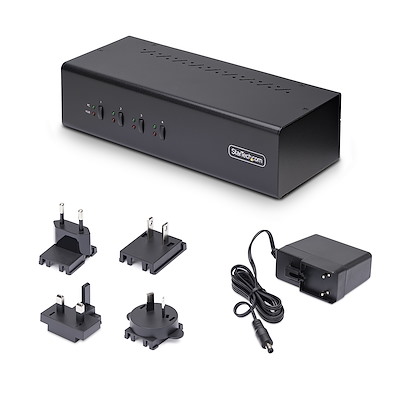

📦 What’s in the Box

Item	Quantity
KVM Switch	1
Universal Power Adapter	1
Quick-Start Guide	1
