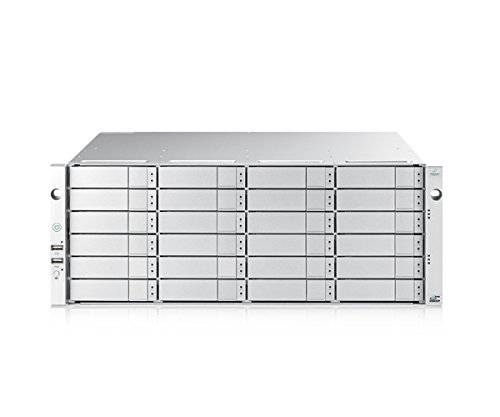

Promise Technology E5800FDNX 24-Bay Subsystem

Add to Wishlist

AED89,999.00

Add to Wishlist

Promise Technology E5800FD VTrak 5800f Series 4U 24-Bay Fibre/Fiber Channel to SAS / SATA Dual Controller RAID Subsystem Diskless – Brand New

Promise Technology E5800FD VTrak 5800f Series 4U 24-Bay Fibre/Fiber Channel to Serial Attached SCSI / Serial Attached Technology Attachment Dual Controller RAID Subsystem Diskless – Brand New

Model Number: E5800FDNX

VRrak E5000 Series
16Gb Fibre Channel to 12Gb SAS/SATA
High-Availability Storage System for Big Data

Affordable Enterprise-level Storage

  • Delivers an affordable high-performance Fibre Channel to SAS Storage solution with advanced enterprise level reliability and functionality.
  • Four 16Gb Fibre Channels ports and Two 12Gb SAS port (SFF-8644) per controller for connecting Host and Storage Expansion, respectively. Perfect for applications requiring huge bandwidth.
  • Redundant and Active-Active components of controllers, power supplies, and cooling units providing optimal data availability for any unforeseen circumstance.
  • Full featured Enterprise-level Storage System to accommodate any size of business environment.

IT/Data Center Ready

  • The ability to deploy 6/12 Gb SAS/SATA hard drives and SSDs in the E5000 Series.
  • Efficient power supplies provide up to 90% power efficiency that improves TCO by conserving power, reducing heat output and improving cooling costs.
  • Flash arrays enable optimized speed for key enterprise applications that need High-speed transfer rate and reduced latency.
  • Intel multi-cores processors allows saturation of line rate speeds for both 16Gb Fibre Channel Front-end and 12Gb SAS Backend interfaces.
  • Delivers high capacity for archiving and backup
  • Transport feature allows portability to move and/or store Petabytes from one location to another with data intact

Virtualization Ready

  • Ready to confront any challenge in today’s virtualized IT environment, the VTrak E5000 Series is certified with VMware vSphere, Citrix XenServer, Microsoft Hyper-V, Veeam, and DataCore SANsymphony.
  • Virtualization enables dynamic storage allocations such that physical layers of storage can be utilized most effectively. As virtual machines continue to increase with more virtualized deployments, 16Gb Fibre Channel performance delivers the faster bandwidth needed for growing infrastructures.

Benefits

  • High-performance, high-bandwidth allowing more than 12.8 GB/s aggregate transfer rate
  • High-Availability provides assurance of continuous operation
  • ctive-Active Dual Controller with ALUA for performance and access flexibility
  • 80 PLUS GOLD certified PSUs, Deliver power efficiency, and Energy Star Ready
  • Advanced diagnostics and reporting with persistent error log
  • Virtualization Ready
  • Support massive capacity by cascading up to 9 J5000 12Gb or SAS/SATA JBOD Storage Expansions

Tech Highlights

  • Quad 16 Gb FC ports per Controller provides maximum bandwidth
  • 12 Gb SAS backend storage interface to support the fastest HDD/SSD
  • Backward compatible to 8 Gb and 4 Gb on Fibre Channel interface, and to 6 Gb on SAS/SATA interface
  • Conveniently accessible persistent error logging and HTML formatted Service Report
  • Online Capacity Expansion allows Volume size to grow with ease
  • Software Updates without disrupting operation
  • Background Data Integrity Checking and Parity Rebuild
  • Predictive Data Migration (PDM) minimizes maintenance requirement
SKU: E5800FDNX Category: Tags: ,
Weight 24.8 kg
VTrak E5000 Series
Model Number E5800FDNX
Series E5800f
Drive Support Up to 24 3.5″ drives

  • 6/12 Gb SAS, 6 Gb SATA HDD and SSD
  • Supports any mix of SAS and SATA drives simultaneously in the same enclosure
Drives Diskless
External I/O Ports Each SBB2.0 RAID Controller has four 16 Gb FC SFP ports for Host interface and two 12 Gb SAS standard Mini SAS HD ports (SFF-8644) for Storage Expansion, RJ45 1Gb Ethernet and RS232 for Management ports
OPERATIONAL FEATURES
Raid Levels 0, 1, 5, 6, 10, 50, 60
Raid Stripe Size Support 6kK, 128K, 256K, 512K and 1MB
Hot Spares Global or deducated with revertible option
Max LUNs per Subsystem 1024100
Max Luns per array 32
Advanced Storage Features
  • Advanced Cache Mirroring over PCIe Gen3
  • Simple, drag-and-drop LUN Masking and Mapping
  • Asymmetric LUN Unit Access (ALUA)
  • Volume Copy
  • PerfectFlash – Non-Disruptive Software Update
  • I/O performance & power monitoring tools
  • USB Service Log
  • LDAP Support for central user management
Background Activities
  • Media Patrol
  • Background Synchronization
  • Foreground Initialization
  • Rebuild
  • Redundancy Check
  • Disk SMART Polling
  • Online Capacity Expansion (OCE)
  • RAID Level Migration (RLM)
  • UPS Monitoring
  • Feature rich task scheduler for background activities
PerfectRAID Features
  • Predictive Data Migration (PDM)
  • Intelligent Bad Sector Remapping
  • SMART Error Handling
  • NVRAM Error Logging
  • Disk Slot Power Control
  • Read/Write Check Table
  • Write Hole Table
GreenRAID Features
  • Four levels of advanced power management disk drive (MAID) support
  • Efficient 80Plus Certified power supplies
SYSTEM MANAGEMENT
Management Interfaces
  • Web Based management using WebPAM PROe (Ethernet)
  • Command Line Interface (CLI) or Command Line Utility (Serial Port or Ethernet via Telnet, SSH)
  • Third Party Management Support via SNMP, CIM
Supported OSs Windows Server 2008, 2012, OS X 10.x, RHEL 6.5, 6.6, 6.7, and 7.2, SLES 11, 11 SP4, and 12 SP1
Software Certification VMware ESXi 6.0, VEEAM Backup & Replication 9.0, Citrix Server 7.0, Data Core SANSymphony 10.0 PSP6, Windows, Arcserve UDP v6.0.3792 Update 3 Build 776, XSAN 5, StorNext v5.3
MECHANICAL SPECIFICATIONS
Voltage 100–240 Vac Auto–Ranging
Current (Maximum) 9A @ 100 Vac; 4A @ 240 Vac
Power Conversion Efficiency >80% @ 110V (>20% load), >80% @ 240V (>20% load) Temperature Range
Temperature Range Operational: 5° to 35°C

Non-Operational: -40° to 60°C
Humidity Operational: 20% to 80% (Non-Condensing)

Non–Operational: ~ 95% (Non-Condensing)
Acoustic Noise Levels < 60dB, 25C
Shock Operational: 5G, 11 ms duration

Non-Operational: 30G, 11ms duration
Vibration Operational: 0.2G, 5 to 500Hz (sine wave) ; 0.41G, 3-10-200-500Hz (Random)

Non-Operational: 1G, 5 to 500Hz (sine wave) ; 2.256G, 5-80-350-500Hz (Random)
Safety and Emission Certification EMC Class A: CE, FCC, VCCI, BSMI, RCM

Safety: IEEE CB, UL/cUL and TUV
Environmental Standards RoHS, GreenPC, WEEE
Power Supply Efficient 80PLUS GOLD Certified redundant PSU
Dimensions (H x W x D) 174.4mm x 446.7mm x 507mm

(6.87” x 17.6” x 19.96”)
Weight 24.8Kg(54.7 lbs) w/o drives

40.5Kg (89.2 lbs) w/ drives
