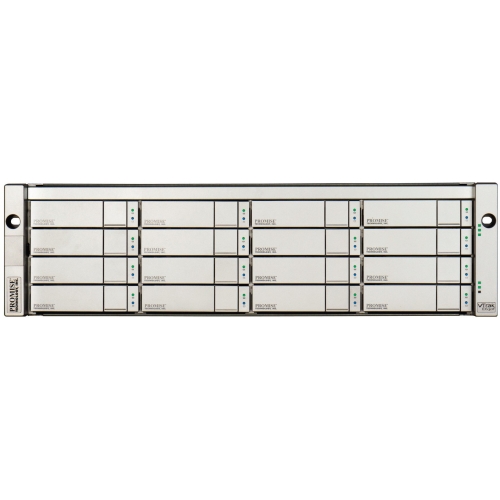

Promise Technology J630SDQS2 JBOD Expansion Chassis

Add to Wishlist

AED74,999.00

Add to Wishlist

Promise Technology VTrak J630SDQS2 J630s Series 3U 32TB SAS JBOD DAS Expansion Chassis Storage Array w/ HDDs – Brand New

Promise Technology VTrak J630SDQS2 J630s Series 3U 32TB SAS Dual-Controller JBOD Direct Attached Storage Expansion Chassis Storage Array with HDDs – Brand New

This storage array includes 16x 2TB 7200 RPM SAS hard drives.

Features

  • 3U/16 form factor featuring hot-swappable drive bays in SBB 2.0 package
  • Supports 6G and 3G SAS and SATA drives simultaneously
  • Dual active/active SAS JBOD I/O modules
  • Provides up to 90% power efficiency
  • Multi-ported, multi-lane 6G mini SAS (4x) ports provide large bandwidth capabilities
  • Redundant, hot-swappable Field Replaceable Units (FRUs)
  • SES-2 compliant enclosure management
  • Compatible with leading SAS/SATA drives, HBAs and RAID controllers
SKU: J630SDQS2 Category: Tags: ,
Weight 41.27 kg
Specifcations
Form Factor 3U 16-bay
Model # Dual Controller Dual I/O (J630sD)
Drives Included 16x 2TB 7200 RPM SAS hard drives
Drive Support Up to 16 3.5ā€/2.5ā€ HDDs or SSDs (Please refer to compatibility list at www.promise.com)
NL-SAS 7200 RPM: 6 Gbps, 3Gbps / SATA: 6Gbps, 3Gbps and 1.5Gbps / SSD
External I/O Ports (per controller) Each SBB 2.0 I/O module has two SAS ports using industry standard Mini SAS 4x wide-port-SAS connectors (SFF-8088), one IN and one OUT for cascading JBODs
I/O Module Features Self-configuring expander supports full SAS domain topology management
SMP ā€“ SAS Management Protocol
In-band access to Expander and PHY information
Statistic counters and performance monitors
SES EM ā€“ SES Enclosure Management (ANSI T10 SES 2 Compliant)
SCSI SES command set over virtual SSP device
Management Interfaces LED status indicator support for drives, FRU and enclosure environmentals
In-band SES enclosure management alerts user to out of spec operation: thermal condition, voltage condition or component failures, protecting data and hardware
Full subsystem management CLI through out-of-band RS232 serial port
Enclosure Management Protocols SES over in-band SAS
Voltage 100-240 Vac Auto-Ranging
Current (Maximum) 15A @ 110 VAC; 6A @ 240 VAC
Power Conversion Efficiency >80% @ 110V (>20% load), >80% @ 240V (>20% load)
Temperature Operational: 5Ā° to 40Ā°C
Non-Operational: -40Ā° to 60Ā°C
Humidity Operational: 10% to 90% (Non-Condensing)
Non-Operational: 5% to 95% (Non-Condensing)
Acoustic Noise Levels 55 dB (Typical), 65 dB (Maximum)
Shock Operational: 5G, 11ms duration
Non-Operational: 10G, 11ms duration
Vibration Operational: 0.3G, 5 to 500 Hz
Non-Operational: 1G, 5 to 500 Hz
