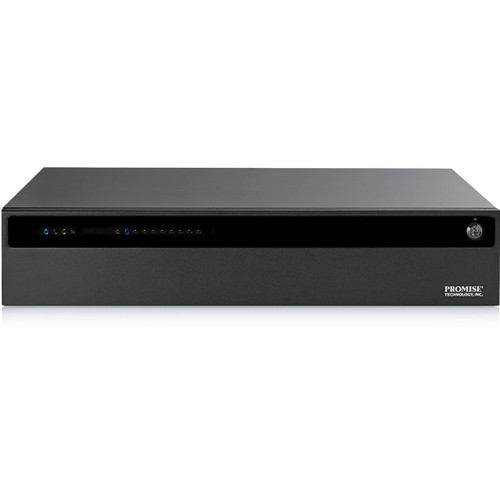

Promise Technology Vess A3340 16TB 8-Bay NVR (8 x 2TB)

Add to Wishlist

The Vess A3340 16TB 8-Bay NVR from Promise Technology is built to offer high levels of performance for IP video surveillance and is well-suited for mid-sized video surveillance installations. It supports up to 80 IP cameras, is powered by an Intel Xeon E3 processor and 8GB of DDR4 RAM, and has a capacity of 16TB that is split over eight 2TB SATA 3.5″ hard drives, each of which utilizes one of the NVR’s eight drive bays. A 64GB M.2 SSD is built-in and hosts the operating system, and there are also two Gigabit Ethernet ports, six USB 3.0 ports, two USB 2.0 ports, DisplayPort, HDMI and VGA video outputs, one RS-232 serial port, one PCIe 3.0 x8 slot, one PCIe 3.0 x4 slot, and support for RAID 0, 1, 1E, 3, 5, 6, 10 (0+1), 30, and 50. For those who wish to increase the storage capacity of this NVR, expansion is possible through iSCSI and multiple JBOD expansion enclosures. The supported operating systems are 64-bit editions of Windows Embedded Standard 7 Runtime (WS7P), Windows 10, and Windows Server 2012 R2 Standard. This NVR is powered by an internal 350W power supply that runs using 100~240 VAC at 50-60 Hz and includes a power cord.

30,875.00 د.إ

Add to Wishlist

Promise Technology A3340 External HDD Overview

The Vess A3340 16TB 8-Bay NVR from Promise Technology is built to offer high levels of performance for IP video surveillance and is well-suited for mid-sized video surveillance installations. It supports up to 80 IP cameras, is powered by an Intel Xeon E3 processor and 8GB of DDR4 RAM, and has a capacity of 16TB that is split over eight 2TB SATA 3.5″ hard drives, each of which utilizes one of the NVR’s eight drive bays. A 64GB M.2 SSD is built-in and hosts the operating system, and there are also two Gigabit Ethernet ports, six USB 3.0 ports, two USB 2.0 ports, DisplayPort, HDMI and VGA video outputs, one RS-232 serial port, one PCIe 3.0 x8 slot, one PCIe 3.0 x4 slot, and support for RAID 0, 1, 1E, 3, 5, 6, 10 (0+1), 30, and 50. For those who wish to increase the storage capacity of this NVR, expansion is possible through iSCSI and multiple JBOD expansion enclosures. The supported operating systems are 64-bit editions of Windows Embedded Standard 7 Runtime (WS7P), Windows 10, and Windows Server 2012 R2 Standard. This NVR is powered by an internal 350W power supply that runs using 100~240 VAC at 50-60 Hz and includes a power cord.

General Features
Reduce Costs and Complexity
Vess NVR appliances reduce support and equipment costs because there is no separate RAID storage unit to manage, eliminating the need for a server, controller cards, external cables, and a separate storage enclosure. Additionally, Vess NVR appliances reduce interoperability conflicts caused when integrating different hardware.
Certified By Surveillance Partners
Vess NVR appliances are compatible with a range of IP cameras and VMS from vendors including Aimetis, Axxonsoft, CamIQ, CSVi, Digifort, Genetec, OnSSI, SeeTec, Sony, and Milestone.
Integrated with Smooth Scalability
An SDK library is provided for VMS UI and management integration. Plus, Vess supports the Milestone VMS plug-in enabling it to be managed via the XProtect interface. Additionally, you can easily expand via iSCSI by adding Promise external storage.
SmartBoost Technologies
A collection of unique features designed to provide a high level of service and overcome performance bottlenecks to allow Vess NVRs to handle a higher number of IP cameras.

Predictive Playback – utilizes idle recording times to monitor read patterns to predict where the next playback will be needed so the hard disk drives are not competing with the workload of the system.

Remote Active Service – proactively detects when the PSU, controllers, or HDDs are going into critical condition and automatically notifies Promise support so the customer can be contacted, spare parts can be sent out, or the unit can be powered up after an outage. All of these are vitally important in environments that cannot risk downtime.

Sequential Pattern Recording – eliminates heavy workloads caused by random write patterns by monitoring recording patterns, collecting data in the cache buffer, and only writing data to the drive once a full stripe is ready. This creates a sequential recording pattern which offers smooth performance.

Simplified Planning
With just a few clicks of the Promise online planning tool, you can get the whole picture of what you need for your project, including the NVR and storage requirements, how to configure the servers and storage, and see a topology of the interconnecting systems with the most popular and recommended settings.
SKU: A3340 16TB 8-Bay Category: Tag:

Promise Technology A3340 External HDD Specs

Computing
CPU Up to 2 GHz Quad-Core
Processor Intel Celeron J1900
Total Installed Memory 8 GB DDR4
# of RAID Controllers Single
Drives
Storage Capacity 16 TB
Included Drives 8 x 2 TB 3.5″ HDD + 1 x 64 GB M.2
Interface SATA
General
Number of Bays 8 x 3.5″
I/O 1 x RS-232
3 x 1/8″ / 3.5 mm
1 x TOSLINK
1 x DisplayPort
1 x HDMI
1 x VGA
6 x USB-A (USB 3.0 / 3.1/3.2 Gen 1 (5 Gb/s))
2 x USB-A (USB 2.0 (480 Mb/s))
2 x RJ45 (Gigabit Ethernet)
Form Factor Rackmount (2 RU)
RAID RAID 0, 1, 10, 1E, 3, 30, 5, 50, 6
Expansion Up to 112 Drives
PCI Expansion 1 x PCIe 3.0 (x8 Electrical)
1 x PCIe 3.0 (x4 Electrical)
Networking
Max LUN 256
Max Cameras Supported 80
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 2.5 A
Power Consumption 250 W
PSU Wattage 1 x 350 W
Environmental
Operating Temperature 41 to 104°F / 5 to 40°C
Storage Temperature -40 to 140°F / -40 to 60°C
Certifications BSMI, CE, FCC, RCM, UL, VCCI, cUL
*as per Manufacturer
Physical
Status Monitoring LED Indicator
Audible Alarm Yes
Dimensions 17.3 x 16.1 x 3.5″ / 439.4 x 408.9 x 88.9 mm
Weight 28.4 lb / 12.9 kg with Drives
