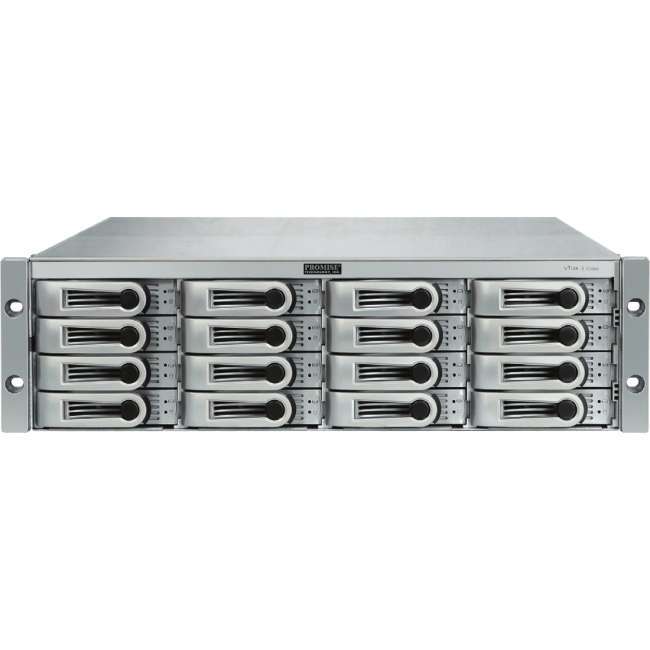

Promise Technology VTrak H1142VC/A Fiber Channel Subsystem Storage Array With Hard Drives
Interface Types: SAS Serial Attached SCSI, SATA, Fibre Channel – Internal – Arbitrated Loop ASA II
Form Factor: 3.5inx1.0in LFF Hard Drive
Electrical Interface: FC-AL – 4Gbps
On-Board Cache: 2GB
Bays/Ports/Slots: 16
U Height: 3U
Wattage/VA: 500W
Voltage: 110-240V Multi
89,999.00 د.إ
Promise Technology VTrak E610F Series H1142VC/A 3U 32TB Fibre / Fiber Channel SAN / NAS RAID Subsystem Storage Array w/ HDDs – Brand New
Promise Technology VTrak E610F Series H1142VC/A 3U 32TB (16 x 2TB) Fiber/Fibre Channel Dual-Controller SAN / NAS RAID Subsystem Storage Array with Hard Disk Drives – Brand New
Affordable Enterprise – Class Storage
The PROMISE VTrak E-Class RAID subsystem is a High Availability (HA) RAID solution developed to meet the needs of mission critical enterprise and power today’s demanding video workflows. At the heart of the PROMISE VTrak E-Class RAID subsystem is a mature RAID engine developed over the course of two decades and four generations of code that delivers cutting-edge performance and data integrity features rivaling any competitor.
Video Performance
VTrak E-Class truly shines in video environments by delivering consistent low latency performance without dropping frames. Used with Xsan in film and video postproduction, VTrak E-Class can help increase user productivity by providing scalable performance and massive capacity to support today’s demanding video workflows.
Data Center Performance
In a data center, where a single VTrak E-Class may serve multiple host computers simultaneously, it can deliver up to 1400MB/sec of proven read performance and 600MB/sec of write performance. Combined with Xsan, the solution can share multiple VTrak storage volumes over a high-speed Fibre Channel network providing for scalable performance as storage is added.
Expandability
The uncontrolled growth of data creation requires massive capacity. With the PROMISE Vtrak J-Class expansion chassis, VTrak E-Class can be expanded to support up to 80 total drives for a total of 160TB of raw capacity using the latest 2TB SATA hard disk drives.
Easy to Install and Manage
VTrak E-Class features Bonjour discovery and easy configuration through an embedded browser based management interface, WebPAM PROe, eliminating the need to install additional software. Simply open Safari, locate the unit you would like to manage, and in just a few minutes and less the ten clicks later, VTrak will up and running. The VTrak’s rich feature set also gives advanced users powerful tools to rapidly deploy multiple units tuned for applications like Xsan and Final Cut Studio.
World Class Support
Promise and Apple support organizations work together to solve problems. A shared support database allows support tickets to be escalated across organizations. Mutual service level agreements between Apple and Promise allow customers to install VTrak E-Class units with the confidence that any issues they encounter will be resolved quickly and easily.
VTrak E-Class Advantages
- Best in class price performance
- High availability design
- SAS/SATA drive support
- Scalability up to 80-bays totaling 160TB
- Qualified Solution for Mac OS, Xsan and Final Cut Pro
| System and Controller Features | |
|---|---|
| Model | H1142VC/A |
| Controllers | Dual Active/Active, RAID Controller with Failover/Failback |
| External I/O Ports (per controller) | Dual 4Gb Fibre Channel ports; One external 3Gb/s 4x wide SAS port for expansion |
| Data Cache | 2GB predictive data cache per controller with automatic write cache de-staging and 72-hour battery backup |
| Command Queue Depth | 1024 commands per VTrak system |
| Operational Features | |
| RAID Level |
|
| Hot spares | Multiple global or dedicated hot-spare drivers with revert options |
| Max LUNs per subsystem | 256 in any combination of RAID levels and array types |
| Max LUNs per array |
|
| Max LUN per Target ID | Up to 256, depending on host side driver and operating system |
| LUN Masking and Mapping | Supports multiple hosts |
| Operating Systems | Mac OS X, Mac OS x-Server, Windows 2003/2008, Fedora Core 9, Redhat Linuz, Suse Linux, VMware ESX Server v3.5/4.0 |
| Mechanical Specifications | |
| Voltage | 100-240 Vac Auto-Ranging |
| Current (Maximum) | 8 A @ 100 Vac; 4 A @ 240 Vac (current rating with two power cords) |
| Power Supply | Dual 500W, 100-240 Vac auto-ranging, 50-60 Hz, dual hot swap and redundant with PFC, N+1 design |
| Power Consumption | 108 Watts (w/o HDD), 524 Watts (under load with SAS HDD) |
| Operating Temperature/Humidity | 5°~40°C (-40°~60°C non-operational) / Maximum 95% |
| Vibration | Random, 0.21 grms, 5-500HZ, X, Y, Z axis |
| Dimensions (H x W x D) | 13.1 x 44.65 x 56.1 cm (5.2 x 17.6 x 22.1 in) |
| Weight | Net weight: 38.5 kg (84.9 lbs) with 16 SATA drives |
| Safety | CE, FCC ClassA, VCCI, cUL, TUV, CB, BSMI, C-Tick, MIC |
