Promise Technology VTrak J930SDQS4 240TB Expansion Chassis

Add to Wishlist

364,999.00 د.إ

Add to Wishlist

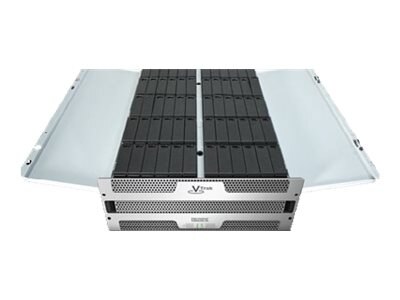

Promise Technology VTrak J930s Series J930SDQS4 4U 240TB SAS JBOD DAS Expansion Chassis Storage Array w/ HDDs – Brand New

Promise Technology VTrak J930s Series J930SDQS4 4U 240TB (60 x 4TB) Serial Attached SCSI Dual-Controller JBOD DAS Expansion Chassis Storage Array with Hard Drives – Brand New

This Expansion Chassis includes 60x 4TB 7.2K NL-SAS hard drives.

Features

  • Ultra-dense 4U/60 form factor featuring hot-swappable drive bays in SBB 2.0 package
  • Supports 6G and 3G SAS and SATA drives simultaneously
  • Dual active/active SAS JBOD I/O modules
  • Provides up to 90% power efficiency
  • Multi-ported, multi-lane 6G mini SAS (4x) ports provide large bandwidth capabilities
  • Redundant, hot-swappable Field Replaceable Units (FRUs)
  • SES-2 compliant enclosure management
  • Compatible with leading SAS/SATA drives, HBAs and RAID controllers
SKU: J930SDQS4 Category: Tags: ,
Weight 111.13 kg
VTrak x30 Configurations
Part Number J930SDQS4
Form Factor Ultra-dense 4U 60-bay
Drives Included 60x 4TB 7200 RPM NL-SAS hard drives
Drive Support Up to 60 3.5″/2.5″ HDDs or SSDs (Please refer to compatibility list at www.promise.com)
NL-SAS 7200 RPM: 6Gbps, 3Gbps / SATA: 6Gbps, 3Gbps, and 1.5Gbps / SSD
External I/O Port (per controller) Each I/O module has four 6G SAS ports using industry standard Mini SAS 4x wideport-SAS connectors (SFF-8088)
I/O Module Features ANSI T10 SAS 2.0 Compliant
Self-configuring expander supports full SAS domain topology management
Auto-negotiate data path speeds
In-band management
Redundant cable support
Enclosure Management Protocols SES over in-band SAS
Voltage 90/264V, 47-63Hz auto ranging
Current (Maximum) 14.5A RMS max @ 110 VAC
Power Conversion Efficiency
  • 20% load @ 115V ~ 87%, 50% load @ 115V ~ 90%
  • 20% load @ 230V ~ 88%, 50% load @ 230V ~ 92%
Temperature
  • Operational: 10° to 35° C, temperature gradient 20°C per hour
  • Non-Operational: -40° to 70°C
Humidity
  • Operational: 10% to 80% (NonCondensing), humidity gradient 10°C per hour
  • Non-Operational: 5% to 95% (Non-Condensing)
Acoustic Noise Levels 55 dB (Typical), 65 dB (Maximum)
Shock
  • Operational: 5G, 11ms duration, 1/2 sine wave pulse
  • Non-Operational: 10G, 11ms duration, 1/2 sine pulse wave
Vibration
  • Operational: 0.15G
  • Non-Operational: 0.5G, 5 to 500 Hz
Safety IEC/EN/UL/CSA 60950-1, 2nd edition
Environment Standards/td> RoHS, WEEE Compliant
