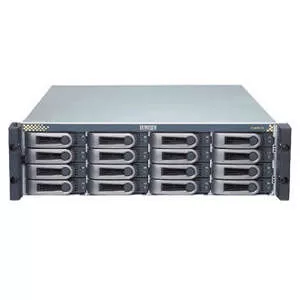

PROMISE VTE610FS VTrak E-Class x10 Series Array Hard Drive
- Number of Total Expansion Bays: 16
- RAID Levels: 0, 1, 5, 6, 10, 50, 60, 1E
- Product Type: Hard Drive Array
- Condition: New
AED23,799.00
Promise VTrak E-Class is a intelligent, single controller, SAS/SATA based storage arrays that fundamentally changes storage economics from purchase and set up to operation and upgrades. Two 4Gb Fibre Channel SAN host interface ports provide a reliable, high-performance SAN based storage. Each standard 3U, 19 rack unit supports up to 16 off-the-shelf 3.5 SAS or SATA 3Gb/s drives. Attach up to four SAS JBODs to deliver 80 drive bays of direct attached storage.
| General Information | |
|---|---|
| Manufacturer | Promise Technology |
| Manufacturer Part Number | VTE610FS |
| Manufacturer Website Address | http://www.promise.com |
| Brand Name | Promise |
| Product Line | VTrak E-Class |
| Product Model | VTE610FS |
| Product Name | VTrak E-Class VTE610FS x10 Series Hard Drive Array |
| Product Type | Hard Drive Array |
| I/O Expansions | |
|---|---|
| Number Of Total Expansion Bays | 16 |
| Number Of 3.5″ Bays | 16 |
| Controllers | |
|---|---|
| Controller Type | Serial ATA/300, Serial Attached SCSI (SAS) |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, 1E |
| Interfaces/Ports | |
|---|---|
| Fibre Channel | Yes |
| Power Description | |
|---|---|
| Input Voltage | 110 V AC, 220 V AC |
| Number Of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1000 W |
| Redundant Power Supply | Yes |
| Physical Characteristics | |
|---|---|
| Height | 5.2″ |
| Width | 17.6″ |
| Depth | 22″ |
| Form Factor | Rack-mountable |
| Rack Height | 3U |
| Weight (Approximate) | 22 lb |
| Miscellaneous | |
|---|---|
| Additional Information | The VTrak line features Promise’s embedded browser-based management interface, WebPAM PROe, eliminating the need to install additional software. All VTrak systems on the network can be configured and monitored using a single, easy-to-manage interface through an out-of-band Ethernet port. By using industry-standard management protocols, Promise simplifies integration with third-party management applications. |
| Environmentally Friendly | Yes |
