PS BN506 1000W Pure Power 12M ATX3.0 80 Plus Gold Modular Cable RTL


  • 80 PLUSĀ® Gold efficiency (up to 93.1%)
  • ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
  • Exceptionally silent 120mm be quiet! fan
  • Advanced stability and voltage regulation thanks to LLC technology
  • 2 strong 12V-rails
  • Modular cables for maximum build flexibility
  • One PCIe 5.1 12VHPWR 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs

AED999.00

80 PLUSĀ® GOLD CERTIFIED | Very high operating efficiency

Pure Power 12 M 1000W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 93.1%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 1000W is always the correct choice for quiet systems and gaming PCs!

FUTURE-PROOF YOUR SYSTEM | Fulfills all ATXĀ

Pure Power 12 M 1000W is an ATX 3.1 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.1 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.

THE NEW STANDARD OF POWER | For massive transient loads

Pure Power 12 M offers 1000W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 1000W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

UNPRECEDENTED SILENT OPERATION | Achieved with a silence-optimized be quiet! fan

The exceptionally silent 120mm be quiet! fan is temperature- controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality.

HIGH-CLASS TECHNOLOGIES | Rock-solid stability

With its LLC topology Pure Power 12 M 1000W provides a best-in-class voltage regulation and efficiency. That makes it perfect for building or upgrading very quiet systems as well as gaming and media creation PCs.

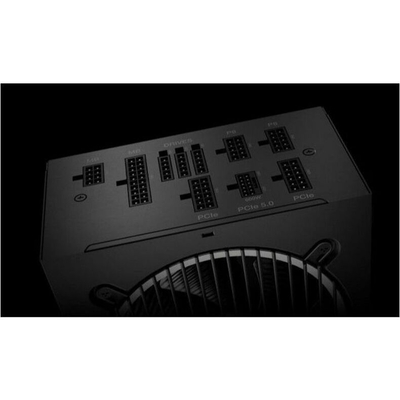

MODULAR CABLES | Utmost convenience and compatibility

Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 12 M 1000W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.

SKU: BN506 Category: Tag:
Category Attribute Details
General Information Product Name Be quiet! PS BN506 1000W Pure Power 12M ATX3.0 80 Plus Gold Modular Cable RTL
Manufacturer Part Number BN506
Product Line Pure Power 12 M
Product Model Pure Power 12 M 1000W
Product Type Power Supply
Technical Information Specification Compliance EPS12V v2.92, ATX 3.1, ATX 3.0
Efficiency 93.1%
Number of Fans 1
Fan Bearing Type Rifle Bearing
Fan Diameter 120 mm
Protection Type Over Temperature, Over Current, Over Power, Over Voltage, Short Circuit, Under Voltage, Surge, Inrush Current
Modular Yes
Interfaces/Ports Number of SATA Power Connectors 6
PCI Express Connector Yes
(6+2 pin) PCI Express Power Connectors 4
(4+4 pin) CPU Power Connectors 1
Environmental Conditions Max Operating Temperature 104°F (40°C)
Power Description Input Voltage 120 V AC, 230 V AC
Number of +12V Rails 2
Output Voltage 3.3 V DC, 5 V DC, 12 V DC, -12 V DC, 5 V SB
Output Voltage Detail 3.3 V @ 22 A, 5 V @ 22 A, 12 V @ 46 A, 12 V @ 42 A, -12 V @ 0.3 A, 5 V SB @ 3 A
Output Power 1000 W
Reliability MTBF 100,000 Hours
Physical Characteristics Color Family Black
Product Color Black
Form Factor Internal
Height 3.4″
Width 5.9″
