The be quiet! Dark Power 13 1000W offers 80 PLUS® Titanium efficiency, virtually inaudible operation, and ATX 3.0 compliance for next-gen GPU compatibility.
- 80 PLUS Titanium efficiency (up to 95.2%)
- ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connector
- Improved frameless Silent Wings fan for virtually inaudible operation
- Full-mesh front with funnel shape air inlet upholds the high air circulation abilities
- Overclocking key switches between four 12V rails and one massive 12V rail
- Active Rectifier + full bridge LLC technology provides unmatched signal stability and extremely high efficiency

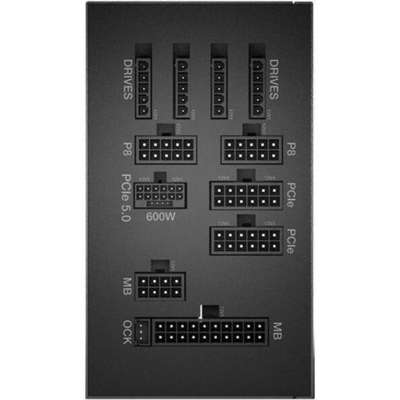

- Modular cable management for maximum convenience80 PLUS® TITANIUM CERTIFIED | The highest efficiency certificate available
Dark Power 13 1000W is certified with 80 PLUS Titanium and a money-saving energy efficiency rating of up to 95.2%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.
FUTURE-PROOF YOUR SYSTEM | Fulfills all ATX 3.0 specifications
Dark Power 13 1000W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come.
THE NEW STANDARD OF POWER | For massive transient loads
Dark Power 13 offers 1000W of continuous power with 4 independent 12V rails. Even if the graphics card demands excessive power for a short time: Dark Power 13 1000W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
FRAMELESS SILENT WINGS FAN | Patented fan technology for virtually inaudible operation
The improved tripod-mounted be quiet! Silent Wings fan enables maximum airflow and a virtually inaudible operation. This is thanks to its unique, airflow-optimized fan blade design along with an advanced fluid-dynamic bearing. A 6-pole fan motor ultimately makes for less vibration, super-long life and minimal power consumption.
INNOVATIVE COOLING CONCEPT | For a longer lifespan
The split fan inlet of the Dark Power 13 1000W is a custom-shaped funnel that increases airflow while reducing unwanted turbulence. The wire-free design inside allows the cool air to reach all components flawlessly which ultimately leads to a longer lifespan.
READY FOR OVERCLOCKING | Pushing the performance of your PSU to the max
Dark Power 13 1000W is particularly suitable for overclocking. The overclocking key gives you full overclocking control by manually switching between the default four 12V-rail mode and the alternative massive
single-rail operation.
| Category | Attribute | Details |
|---|---|---|
| General Information | Product Name | Be quiet! PS BN661 1000W Dark Power 13K ATX3.0 80PLUS Titanium Black Retail |
| Manufacturer Part Number | BN661 | |
| Product Line | Dark Power 13 | |
| Product Model | Dark Power 13 1000W | |
| Product Type | Power Supply | |
| Technical Information | Specification Compliance | ATX 3.0, EPS12V v2.92 |
| Efficiency | 95.2% | |
| Number of Fans | 1 | |
| Fan Bearing Type | Fluid Dynamic Bearing | |
| Fan Diameter | 135 mm | |
| Protection Type | Over Temperature, Over Current, Over Power, Over Voltage, Short Circuit, Under Voltage, Surge, Inrush Current | |
| Modular | Yes | |
| Interfaces/Ports | Number of SATA Power Connectors | 13 |
| PCI Express Connector | Yes | |
| Number of (6+2 pin) PCI Express Connectors | 4 | |
| Number of (4+4 pin) CPU Power Connectors | 1 | |
| Environmental Conditions | Minimum Operating Temperature | 77°F (25°C) |
| Maximum Operating Temperature | 104°F (40°C) | |
| Power Description | Input Voltage | 120 V AC, 230 V AC |
| Number of +12V Rails | 4 | |
| Output Voltage | 3.3 V DC, 5 V DC, 12 V DC, -12 V DC, 5 V SB | |
| Output Voltage Detail | 3.3 V @ 25 A 5 V @ 25 A 12 V @ 32 A 12 V @ 40 A -12 V @ 0.5 A 5 V @ 3 A |
|
| Output Power | 1000 W | |
| Reliability | MTBF | 100000 Hour |
| Physical Characteristics | Color Family | Black |
| Product Color | Black | |
| Form Factor | Internal | |
| Height | 3.4″ | |
| Width | 5.9″ |
