PTZOptics Move 4K PTZ Camera with 20x Optical Zoom – Gray

Add to Wishlist

Quick tech specs

  • Built-In Auto-Tracking
  • 3D Noise Reduction
  • 3.5mm Audio Embedding Connection
  • Includes 20x Optical Zoom
  • Wide Dynamic Range
  • SRT Support
  • Serial Control
  • Color: Gray

AED10,899.00

Add to Wishlist
The Move 4K features auto-tracking for a more intelligent video production workflow. The Move 4K is capable of 4K at 60 fps (1080p at 60 fps over SDI), future-proofing your technology investment while still accommodating HD and Full HD video resolutions equipment. The Move 4K offers high performance in low-light scenarios, PoE+ capabilities, and a built-in tally light.
SKU: PT20X-4K-GY-G3 Category: Tag:
Category Details
Overview
Brand PTZOptics
Product Line PTZOptics Move 4K
Model PT20X-4K-GY-G3
Manufacturer PTZOptics
Network & Communication
Network Interface Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols RTMP, RTSP, SRT
Connectivity
Connectivity Technology Wired

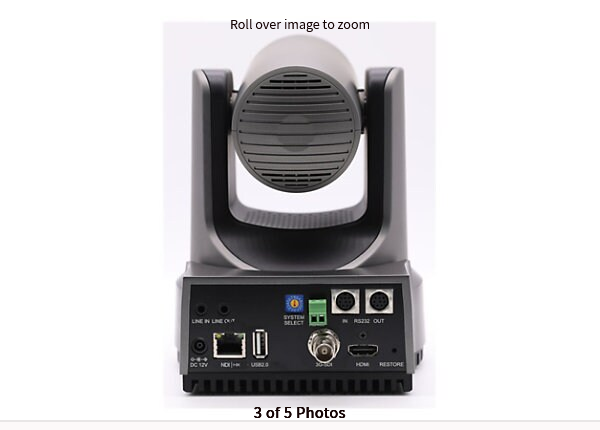

Ports 3G-SDI – BNC, Audio line in – 3.5 mm jack, HDMI, LAN/power – RJ-45, Serial RS-232 input – 8 pin mini-DIN, Serial RS-232 output – 8 pin mini-DIN, Serial RS-485 – terminal block, USB 2.0 – 4 pin USB Type A
Display & Graphics
Image Sensor Size 1/1.8″
Image Sensor Type CMOS
Tilt -30 to +90
Touchscreen No
Video
Audio Support Yes
Camera Mechanical Design Pan / tilt / zoom
Control Interface RS-232, RS-485
Digital Video Capture Resolution 1280 x 720, 1920 x 1080, 256 x 144, 3840 x 2160, 480 x 270, 960 x 540
Digital Zoom 16
Max Frame Rate 60 frames per second
Max Panning Speed (degree/sec) 100
Max Tilting Speed (degree/sec) 69.9
Max Video Resolution 3840 x 2160
Panning Range (degree) -170 to +170
Shutter Speed (Max) 1/10000 second (time unit)
Shutter Speed (Min) 1/30 second (time unit)
Video Modes 1080/25p, 1080/29.97PsF, 1080/30p, 1080/50i, 1080/50p, 1080/59.94i, 1080/59.94p, 1080/60i, 1080/60p, 2160/25p, 2160/29.97p, 2160/30p, 2160/50p, 2160/59.94p, 2160/60p, 720/59.94p, 720/60p
Video Signals 3G-SDI, HDMI, USB
Camera
Camera Type Conference camera
Power
Low Voltage Power DC 12 V / PoE Plus
Power Device Type Power adapter
Technical Information
Angular Field of View (H, Max, Degree) 60.7
Angular Field of View (H, Min, Degree) 3.5
Angular Field of View (V, Max, Degree) 34.1
Angular Field of View (V, Min, Degree) 1.9
Indoor/Outdoor Indoor
Lens Aperture F/1.58-3.95
Max Focal Length 125 millimetre
Max Operating Temperature 104 degree Fahrenheit
Min Focal Length 6.25 millimetre
Min Operating Temperature 14 degree Fahrenheit
Minimum Illumination 0.5 lux F1.8 – AGC on
Operating System Required Apple iOS, Apple MacOS, Linux, Windows
Optical Zoom 20
Sensor Size (metric) 14.1 mm (1/1.8″)
Total Pixels 8,420,000 pixels
Video Formats H.264, H.265, HEVC
Video Input Color
Product Information
Features 255 preset positions, 3D Noise Reduction Technology, Aluminum housing, Auto tracking, Image flip, Image freeze, Image mirror, IP Streaming, NDI
Packaged Quantity 1
Included Items
Cables 1 x RS-232 cable – external, 1 x USB-A cable – external
Included Accessories 2 AA batteries, Power adapter, Remote control
Dimensions & Weight
Height 6.5 inch
Weight 3.24 lbs
Width 6.6 inch
Depth 5.6 inch
Physical Characteristics
Color Gray
Color Category Gray
Certifications & Listings
Compliant Standards IEEE 802.3at
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
