PWR-C2-640WDC= Catalyst 3650 Series Spare Power Supply

Add to Wishlist
Model: PWR-C2-640WDC= Catalyst 3650 Series Spare Power Supply
Detail:
640W DC Config 2 Power Supply Spare

3,499.00 د.إ

Add to Wishlist

PWR-C2-640WDC= is 640W DC Config 2 Power Supply Spare.

Quick Specs

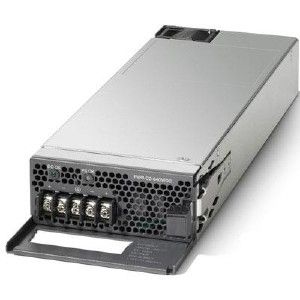

Figure 1 shows the appearance of PWR-C2-640WDC=.

PWR-C2-640WDC= Appearance

Table 1 shows the Quick Specs.

Product Code PWR-C2-640WDC=
Power Supply Rated Maximum 640W
Total Output BTU (Note: 1000 BTU per hr = 293 W) 2188 BTU/hr, 640W
Input-Voltage Range and Frequency

(Note: Ā±10% of “Input-Voltage Rangeā€)

 -36VDC to -72VDC
Input Current 21 – 10.5 A
Output Ratings 12V @ 20.83A

-54V @ 7.36A
Output Holdup Time > 2ms@-48VDC
Power-Supply Input Receptacles Terminal strip
Power Cord Rating 20A @ 100VDC
Physical Specifications (H x W x D): 1.58 X 3.75 X 11.75 in (4.0 x 9.5 x 29.8 cm)

Weight: 2.75 lb

(1.25 kg)

Compare to Similar Items

Table 2 shows the comparison of PWR-C2-250WAC=, PWR-C2-640WDC= and PWR-C2-1025WAC=.

Product Code PWR-C2-250WAC= PWR-C2-640WDC= PWR-C2-1025WAC=
Power Supply Rated Maximum 250W 640W 1025W
Total Output BTU (Note: 1000 BTU per hr = 293 W) 853 BTU/hr, 250W 2188 BTU/hr, 640W 3497 BTU/hr, 1025W
Input-Voltage Range and Frequency

(Note: Ā±10% of “Input-Voltage Rangeā€)

 100-240VAC,

50-60 Hz

 -36VDC to -72VDC 115-240VAC,

50-60 Hz
Input Current 4-2A 21 – 10.5 A 12-6A
Output Ratings 12V @ 20.83A 12V @ 20.83A

-54V @ 7.36A

 12V @ 20.83A

-54V @ 14.6A
Output Holdup Time 16.7 ms minimum @ 100VAC > 2ms@-48VDC 10 ms minimum @ 102.5VAC
Power-Supply Input Receptacles IEC 320-C13 (IEC60320-C13) Terminal strip IEC 320-C16

(IEC60320-C16)
Power Cord Rating 10A 20A @ 100VDC 13A
Category:

PWR-C2-640 WDC= Specification
Power Supply Rated Maximum 640W
Total Output BTU (Note: 1000 BTU per hr = 293 W) 2188 BTU/hr, 640W
Input-Voltage Range and Frequency

(Note: Ā±10% of “Input-Voltage Rangeā€)

 -36VDC to -72VDC
Input Current 21 – 10.5 A
Output Ratings 12V @ 20.83A

-54V @ 7.36A
Output Holdup Time > 2ms@-48VDC
Power-Supply Input Receptacles Terminal strip
Power Cord Rating 20A @ 100VDC
Physical Specifications (H x W x D): 1.58 X 3.75 X 11.75 in (4.0 x 9.5 x 29.8 cm)

Weight: 2.75 lb

(1.25 kg)
Operating Temperature For the operating temperature ranges at various altitudes of AC and DC power supply module powered switches, see Table 1.
Storage Temperature -40 to 158Ā°F (-40 to 70Ā°C)
Relative Humidity Operating and Nonoperating Noncondensing 5 to 96% noncondensing
Altitude 16,400 ft. (5,000 meters)
MTBF Calculated MTBF must be greater than 300,000 using Telcordia SR-332, Method 1, Issue 3. Demonstrated MTBF is 500,000 hr (with 90% confidence level).
EMI and EMC Compliance ā€œAC OKā€: Input power to the power supply is OK

ā€œPS OKā€: Output power from the power supply is OK
Safety Compliance For the operating temperature ranges at various altitudes of AC and DC power supply module powered switches, see Table 1.
LED Indicators -40 to 158Ā°F (-40 to 70Ā°C)
