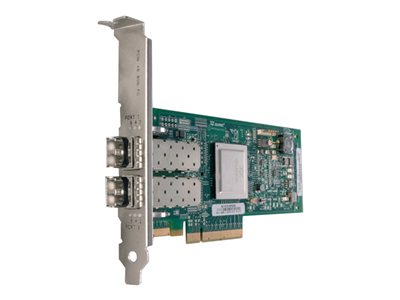

QLogic 8Gb FC Dual-port HBA for IBM System x – host bus adapter – PCIe x4 – 8Gb Fibre Channel x 2

Add to Wishlist

QLogic 8Gb FC Dual-port HBA for IBM System x – Host bus adapter – PCIe x4 – 8Gb Fibre Channel x 2 – for System x3100 M5; x3250 M6; x32XX M2; x34XX; x3550 M2; x3650 M2; x3650 M4 HD; x3950 M2

AED6,199.00

Add to Wishlist

The QLogic 8Gb FC Dual-port HBA for IBM System x is PCI Express 2.0 x8 8Gb Fiber Channel adapter with SFP+ LC-style connectors. The adapter connects to SFP+ Multimode Fiber SR optical modules. This adapter supports 8 Gbps per port maximum bidirectional throughput for high-bandwidth storage (SAN). The PCI Express low profile form factor adapter can be used in either a standard PCI Express slot or a low profile PCI Express slot.

SKU: 42D0510 1 Category: Tag:
General
Device Type Host bus adapter
Form Factor Plug-in card
Interface (Bus) Type PCI Express x4
PCI Specification Revision PCIe 1.0a, PCIe 1.0
Bus Voltage Universal (3.3 V & 5.0 V)
Networking
Ports 8Gb Fibre Channel x 2
Connectivity Technology Wired
Data Link Protocol 8Gb Fibre Channel
Data Transfer Rate 8.5 Gbps
Features Auto-negotiation
Processor / Memory
RAM 1 MB
Flash Memory 1 MB
Expansion / Connectivity
Interfaces 2 x network – 8Gb Fibre Channel
Compatible Slots 1 x PCI Express
Miscellaneous
Compliant Standards UL, TUV, VCCI Class B ITE, BSMI CNS 13438 Class B, cUL, DHHS, EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, UL 60950, ICES-003 Class B, AS/NZ 3548 Class B, FCC Part 15 B, MIC, CSA C22.2, EN 60950-1, EN 60825
Dimensions & Weight
Width 1 in
Depth 6.6 in
Height 2.6 in
Weight 3.99 oz
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 113 °F
Humidity Range Operating 5 – 95%
Compatibility Information
Designed For IBM System Storage DS3400 Model 41E, DS3400 Model 41X, DS3400 Model 42E, DS3400 Model 42T, DS3400 Model 42X ¦ Lenovo System x3100 M4 2582 ¦ Lenovo System x3100 M5 ¦ Lenovo System x3200 M2 ¦ Lenovo System x3250 M2 ¦ Lenovo System x3250 M3 4252 ¦ Lenovo System x3250 M4 ¦ Lenovo System x3250 M6 ¦ Lenovo System x3300 M4 ¦ Lenovo System x3350 ¦ Lenovo System x3400 ¦ Lenovo System x3450 ¦ Lenovo System x3500 ¦ Lenovo System x3550 ¦ Lenovo System x3550 M2 ¦ Lenovo System x3620 M3 ¦ Lenovo System x3630 M3 7377 ¦ Lenovo System x3630 M4 ¦ Lenovo System x3650 ¦ Lenovo System x3650 M2 ¦ Lenovo System x3650 M3 ¦ Lenovo System x3650 M4 HD ¦ Lenovo System x3655 ¦ Lenovo System x3755 ¦ Lenovo System x3850 M2 ¦ Lenovo System x3950 M2 ¦ Lenovo System x3950 X5
