Network Adapters

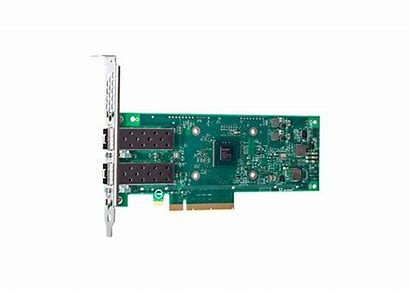

QLogic QL45412H – network adapter – PCIe x16 – 40Gb Ethernet x 2
QLogic QL45412H – Network adapter – PCIe x16 low profile – 40Gb Ethernet x 2 – for UCS C240 M5, C240 M5L, S3260, SmartPlay Select C220 M5SX, SmartPlay Select C240 M5SX
AED7,399.00
| Device Type | Network adapter |
|---|
| Form Factor | Plug-in card – low profile |
| Interface (Bus) Type | PCI Express x16 |
| Networking |
| Ports | 40Gb Ethernet x 2 |
| Connectivity Technology | Wired |
| Cabling Type | Fiber optic |
| Data Link Protocol | 40 Gigabit Ethernet, RDMA over Converged Ethernet (RoCE) |
| Data Transfer Rate | 40 Gbps |
| Max Transfer Distance | 330 ft |
| Network / Transport Protocol | iWARP |
| Features | IPv6 support, priority-based flow control, enhanced transmission selection, IPv4 support, PXE support, LSO, GSO, LRO, RSS, UEFI support, SR-IOV, NPAR, DCB, FEC, TSO, MSI-X, iSCSI remote boot, TSS, RoCE, VXLAN, NVGRE, RoCE v2, RSC, iSCSI Extensions over RDMA (iSER), Interrupt coalescing, Universal RDMA, VMMQ, Hyper-V SET |
| Compliant Standards | IEEE 802.1as, IEEE 802.3-2015, IEEE 1588-2002 |
| Expansion / Connectivity |
| Interfaces | 2 x 40Gb Ethernet – QSFP+ |
| Miscellaneous |
| Compliant Standards | CB, CSA C22.2, UL 60950-1, IEC 60950-1, EN 60950-1, EN 55032, IEEE 802.1Q, RFQ 791, RFC2460, 802.3-2015 Clause 52, SFF8431 Annex E |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 – 80% (non-condensing) |
| Compatibility Information |
| Designed For |
|---|
| Cisco UCS C220 M5 Server (Large Form Factor Disk Drive Model) |
| C220 M5SN SFF |
| C240 M5 LFF Rack Server |
| C240 M5 LFF Rack Server (Tracer) |
| C240 M5 Rack Server for Microsoft Azure Stack |
| C240 M5 SFF Rack Server |
| C240 M5L Rack Server for Microsoft Azure Stack |
| S3260 Storage Server |
| SmartPlay Select C220 M5 High Core 1 |
| SmartPlay Select C220 M5 Standard 1 |
| SmartPlay Select C220 M5 Standard 2 |
| SmartPlay Select C220 M5S Basic 1 (Tracer) |
| SmartPlay Select C220 M5S Standard 1 |
| SmartPlay Select C220 M5S Standard 1 (Tracer) |
| SmartPlay Select C220 M5SX |
| SmartPlay Select C220 M5SX (Tracer) |
| SmartPlay Select C220 M5SX Advanced 1 (Tracer) |
| SmartPlay Select C220 M5SX Advanced 2 |
| SmartPlay Select C220 M5SX Advanced 2 (Tracer) |
| SmartPlay Select C220 M5SX Advanced 3 |
| SmartPlay Select C220 M5SX Advanced 4 |
| SmartPlay Select C220 M5SX Advanced 5 |
| SmartPlay Select C220 M5SX Basic 1 |
| SmartPlay Select C220 M5SX Basic 2 |
| SmartPlay Select C220 M5SX Basic 3 |
| SmartPlay Select C220 M5SX Basic 4 |
| SmartPlay Select C220 M5SX Expansion Pack 2 |
| SmartPlay Select C220 M5SX High Core 2 |
| SmartPlay Select C220 M5SX Standard 2 |
| SmartPlay Select C220 M5SX Standard 2 (Tracer) |
| SmartPlay Select C220 M5SX Standard 3 |
| SmartPlay Select C220 M5SX Standard 4 |
| SmartPlay Select C240 M5 Advanced 2 |
| SmartPlay Select C240 M5 Standard 1 |
| SmartPlay Select C240 M5L High Frequency 1 |
| SmartPlay Select C240 M5L High Frequency 2 |
| SmartPlay Select C240 M5L Standard 1 |
| SmartPlay Select C240 M5L Standard 2 |
| SmartPlay Select C240 M5L Standard 3 |
| SmartPlay Select C240 M5L Standard 4 |
| SmartPlay Select C240 M5SX |
| SmartPlay Select C240 M5SX (Tracer) |
| SmartPlay Select C240 M5SX Advanced 1 |
| SmartPlay Select C240 M5sx Advanced 2 |
| SmartPlay Select C240 M5SX High Frequency 2 |
| SmartPlay Select C240 M5SX Standard 2 |
| SmartPlay Select C240 M5SX Standard 3 |
| SmartPlay Select C240 M5SX Standard 4 |
| SmartPlay Select C240 M5SX Standard 5 |
| SmartPlay Select C240 M5SX Standard 6 |
