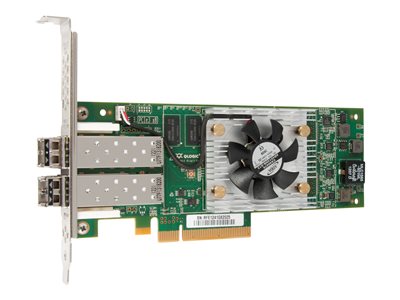

QLogic QLE2672-CK – host bus adapter – PCIe 3.0 x4 / PCIe 2.0 x8 – 16Gb Fibre Channel x 2
QLogic QLE2672-CK – Host bus adapter – PCIe 3.0 x4 / PCIe 2.0 x8 low profile – 16Gb Fibre Channel x 2
10,699.00 د.إ
The 2600 series adapters are QLogic’s sixth generation fiber channel adapters. They boast industry-leading native fiber channel performance – achieving dual-port, line-rate, 16-Gigabit fiber channel throughput – at extremely low CPU usage with full hardware offloads. This extreme performance eliminates potential I/O bottlenecks in today’s powerful multiprocessor, multicore servers.
In addition, support for powerful virtualization features make this adapter ideal for virtualized environments that need excellent I/O performance to service growing numbers of virtual machines (VMs).
| General |
| Device Type | Host bus adapter |
| Form Factor | Plug-in card – low profile |
| Interface (Bus) Type | PCI Express 3.0 x4 / PCI Express 2.0 x8 |
| PCI Specification Revision | PCIe 2.0, PCIe 3.0 |
| Networking |
| Ports | 16Gb Fibre Channel x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 16Gb Fibre Channel |
| Fibre Channel | FC-GS-2, FC-GS-3, FC-Tape, FCP-2, SCSI-FCP |
| Data Transfer Rate | 16 Gbps |
| Max Transfer Distance | 1312 ft |
| Capacity | Concurrent logins: 2048, Active exchanges: 2048 |
| Remote Management Protocol | SMI-S |
| Features | Full duplex capability, StarPower technology, UEFI support, BIOS support, Transparent (N_Port ID Virtualization – NPIV) mode support, Extended Message-Signaled Interrupts (MSI-X) |
| Expansion / Connectivity |
| Interfaces | 2 x 16Gb Fibre Channel – LC – x 2 |
| Compatible Slots | 1 x PCI Express 3.0 x4 / PCI Express 2.0 x8 |
| Miscellaneous |
| Included Accessories | Low-profile bracket |
| Compliant Standards | WEEE, EMC Class A, EMI |
| Software / System Requirements |
| Software Included | QConvergeConsole |
| OS Required | Red Hat Linux, Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2008 (32/64-bits), VMware ESXi, Citrix XenServer, VMware ESX, Oracle Solaris SPARC, Oracle Linux, Microsoft Windows Server 2012 x64 Edition, Microsoft Windows Server 2012 R2 x64 Edition |
| Dimensions & Weight |
| Depth | 6.6 in |
| Height | 2.5 in |
| Service & Support | Limited warranty – 5 years |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
