Network Adapters

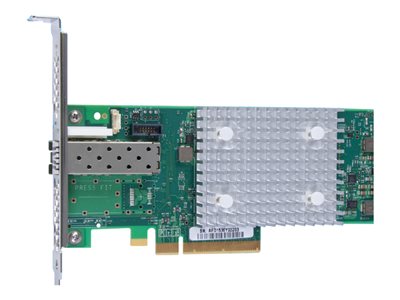

QLogic QLE2690-SR-CK – host bus adapter – PCIe 3.0 x8 – 16Gb Fibre Channel x 1
QLogic QLE2690-SR-CK – Host bus adapter – PCIe 3.0 x8 – 16Gb Fibre Channel x 1
AED2,999.00
The QLogic 2690 series of Fiber Channel adapters support powerful virtualization features, making them ideal for virtualized environments that need excellent I/O performance to service virtual machines.
| General |
|---|
| Device Type | Host bus adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| PCI Specification Revision | PCIe 3.1 |
| Networking |
| Ports | 16Gb Fibre Channel x 1 |
| Connectivity Technology | Wired |
| Data Link Protocol | 16Gb Fibre Channel |
| Fibre Channel | FC-GS-2, FC-GS-3, FC-Tape, FCP-2, FC-PI-5, SCSI-FCP |
| Data Transfer Rate | 16 Gbps |
| Max Transfer Distance | 1312 ft |
| Capacity | Concurrent logins: 2048 ¦ Active exchanges: 2048 |
| Remote Management Protocol | SMI-S, CLI |
| Features | QoS, UEFI support, BIOS support, Transparent (N_Port ID Virtualization – NPIV) mode support, MSI-X |
| Expansion / Connectivity |
| Interfaces | 1 x 16Gb Fibre Channel – SFP+ |
| Miscellaneous |
| Compliant Standards | EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, CB, ICES-003 Class A, CSA C22.2, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, KC, AS/NZS, VCCI Class A, RRA Class A, FCC CFR47 Part 15 A |
| Software / System Requirements |
| Software Included | QConvergeConsole |
| Dimensions & Weight |
| Depth | 6.6 in |
| Height | 2.7 in |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 – 90% |
