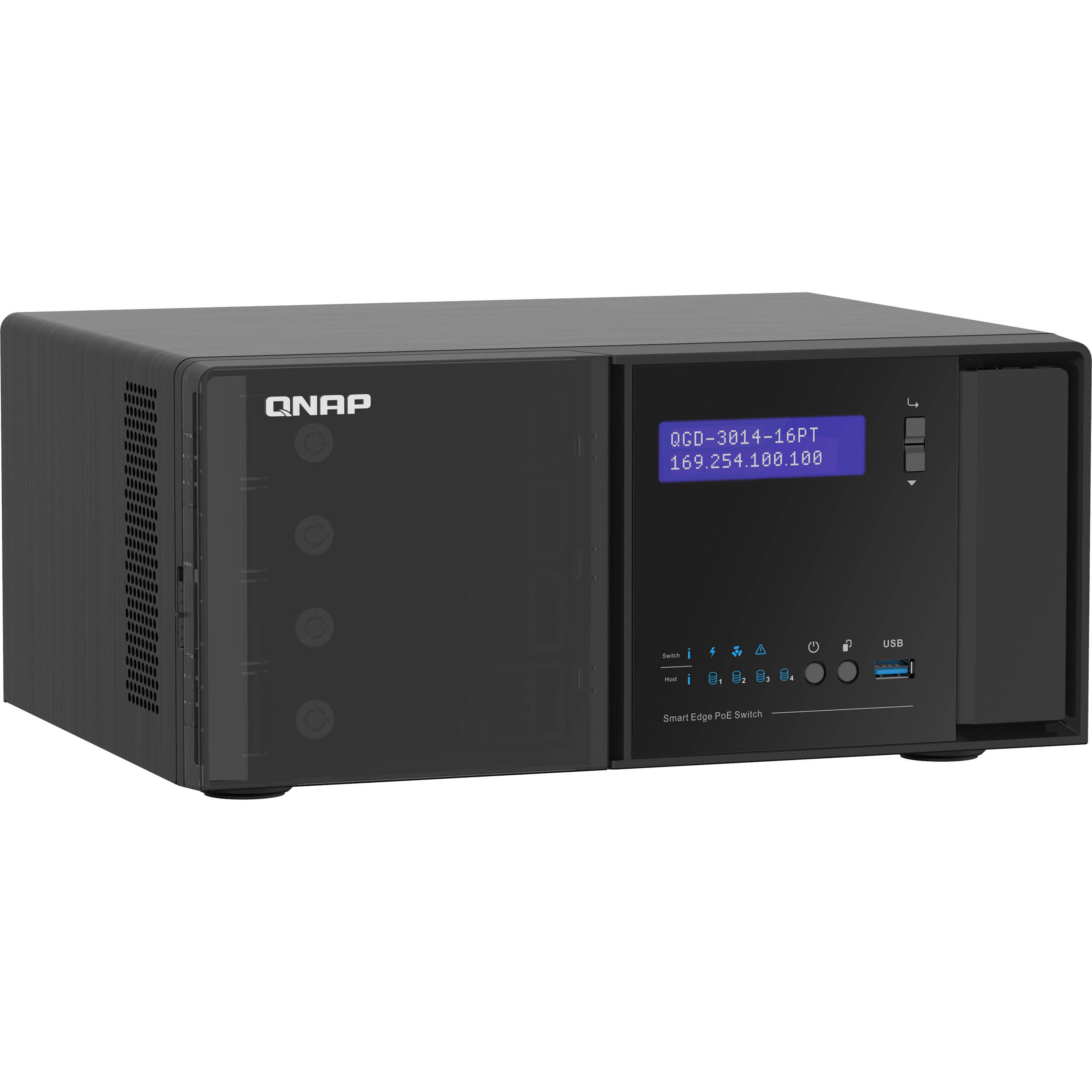

QNAP QGD-3014-16PT PoE Switch with 4-Bay NAS Enclosure

Add to Wishlist

Keep PoE devices up and running or streamline surveillance installations with the QGD-3014-16PT PoE Switch with 4-Bay NAS Enclosure from QNAP. Featuring fourteen RJ45 and two RJ45/SFP combo ports, this switch provides a total of sixteen Gigabit Ethernet ports. Supporting PoE and PoE+ standards, each port provides up to 30W of power or a total power budget of 140W. Two 2.5 Gigabit Ethernet management ports are also present, along with three USB 3.2 Gen 1 Type-A ports for expansion. Two HDMI 2.0 ports allow you to output 4K video at 60 Hz for direct playback of surveillance video. Four 3.5″ SATA III drive bays accommodate 2.5 or 3.5″ drives for NAS functionality.

AED4,495.00

Add to Wishlist

Keep PoE devices up and running or streamline surveillance installations with the QGD-3014-16PT PoE Switch with 4-Bay NAS Enclosure from QNAP. Featuring fourteen RJ45 and two RJ45/SFP combo ports, this switch provides a total of sixteen Gigabit Ethernet ports. Supporting PoE and PoE+ standards, each port provides up to 30W of power or a total power budget of 140W. Two 2.5 Gigabit Ethernet management ports are also present, along with three USB 3.2 Gen 1 Type-A ports for expansion. Two HDMI 2.0 ports allow you to output 4K video at 60 Hz for direct playback of surveillance video. Four 3.5″ SATA III drive bays accommodate 2.5 or 3.5″ drives for NAS functionality.

Utilizing an Intel Celeron J4125 quad-core CPU and 8GB of DDR4, the QGD-3014-16PT is designed for snappy processing. You can also populate two M.2 2230 SSD slots for accelerated performance via SSD caching. AES-NI encryption ensures data integrity, while Layer 2 management software allows for easy network configuration. Eight IP video channels can be used out of the box; 16 channels total are supported via expansion, and you can choose from over 5000 compatible IP camera models. The QUSBCam2 app can be used to record video from USB webcams. Finally, VM support allows this PoE switch to host virtual machines, containers, and other cloud applications for dynamic networking and storage.

Supports PoE and PoE+
Compliant with the IEEE 802.3at PoE+ standard, the QGD-3014-16PT includes sixteen 30W Gigabit PoE ports with a total power budget of 140W to meet the demands of high-powered device while supporting smart PoE management.
Layer 2 Management
Get comprehensive Layer 2 management thanks to features such as VLAN, LACP, QoS IGMP snooping, and wake-on-LAN for IT staff to efficiently control network bandwidth and enhance security via the user-friendly switch management web interface.
Storage-Ready
Install up to four SATA SSDs or HDDs using the 3.5″ SATA III drive bays. Included screws secure your 2.5 or 3.5″ drives.
Real-Time Transcoding
The QGD-3014-16PT provides real-time transcoding and has two HDMI 2.0 outputs for direct surveillance video playback at resolutions up to 3840 x 2160 at 60 Hz.
Local, Remote, and Cloud Backup
Supporting local, remote, and cloud backup, this PoE switch provides centralizes management while strengthening 3-2-1 backup planning for disaster recovery.
Simplified Management with SD-WAN
Directly host containers and virtual machines to run various applications. Flexibly install QuWAN SD-WAN, virtual routers, and firewalls for various networking management applications.
Streamlined Surveillance
The QGD-3014-16PT integrates PoE, surveillance server, and data backup management functionalities, simplifying software and hardware requirements and increasing transmission and backup efficiency of surveillance videos.
Built for Business
Combining QVR Pro surveillance software, HBS remote backup, and QuWAN SD-WAN solutions, the QGD-3014-16PT is a total package for surveillance deployment. Businesses can centrally manage video capture, playback, and processing to benefit from a cost-optimized smart surveillance solution.
Smart Surveillance for Retail
The QGD-3014-16PT sports a modern design and quiet cooling system to balance system performance and noise. This modern appearance allows the QGD-3014-16PT to easily fit in when deployed to retail spaces and showrooms. Furthermore, the QGD-3014-16PT combines the functions of a PoE switch, NVR, NAS, and router. It also provides dual HDMI 2.0 outputs for direct playback of live feeds are resolutions up to 3840 x 2160 at 60 Hz. By consolidating the functions of multiple devices in a near-silent and unobtrusive form factor, the QGD-3014-16PT satisfies the requirements for smart retail surveillance environments.
Intelligent PoE Management for High-Power IP Cameras
Compliant with the IEEE 802.3at PoE+ standards, the QGD-3014-16PT can supply 30W per port or a total power budget of 140W to meet the demands of bullet, fisheye, 4K PTZ, and Speed Dome cameras compliant with the ONVIF standard. Or use all that juice to run other high-power devices such as IP phones, LED lights, and digital signage. The QGD-3014-16PT supports intelligent PoE management functions, including scheduling, power supply prioritization, and power enabling and disabling. You can obtain real-time network connection status and power consumption information of powered devices and configure them simultaneously to promote an energy-saving PoE network.
QVR Pro
QVR Pro allows you to arrange a dedicated, independent storage space for surveillance data on the QGD-3014-16PT and leverage the advantages of scalable storage, including four drive bays and flexible storage expansion. With camera management, storage space allocation, playback, failover, and remote live viewing, QVR Pro helps you deploy a comprehensive smart IP surveillance system.
Integrated HBS 3 Remote Backup Solution for Surveillance Data
HBS 3 consolidates backup, restoration, and synchronization functions via RTRR, Rsync, FTP, and CIFS/SMB protocols. Easily transfer data from the QGD-3014-16PT to a remote QGD-3014-16PT, QNAP NAS, remote server, or cloud storage.
QuWAN Cloud Platform
The QuWAN SD-WAN cloud platform provides full mesh IPsec VPN topology between QGD switches and local and remote QNAP devices to fulfill enterprise surveillance video, system data transmission, and filing needs. QuWAN optimizes the network service by using bandwidth aggregation, QoS, and failover, providing a stable surveillance working environment. Furthermore, QuWAN adopts software defined networking to achieve optimum surveillance network connectivity and supports cloud-centric management over multiple NAS arrays, ensuring a resilient IP surveillance infrastructure.
VM Support
The QGD-3014-16PT supports QNAP’s QTS operating system, virtual machines, containers, and other cloud applications, enabling diverse networking and storage solutions. The QGD-3014-16PT provides an all-in-one solution for IP surveillance, storage expansion, network security, and wireless LAN management, as well as an SD-WAN solution for connecting to other QNAP devices in multiple sites. The QGD-3014-16PT adopts a dual-processor structure, enabling independent operation of the QNAP Switch System (QSS) networking management interface and QTS. By using the Network Virtual Switch, the data from QTS and QSS can be transferred by Intranet, accelerating computing between end devices and hosts. In addition, the QGD-3014-16PT provides a user-friendly web interface, QuNetSwitch, to help users deploy flexible and secure IT infrastructure.
QuNetSwitch
The QGD-3014-16PT provides Layer 2 management for VLAN, LACP, and LLDP protocols. These can divide network IP traffic into several groups, providing more efficient network management. The QGD-3014-16PT also employs powerful security features, including IGMP snooping, static MAC, QoS, and WoL. There is also an overview dashboard and graphical statistics analysis that displays all the information about the switch and powered devices at a glance.
USB 3.2 Gen 1
USB 3.2 Gen 1 features a maximum throughput of 5 Gb/s and is synonymous with USB 3.1 Gen 1 and USB 3.0.
SKU: PoE Switch with 4-Bay Category: Tag:

QNAP QGD-3014 External HDD/SSD Specs

Computing
CPU 2 to 2.7 GHz Quad-Core
Processor Intel Celeron J4125
GPU Intel HD Graphics 600
Total Installed Memory 8 GB DDR4
User-Replaceable Memory 2 x 4 GB
Total Memory Slots 2 x SO-DIMM
Maximum Memory Capacity 8 GB
Flash Memory 4 MB
General
Number of Bays 4 x 3.5″
2 x M.2 (2230)
I/O 14 x RJ45 (Gigabit Ethernet)
2 x SFP (Gigabit Ethernet)
2 x RJ45 (2.5GbE)
3 x USB Type-A (USB 3.1 / USB 3.2 Gen 1 (5 Gb/s))
2 x HDMI Type-A (HDMI 2.0)
Compatible Drive Interface SATA II, SATA III
Media Card Slots None
Form Factor Desktop
Hot-Swap Support Yes
Wake on LAN Yes
Networking
Supported Protocols CIFS/SMB
FTP
Rsync
Max Cameras Supported 16
Software
Installed Operating System QTS
Supported File Systems Internal: EXT4
External: EXT3, EXT4, FAT32, HFS+, NTFS, exFAT
OS Compatibility Windows 8 or Later
macOS 10.7 or Later
Linux
*As of October, 2021: Check with manufacturer for the most up-to-date compatibility
Security
Encryption AES-NI
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Source Internal Power Supply
Power Consumption 250 W (Maximum)
Environmental
Operating Temperature 32 to 72°F / 0 to 40°C
Operating Humidity 5 to 95% (Non-Condensing)
Certifications BSMI, CE, FCC, VCCI
*as per Manufacturer
Physical
Status Monitoring LCD Screen, LED Indicator
Audible Alarm No
Cooling 12 x 120 mm Fans
Built-In Speakers None
Dimensions 11.61 x 8.9 x 5.1″ / 29.5 x 22.5 x 13 cm
Weight 9.0 lb / 4.1 kg
