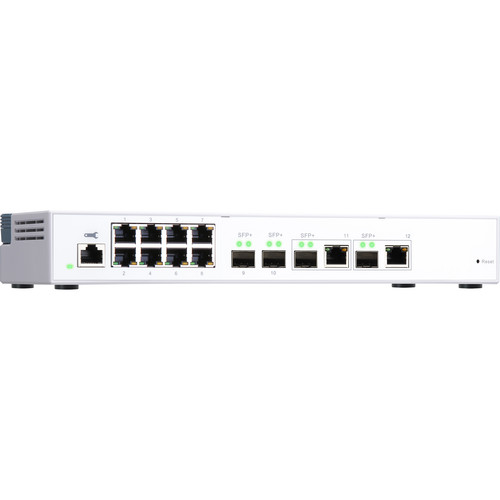

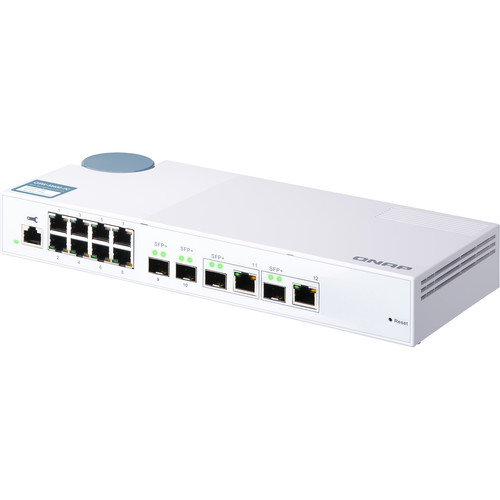

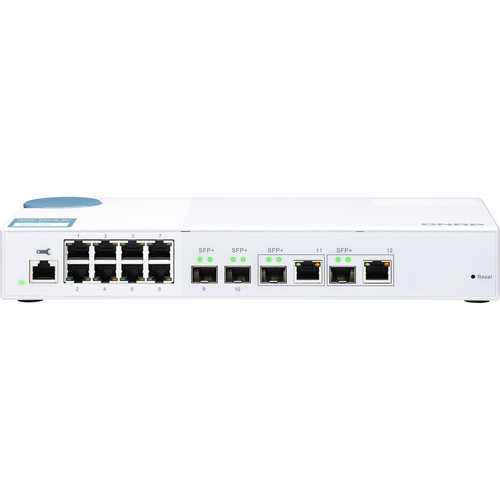

QNAP QSW-M408-2C 12-Port Gigabit Managed Switch with 10G SFP+ & Combo Ports

Add to Wishlist
Key Features
  • 8 x Gigabit Ethernet Ports
  • 2 x 10G SFP+ | 2 x 10G Combo Ports
  • 96 Gb/s Switching Capacity
  • Desktop Design
  • Web-Based Management Software

1,799.00 د.إ

Add to Wishlist

QNAP QSW-M408-2C-US Overview

Expand your network capacity with the QNAP QSW-M408-2C 12-Port Gigabit Managed Switch. This entry-level Layer 2 managed switch includes eight Gigabit Ethernet ports alongside two 10G SFP+ / RJ45 (copper) combo ports and two 10G SFP+ ports for flexible deployments that use both Ethernet and fiber connections. The 10G combo ports are compatible with 10 GbE and NBASE-T technologies, providing fast and efficient data transmissions over Cat 5e, 6e, 6a, and 7 cables. The web-based management system allows you to quickly monitor and manage your switch and its connected high-speed devices. Featuring a compact desktop design with a 96 Gb/s switching capacity, the QSW-M408-2C is built to operate quietly in almost any environment.

Flexible Network Connections
The QSW-M408-2C includes eight Gigabit Ethernet ports alongside two 10G SFP+ / RJ45 (copper) combo ports and two 10G SFP+ ports, which provides flexibility when mixing between high-speed Ethernet and fiber connections. The 10G combo ports are compatible with 10 GbE and NBASE-T technologies, providing fast and efficient data transmissions over Cat 5e, 6e, 6a, and 7 cables.
QNAP Web UI
The intuitively designed QNAP Switch System (QSS) uses a web-based interface to provide an over dashboard, port management, and setting guide that helps to streamline central network management. It uses visual illustrations that match the physical ports in addition to a setting guide, status chart reference, and online firmware update support.
Layer 2 Management
Layer 2 management features, including LACP, VLAN, ACL, and LLDP allow IT administrators to efficiently control the network bandwidth and enhance security.
Rapid Spanning Tree Protocol
With the Rapid Spanning Tree Protocol (RSTP), you can quickly deploy small to medium-scale networks that support expansion, redundancy, and loop prevention.
Energy Efficient
The QSW-M408-2C is compliant with IEEE 802.3az Energy Efficient Ethernet and IEEE802.3x Flow Control in full-duplex mode. The switch also avoids packet loss from unparalleled bandwidth and reduces power consumption for low-speed and inactive connections.
QNAP Switch System
The QNAP Switch System (QSS) helps administrators update firmware with one click.
SKU: QSW-M408-2C-US Category: Tag:
Key Specs
Inputs/Outputs
8x RJ45 Gigabit Ethernet
2x RJ45/SFP Combo 10 GbE
2x SFP+ 10 GbE
Stackable
No
Switching Bandwidth
48 Gb/s (Non-Blocking)
96 Gb/s
Stackable
No
Protocols
Layer Services Supported
Layer 2
Supported Protocols
IGMP Snooping
IPv4
IPv6
Jumbo Frames Support
9000 Bytes
MAC Address Table Size
16K
Performance
Switching Bandwidth
48 Gb/s (Non-Blocking)
96 Gb/s
Electrical
Power Draw
22.04 W (Max)
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Supply Type
External
General
Certifications
No
Operating Conditions
32 to 104°F / 0 to 40°C at 5 to 95% Humidity
Noise Level
0.0 dB
Cooling System
Passive
Material of Construction
Metal
Indicator Lights
Yes
Rack Mountable
No
Dimensions
11.42 x 5 x 1.67″ / 290.07 x 127 x 42.42 mm
Weight
2.54 lb / 1.15 kg
Packaging Info
Package Weight
3.745 lb
Box Dimensions (LxWxH)
12.7 x 8.6 x 2.4″
