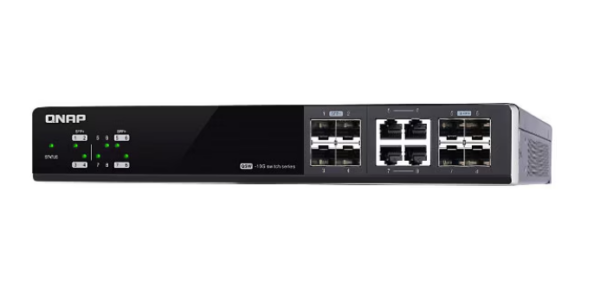

QNAP QSW-M804-4C – switch – 8 ports – managed – rack-mountable


Quick tech specs

  • M804-4C
  • managed
  • desktop, rack-mountable
  • Switch
  • 4 x 10 Gigabit SFP+ + 4 x combo 10 Gigabit SFP+/RJ-45

4,199.00 د.إ

Know your gear

The QSW-M804-4C is a Layer 2 web-managed switch with four 10GbE SFP+ ports and four 10GbE SFP+/RJ45 combo ports that enable blazing-fast transfer speeds, simultaneous multi-workstation access to large files (ideal for video editing and multimedia) and empowers bandwidth-demanding tasks like virtualization. Supporting Layer 2 switching and providing a user-friendly entry-level network management solution, the QSW-M804-4C is an affordable way for businesses and organizations to fully embrace 10GbE connectivity.
SKU: QSW-M804-4C Category: Tag:
Category Details
Overview
Brand QNAP
Product Line QNAP
Model QSW-M804-4C
Manufacturer QNAP
Network & Communication
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features ACL support, Energy Efficient Ethernet, Firmware upgradable, IGMP snooping, IPv4 support, LACP support, LLDP support, Port-based VLAN, RSTP support, Reset button, VLAN management, Web-based management
Form Factor (Hubs & Switches) Desktop, Rack-mountable
Jumbo Frame Support 9KB
MAC Address Table Size 16K entries
Manageable Yes
Ports 8
Product Type Switch
Remote Management RSTP
Routing Protocol IGMP, IGMPv2, IGMPv3
Status Indicators Link/activity, Port transmission speed, Power, Status
Subcategory Network hubs and switches
Switching Type 10 Gigabit Ethernet
Connectivity
Interface Provided 1 x console DB-9, 1 x management (Gigabit LAN) RJ-45, 4 x 1000Base-T RJ-45, 4 x 10GBase-X RJ-45/SFP+
Port Quantity 4
Port Type 10 Gigabit SFP+
Ports Type (2nd) Combo 10 Gigabit SFP+/RJ-45
Power
Frequency 50/60 hertz
Power Consumption Operational 70 watt
Technical Information
Max Operating Temperature 122 degrees Fahrenheit
Min Operating Temperature 32 degrees Fahrenheit
Operating Humidity 5 – 95% (non-condensing)
Product Information
Device Type Internal power supply
Packaged Quantity 1
Performance Non-blocking switching throughput: 80 Gbps, Switching capacity: 160 Gbps
Ports (2nd) Quantity 4
Rack Mounting Kit Included
Included Items Power cord, Rubber feet
Dimensions & Weight
Height 1.8 inch
Weight 4.67 lbs
Width 11.2 inch
Depth 9.3 inch
Physical Characteristics
Color Category Black
Certifications & Listings BSMI, FCC, RCM, VCCI, WEEE
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
