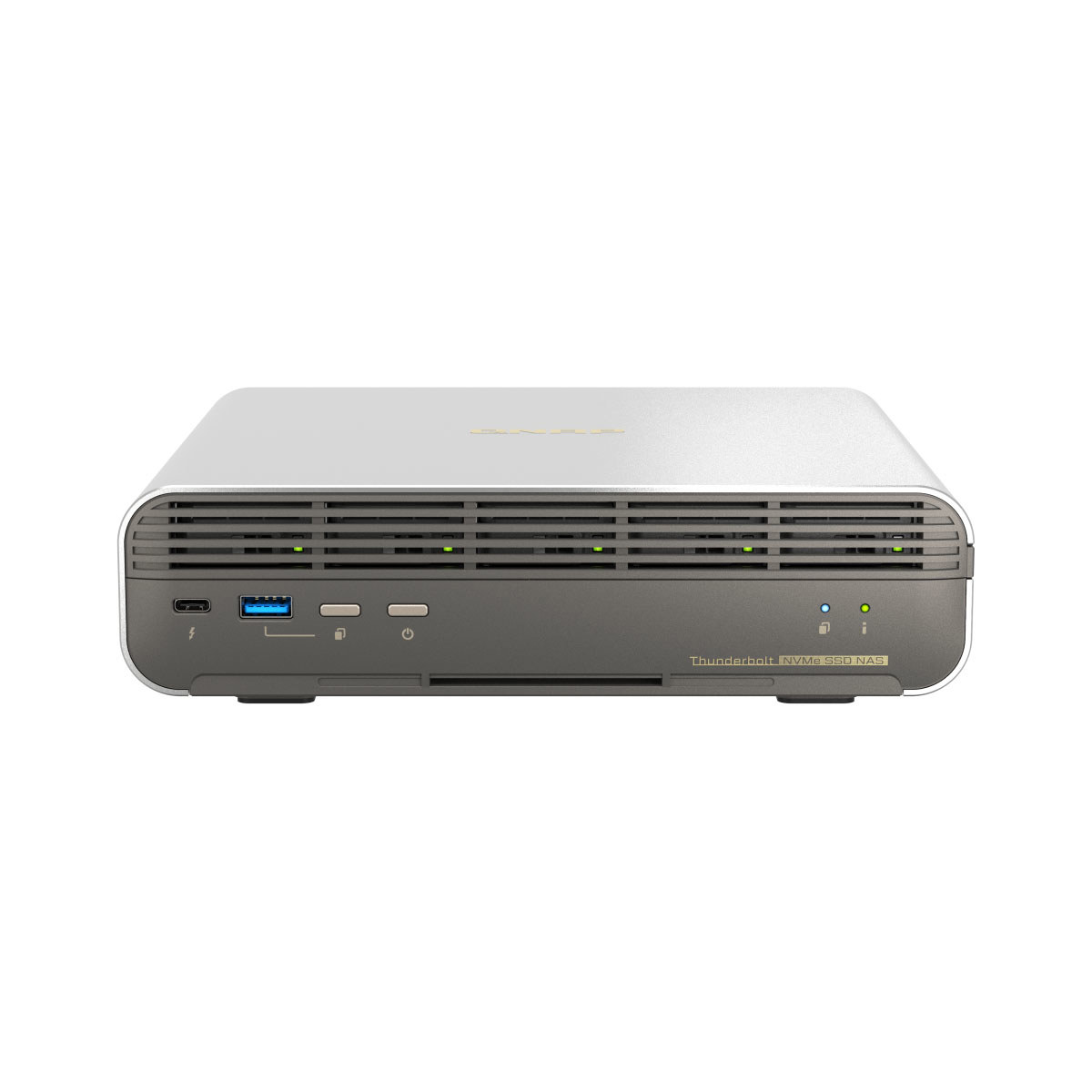

QNAP TBS-h574TX 5-Bay Thunderbolt 4 All-Flash NASbook, Intel Core i3, 12GB RAM, Diskless
Key Features
- Unleash peak performance with this all-flash NASbook, designed for blazing-fast data access.
- Experience seamless 4K/8K video editing and streaming with Thunderbolt 4 connectivity.
- Ensure top-tier data security with advanced RAID support, protecting your valuable files.
- Enjoy remote access to your files from anywhere, making collaboration and sharing easy.
- Set up your network-attached storage quickly with the intuitive, user-friendly QTS operating system.
- Expand your storage capacity easily with five bays supporting both E1.S and M.2 NVMe SSDs.
AED7,199.00
About QNAP TBS-H574TX
Designed for film sets, small studios, small-scale video production teams and SOHO users, the compact TBS-h574TX Thunderbolt 4 all-flash NASbook elevates video production for optimum productivity. It packs high-speed I/O and Intel Core performance required by video production, allowing creators using Mac or Windows to enjoy the smoothest experience ever in real-time video editing, large file transfer, video transcoding, and backup. The TBS-h574TX, as the bridge between pre-production and post-production, takes video projects and team collaboration to the next level. The TBS-h574TX runs the ZFS-based QuTS hero operating system that ensures data integrity. You can also switch to QTS operating system based on your needs.
Ultra-fast RAW file editing
With an E1.S to M.2 SSD adapter attached in each slot, you can flexibly install five E1.S or M.2 PCIe NVMe SSDs for lightning-fast multimedia file editing.
Stay agile for ongoing projects
Hot-swappable M.2 SSD and automatic RAID disk replacement enhance system reliability, reduce the risk of data loss, and smoothen ongoing projects.
Thunderbolt 4 for faster direct connections
Two Thunderbolt 4 ports allow directly connecting Mac/PC workstations to the TBS-h574TX, delivering up to 20Gbps for 4K video editing.
Hybrid-architecture CPU for multitasking
The 13th Gen Intel Core processors with hybrid-architecture (P-core and E-core) delivers high performance and efficiency.
2.5GbE and 10GbE as standard
2.5GbE and 10GbE networks accelerate large file transfer and allow for more connected devices/workstations by attaching a network switch.
Faster USB transfer
Two USB 3.2 Gen 2 (10Gbps) ports enable fast file import/export from/to external storage devices.
All-flash NASbook supporting E1.S/M.2 NVMe SSDs – a perfect companion for video production
Compared to large rackmount all-flash array storage, the TBS-h574TX all-flash NASbook features a compact, portable design with five SSD slots yet delivers extreme performance. It is the ideal choice to accelerate ongoing creative video projects from pre-production to post-production, and seamlessly works with USB DAS (TR-004) for file backup/archiving. The TBS-h574TX is always ready for your next project! An E1.S to M.2 SSD adapter is attached to each drive bay of the TBS-h574TX, providing great flexibility to choose between M.2 SSDs and E1.S SSDs on demand.
M.2 NVMe SSD
• Supports M.2 2280 modules
• Smaller capacity but more available on the market
• More affordable and more vendor options; suited for diverse applications
• Faster than SATA SSDs
• HS-M2SSD-07 or TPAD-M2SSD-04 thermal kit (optional purchase) is recommended for maximizing the M.2 PCIe NVMe SSD cooling efficiency for stable data transfer
EDSFF E1.S SSD
• Supports heights of 5.9mm / 9.5mm / 15mm
• Larger capacity but less common on the market
• Suited for high-intensity data transfer and is more future-proof
• Compared to M.2 SSDs, E1.S SSDs are hot-swappable and have higher heat dissipation efficiency
• Advanced power-loss protection (PLP) that prevents data loss
• HS-M2SSD-07 heatsink (optional purchase) is recommended for maximizing the cooling efficiency of 5.9mm E1.S SSD to ensure stable data transfer
Maximize uptime with hot-swappable M.2 / E1.S SSD
Frontline video production teams are sometimes at risk of project interruptions due to unexpected SSD failures in storage devices. The TBS-h574TX supports hot-swappable SSDs, along with conditional automatic RAID replacement with spares. If an SSD enters a critical state, the system automatically moves data from the affected drive to a spare in the RAID group, seamlessly integrating it into the existing RAID without the need for RAID rebuilding, significantly reducing the risk of data loss.
Hot-swappable M.2 SSD: Agile innovation
An E1.S to M.2 adapter is attached in each slot, allowing M.2 SSDs to become hot-swappable. This enables replacing SSDs without downtime and enhances system maintenance flexibility.
Hot-swappable E1.S SSD: Future-proof storage
The TBS-h574TX supports hot-swappable E1.S SSDs, providing reliable high-density data transfer and making it perfect for accommodating future storage needs.
High-performance SSDs. Effective heat dissipation
Designed with an excellent cooling system, the TBS-h574TX is equipped with dual fans and supports SSD heatsinks (heatsinks sold separately) to effectively enhance heat dissipation during intensive workloads, allowing creators to confidently enjoy the ultimate performance of SSD.
Thunderbolt 4 direct connection to workstations for higher productivity
The TBS-h574TX has two Thunderbolt 4 ports for high-speed data transfer (up to 20Gbps bandwidth). Mac (including M1 and M2 chip models) or Windows workstations can directly connect to the TBS-h574TX for fast and smooth real-time video editing, allowing for the transfer of a 1TB 4K video just in 11 minutes.
Diverse I/O, greater possibilities
2.5GbE and 10GbE ports | Productive teamwork
The 2.5GbE and 10GbE ports can be used with a network switch to add more connected devices to the TBS-h574TX for collaboration, significantly reducing file transfer times across devices.
USB 3.2 Gen 2 ports | Faster file import/export
Creators and editors can easily import materials from external storage devices to the TBS-h574TX via two USB 3.2 Gen 2 (10Gbps) ports and one USB 2.0 port during pre-/post-production.
USB ports | Easier storage expansion
The TBS-h574TX capacity is scalable by connecting QNAP USB DAS TR-004 or USB JBOD TL-D800C to archive massive number of video files for ever-growing storage and backup needs.
Compact, aesthetic, yet unmatched performance
The TBS-h574TX provides content creators the perfect combination of stylish design and performance. With its metal-finish case, it delivers optimized cooling performance. The set-top design makes the TBS-h574TX space-saving – smaller than A4 paper and with only 2.54 liters in volume – ideal for small-scale studios or video production teams looking for a portable solution.
Next-gen Intel Core processors with hybrid architecture for multitasking potential
The TBS-h574TX adopts the 13th Gen Intel Core hybrid-architecture processor with P-core (Performance-core) and E-core (Efficient-core) performance. Multi-core and multi-thread advantages enable higher multitasking performance with lower CPU workloads and resource consumption, empowering creators with higher productivity.
Processor
Intel Core i3-1320PE 8-core (4P+4E) and 12-thread processor, up to 4.5 GHz.
Memory
Built-in 12GB DDR4 memory.
GPU
Built-in Intel UHD Graphics accelerate video processing and graphical computing.
Encryption Engine
Features Intel AES-NI 256 hardware-accelerated encryption to boost system performance while securing sensitive data.
Recommended video production scenarios
Pre-production
Pre-production: Best video file management solution for DIT – raw footage on-site editing and powerful video transcoding
DIT (Digital Imaging Technician) is the keyman to take responsibility of video file management on shooting site in a frontline video production team.
DIT can quickly import large raw footage from camera SD cards to the TBS-h574TX through USB 3.2 Gen 2 (10Gbps) ports and proceed with video transcoding on the NASbook. In addition to saving RAW files, DIT can easily share small files with remote teams for instant discussion and confirmation, or save files to external hard drives or cloud storage.
The TBS-h574TX comes with a built-in HDMI output, allowing on-site personnel to immediately play raw footage from the NASbook on a large screen. The team can also complete the rough cut on-site using Thunderbolt 4, significantly reducing the post-production team’s workload.
Benefits for a pre-production team:
• Fast file import from SD cards to NASbook
• Store small files to myQNAPcloud Storage
• Remote access and sharing video files
• High-resolution video display using HDMI output
• Rough cut on-site using Thunderbolt 4
Post-production
Post-production: Productive team collaboration
NAS is way more collaborative than DAS. The TBS-h574TX provides Thunderbolt 4 and 10GbE connectivity that allow the post-production team to edit video files directly from the NASbook, without waiting for files to move from drive to drive, computer to computer.
Once the post-production team finishes current video editing projects on the TBS-h574TX, they can save the final files to a USB DAS (such as TR-004) to free up the NASbook’s storage space for the next project!
Benefits for a post-production team:
• Directly connect the NASbook to Mac via Thunderbolt 4
• Directly connect the NASbook to Windows workstations through 10GbE and 2.5GbE connectivity
• File storage and backup by connecting a DAS through the high-speed UBS 3.2 Gen 2 ports
Remote collaboration
Remote collaboration: Hot-swappable M.2 SSDs facilitate file sharing for collaboration and delivery
Due to the difficulty of sharing large media files over networks, remote teams often resort to physically exchanging files by using external hard drives. Now the TBS-h574TX also offers a portable file exchanging/delivery solution.
QNAP TBS-H574TX Features
-
Ultra-fast RAW file editing
-
Stay agile for ongoing projects
-
Thunderbolt 4 for faster direct connections
-
Hybrid-architecture CPU for multitasking
-
2.5GbE and 10GbE as standard
-
Faster USB transfer
QNAP TBS-H574TX Specifications
Hardware
Hardware
Jump to…
CPU
Intel Core i3-1320PE 8C(4P+4E)/12T up to 4.50GHz
CPU Architecture
64-bit x86
Graphic Processors
Intel UHD Graphics for 13th Gen Intel Processors
Floating Point Unit
Yes
Encryption Engine
Yes
Hardware-accelerated Transcoding
Yes
System Memory
12GB on board (non-expandable)
Maximum Memory
12GB on board (non-expandable)
Flash Memory
5GB (Dual boot OS protection)
Drive Bay
5 x E1.S up to 15mm (5x PCIe Gen3x2)
Pre-install adapter to support M.2 2280 for each slots
Drive Compatibility
E1.S or M.2 2280 PCIe NVMe
Heatsinks of M.2 must not exceed a height of 4.5mm
Hot-swappable
Yes (Not supported M.2 SSD)
M.2 Slot
5x M.2 2280 PCIe Gen 3 slots (via pre-installed adapter)
SSD Cache Acceleration Support
Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M)
1
10 Gigabit Ethernet Port
1x 10GBASE-T (10G/5G/2.5G/1G/100M)
Wake on LAN (WOL)
Yes
Jumbo Frame
Yes
Thunderbolt Port
2 (Thunderbolt 4)
USB 2.0 port
1
USB 3.2 Gen 2 (10Gbps) Port
2
HDMI Output
1, HDMI 1.4b
Form Factor
Set-top design
LED Indicators
Status, USB copy, SSD 1-5
Buttons
Status, USB copy, Reset
Operating Temperature
32 Degree F – 104 Degree F (0 – 40 Degree C)
Storage Temperature
-4 Degree F – 158 Degree F (-20 – 70 Degree C)
Relative Humidity
5-95% RH non-condensing, wet bulb: 80.6 Degree F (27 Degree C)
Power Supply Unit
120W Adapter (19VDC output, 100-240VAC input)
Power Consumption
46 W (Operating Mode, Typical)
Fan
System fan: 2x 40mm
CPU fan: 1x 75mm
System Warning
Buzzer
Max. Number of Concurrent Connections
1500 (with Max. Memory)
Dimensions (H x W x D)
2.36 x 8.46 x 7.83″ (5.99 x 21.49 x 19.89cm) (without foot pad)
Weight
4.94 lbs (2.24kg)
Software
Jump to…
Operating System
QTS 5.2.5
QuTS hero h5.2.5
Supported Client Operating Systems
Apple Mac OS 10.10 or later
Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
IBM AIX 7, Solaris 10 or later UNIX
Microsoft Windows 7, 8, 10 and 11
Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022
Supported Browsers
Apple Safari (latest version)
Google Chrome (latest version)
Microsoft Edge (latest version)
Mozilla Firefox (latest version)
Supported Languages
Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish
Storage Pool
Yes
SED Storage Pool
Yes
Maximum Pool size
QTS 5.2.5: 308TB
QuTS hero h5.2.5: 5 PB
Maximum number of storage pool
128
Volume Type
Thick, Thin, Static
Maximum volume size
250TB
Maximum number of volume
128
Maximum shared folder size
QTS 5.2.5: 250TB
QuTS hero h5.2.5: 5 PB
Maximum number of shared folder
QTS 5.2.5: 512
QuTS hero h5.2.5: 256
JBOD Expansion
Yes
VJBOD / VJBOD Cloud
Yes
iSCSI Service
Yes
LUN Type
Thick, Thin
File-based iSCSI LUN
QTS 5.2.5: Yes
Block-based iSCSI LUN
Yes
Maximum LUN size
QTS 5.2.5: 250 TB
QuTS hero h5.2.5: 1024 TB
Maximum number of targets LUN
QTS 5.2.5: 128
QuTS hero h5.2.5: 256
LUN feature
QTS 5.2.5: LUN Mapping
LUN Masking
WWPN Aliases Import/Export
Multipath IO (MPIO)
Online LUN capacity expansion
LUN snapshot
LUN snapshot replication and clone
Auto Tiering
Yes
RAID Type
QTS 5.2.5: 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
2-bay: JBOD, Single, RAID 0, 1
QuTS hero h5.2.5: 8-bay (and more): Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, 60, Triple Mirror, Triple Parity
6-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, Triple Mirror, Triple Parity
RAID Type (Contd.)
4-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, Triple Mirror, Triple Parity
3-bay: Single, RAID 0 (Stripe), 1, 5, Triple Mirror, Triple Parity
2-bay: Single, RAID 0 (Stripe), 1
RAID Group
Yes
RAID Level Migration
QTS 5.2.5: Yes
RAID Expansion (by adding Disk)
QTS 5.2.5: Yes
RAID Expansion
Yes (by replacing bigger Disks)
Storage Pool Expansion
Yes (by adding RAID Group)
RAID Hot Spare
Global, Local
RAID Sync/Rebuild/Scrubbing
Yes
Silent error detection and self-healing
QuTS hero h5.2.5: Yes
Internal drive
QTS 5.2.5: EXT4
QuTS hero h5.2.5: ZFS
External drive
EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model)
Disk, Enclosure Locate
Yes
Disk S.M.A.R.T. Scan
Yes
Disk S.M.A.R.T. Data Migration
Yes
Ironwolf Health Management
Yes
Secure Erase
Yes
SSD Trim
Yes
SSD Life Estimation
Yes
Disk Roaming
Yes
Disk Standby
Yes
Volume Snapshot
QTS 5.2.5: Yes
Shared Folder Snapshot
QuTS hero h5.2.5: Yes
LUN Snapshot
Yes
Minimum Snapshot Interval
QTS 5.2.5: 5 minutes
QuTS hero h5.2.5: 1 minute
Snapshot Retention Policy
Yes
Self-serve Snapshot Recovery
Yes
Application Consisted Snapshot
Yes
Snapshot Full Clone
Yes
Snapshot Instant Clone
QuTS hero h5.2.5: Yes
Snapshot Replica / Vault
Yes
SSD read-only Cache
Yes
SSD read-write cache
Yes
SSD write-only cache
Yes
SSD dedicated ZIL cache
QuTS hero h5.2.5: Yes
SSD Cache RAID
QTS 5.2.5: 0, 1, 5, 6, 10
QuTS hero h5.2.5: 0, 1, 10 (journal)
SSD profiling tool
QTS 5.2.5: Yes
External Device Management
Yes
Mount Smart Phone (MTP)
Yes
External RAID Device (QNAP so on)
Yes
Management (External Device Mode)
Management (NAS Mode)
File Server
File sharing across Windows, Mac, and Linux/UNIX
Microsoft networking (CIFS/SMB)
Apple networking (AFP)
NFS version 3/4 services
FTP Server
QuFTP
FTP, SFTP and TFTP protocols
FTP over SSL/TLS (explicit FTPS)
FXP support
Maximum FTP connection
1024
Shared Folder WORM
QuTS hero h5.2.5: Yes
File Station (Web)
Yes
Object Storage
Yes
Local user account
QTS 5.2.5: 4,096
QuTS hero h5.2.5: 16000
Local group account
512
Domain user/group account
200000
Domain Security
Yes
Domain Controller
Yes
Shared folder permission
Yes
Advanced folder permission
QTS 5.2.5: Yes, (AFP, CIFS/SMB, FTP, and File Station)
Windows ACL
QTS 5.2.5: Yes, (CIFS/SMB)
User quota
Yes
Group quota
Yes
Folder quota
QTS 5.2.5: Yes, (Snapshot shared folder)
Home folder
Yes
Resource Monitor
Yes
SNMP
V2, V3
Network recycle bin
Recover files deleted using AFP, CIFS/SMB, and File Station
Automatic cleanup and file type filter
System Log & Notification Center
Log recording: 3,000 event per second
Smart Fan
Yes
Schedule on/off
Yes
Internet protocol
IPv4, IPv6
Virtual Switch
Yes
Port trunking
Yes, (7 modes)
VLAN
Yes
DHCP Server
Yes
DDNS (Dynamic Domain Name Service)
Yes
Network access protection
SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP(with auto-blocking)
Security Counselor
Yes
Malware Remover
Yes
AES 256-bit Volume Encryption validated
Yes (by FIPS 140-2 CAVP)
2-step verification
Yes
Allow/Deny List
Yes
Access Protection
Yes
Service binding
Yes
Firewall
Yes
vSphere Web Client Plug-in
Yes
VMware vSphere VAAI for iSCSI
Yes
VMware vSphere VAAI for NAS
Yes
Windows ODX
Yes
Windows/VMware Snapshot Agent
Yes
HTTP/HTTPS Connections
TLS 1.0/1.1/1.2/1.3
Supports WebDAV Connection
Yes
Supports Virtual Hosts
32
Qsync
Yes
Management Mode: User customization, Central
Qsync client supported platforms: Windows, macOS, Ubuntu, Android, and iOS
Maximum number of version control: 64
HybridMount
Yes
QTS 5.2.5: File Cloud Gateway: Concurrent Connections = 20 Upload & 20 Download
QuTS hero h5.2.5: File Cloud Gateway: Concurrent Connections = 80 Upload & 80 Download
Network Drive Mount
Free cloud gateway sessions: 2
HBS (Hybrid Backup Sync)
Yes
NAS to NAS backup
Cloud Backup
Cloud Sync
2-way and Active Sync
Backup Deduplication
Apple Time Machine Backup
External drive backup
Maximum number of backup job: 400
Hyper Data Protector
Yes
Boxafe
Yes
Office 365 Backup
Google Workspace Backup
Full-text search
Qsirch
Yes
Previews: Photos, music, videos, PDFs, Gmail, and others
Integrate Mac Finder
Advanced picture search
Search filters
QuMagie
Yes
Browse photos
Virtual and smart albums
AI-assisted photo management: People, things, places, and others
Antivirus (free)
Yes
McAfee (License)
Yes
QVPN Service
Yes
Remote Access: PPTP, L2TP/IPSec, OpenVPN, WireGuard, QBelt (QNAP proprietary)
Supported utility and mobile app: Windows, macOS, iOS, and Android
Supported maximum clients: 100
HD Station
Yes
LDAP Server
Yes
RADIUS
Yes
SQL server
Yes
License Center
Yes
Multimedia Console
Yes
Photo Station
Yes
Music Station
Yes
Video Station
Yes
Download Station
Yes
Notes Station
Yes
Qfiling
Yes
Media Streaming add-on
Yes
QmailAgent
Yes
QuWAN
Yes
DA Driver Analyzer
Yes
Q’center
Yes
Q’center Server
Yes
Q’center Agent
Yes
Connect to Q’center
Yes
Virtualization Station
Yes
Supports Virtual machine instances: Windows, Linux, Unix, and Android
VM importing, exporting, cloning, snapshot capturing, backup, and restoration
All function is Fine
Virtual switches: Can create a virtual switch
QTS 5.2.5: GPU pass-through: Not support GPU
QuTS hero h5.2.5: GPU pass-through: GPU function is fine
Suggested number of virtual machine instances: 12
Container Station
Yes
Supported type: LXC/LXD and Docker
Docker Hub Registry
Container importing and exporting
Console mode
Linux Station
Yes
QTS 5.2.5: Supports Ubuntu versions 18.04 and 20.04
QuTS hero h5.2.5: Supports Ubuntu versions 16.04, 18.04, and 20.04
Linux Station Center
Yes
QVR Pro
QTS 5.2.5: Yes
Recording Technique: Index database based
License Type: Perpetual
User-defined trigger events
Metadata
QVR Pro Client (Desktop): Windows, macOS, and QNAP HybridDesk Station
QVR Pro Client (Mobile): Android and iOS
Recording camera streams: H.264
Free built-in camera channels: 8
QVR Elite
Yes
Recording Technique: Standard MP4 file based
License Type: Subscription-based
User-defined trigger events
QVR Pro Client (Desktop): Windows, macOS, and QNAP HybridDesk Station
QVR Pro Client (Mobile): Android and iOS
Recording camera streams: H.264
Free built-in camera channels: 2
QuTS hero h5.2.5: Expandable camera channels: Developing
QVR Pro Client
QTS 5.2.5: Dynamic View Layout
Windows
Mac
HybridDesktop
iOS
Android
QVR Center
Yes
Log management
Central monitoring across multiple servers
QVR Guard
QTS 5.2.5: Yes
Failover design
Viewing task details
Automatic switch between Standby and Takeover modes
QVR Human
QTS 5.2.5: Yes
QVR Face
QTS 5.2.5: Yes
QVR DoorAccess
QTS 5.2.5: Yes
There are no reviews yet.
