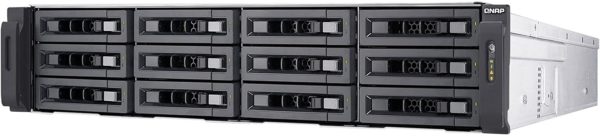

QNAP TES-1885U-D1531-32GR 12 (+6) Bay Turbo NAS

Add to Wishlist

32,399.00 د.إ

Add to Wishlist

QNAP TES-1885U-D1531-32GR 12 (+6)-Bay TurboNAS, SAS 12G, SAS/SATA 6G, Xeon D-1531 2.2GHz, 32GB ECC RAM, 4-LAN, built-in 2 10Gb SFP+ – Brand New

QNAP TES-1885U-D1531-32GR 12 (+6)-Bay TurboNAS, SAS 12G, SAS/SATA 6G, Xeon D-1531 2.2GHz, 32GB ECC RAM, 4-LAN, built-in 2 10Gb SFP+ – Brand New

Powered by an IntelĀ® XeonĀ® D processor, the powerful enterprise-class TES-1885U is open for two operating systems ā€“ either the FreeBSD-based QES or Linux-based QTS. While QES supports ZFS for the utmost reliability and allows near-limitless snapshots, block-level data deduplication and real-time data compression, QTS features Qtier Technology, SSD cache, and an abundance of value-added apps to realize storage efficiency and diverse usage applications. The TES-1885U gives the flexibility to choose from two operating systems, enabling businesses to deploy proper operating systems on multiple TES-1885U based on their needs and goals in different stages.

  • Intel Xeon D multi-core processor
    14nm energy-efficient SoC, supports DDR4 RAM and PCIe Gen.3 per-lane throughput.
  • DDR4 2133 MHz memory
    Supports four DDR4 RAM modules for UDIMM and ECC RDIMM (up to 64GB UDIMM RAM, up to 128GB RDIMM RAM).
  • 12Gb/s SAS controllers
    Supports 12Gb/s SAS hard drives and SSDs for fast data transfer and highly-reliable storage.
  • Hot swappable fans
    Four hot-swappable 6cm cooling fans that can be quickly and easily replaced.
  • 2 x Built-in 10GbE SFP+ ports
    Boosts iSCSI/NFS/CIFS network transfer for virtualization applications, data backup/restoration and massive data transmission.
  • 4 x Gigabit ports
    Ideal for service binding, port trunking, and MPIO configurations.
  • 4 x PCIe slots
    Three high-speed PCIe Gen.3 and one PCIe Gen.2; supports 10GbE/ 40GbE adapters and PCIe NVMe SSD.
  • 6 x 2.5ā€ SATA SSD slots
    Used for caching, high-performance storage pools, or the QES OS drive.

Note: To change the NAS operating system after completing setup, it is necessary to re-initialize the hard disks and delete all stored data. A remote backup is required before switching the NAS operating system

SKU: TES-1885U-D1531-32GR Category: Tags: ,
Model Number TES-1885U-D1531-32GR
Hardware Specification
CPU IntelĀ® XeonĀ® Processor D-1531, 6-core 2.2 GHz
Encryption Acceleration Yes
System Memory Total DIMM slots:

  • 4

Maximum memory:

  • DDR4 128 GB ( 32 GB RDIMM x 4 )

Memory modules pre-installed:

  • 32 GB ECC RAM ( 8 GB RDIMM x 4 )

Note: TES-1885U requires at least 32GB RAM for running QES operating system.
Flash Memory 4 GB DOM
Drive Bay Front:

  • 2.5″ / 3.5″ x 12

Rear:

  • 2.5″ SSD slot x 6
Drive Compatibility Front:

  • SAS 12Gb/s
  • SAS 6Gb/s
  • SATA 6Gb/s HDD and SSD

Rear:

  • SATA 6Gb/s SSD
USB Port 2 x USB 3.0 port (rear)

For QTS OS:

  • The USB slots support pen drives and other USB-ready devices such as printers, UPS, etc.

For QES OS:

  • The USB slots are only reserved for development and debugging.
Gigabit Ethernet Port
  • 2 x SFP+ 10GbE ports
  • 4 x Gigabit ports
LED Indicators
  • 10 GbE
  • Status
  • LAN
  • Storage expansion port status
Buttons System:

  • Power button
  • reset button
Form Factor
  • 2U
  • Rackmount
Dimensions (H x W x D)
  • 88 x 442.5 x 530.5 mm
  • 3.46 x 17.42 x 20.89 inch
Weight Net weight (NAS only):

  • 15.34 kg (33.82 lbs)

Gross weight (with packing and accessories):

  • 21.25 kg (46.85 lbs)
Operating Temperature & Relative Humidity 0-40ĖšC, 5~95% non-condensing, wet bulb: 27ĖšC.
Power Consumption (W) In Operation: 229.53W
Power Supply Unit Redundant power: Input 90~264VAC; 450W x 2
PCIe Slot Number:

  • 4

Slot 1:

  • PCIe Gen.3 x8

Slot 2:

  • PCIe Gen.2 x4

Slot 3:

  • PCIe Gen.3 x4

Slot 4:

  • PCIe Gen.3 x4 or PCIe Gen.3 x8

Note:

  • Slot 4 provides the width of PCIe Gen.3 x8 when slot 3 is not in use.
  • Slot 4 then provides the width of PCIe Gen.3 x4 only when an expansion board is installed in slot 3.
Fan System: 4 x 6 cm smart cooling fan
