8 TB – 2 bays (SATA-600) – HDD 8 TB – USB 3.1 Gen 2 (external)
د.إ2,299.00

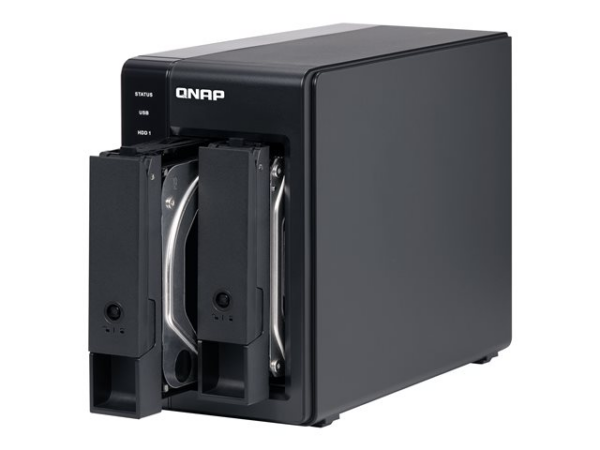

The TR-002 USB 3.1 Gen. 2 RAID expansion enclosure allows you to expand the capacity of your QNAP NAS and PC. The TR-002 can also be utilized as a DAS (Direct-attached Storage) device, allowing you to directly access its content just by connecting it via USB. The TR-002 features two 3.5-inch SATA drive bays with USB 3.1 Gen. 2 Type-C connectivity to bring you a highly-reliable and secure storage capacity expansion solution.
The TR-002 is an ideal storage expansion solution for PCs, especially for laptops which lack the ability to install higher-capacity drives. Featuring two 3.5-inch SATA drive bays and supporting RAID configuration, the TR-002 provides the ability to store a vast number of files and data and to ensure protection against potential drive failure.
The TR-002 supports various RAID configurations. Depending on your requirements, you can switch between hardware- or software-controlled RAID modes. Move the DIP switches to corresponding positions for your ideal RAID mode: Individual, JBOD, RAID 0 or RAID 1. You can also configure the RAID settings from your QNAP NAS, or by using the QNAP External RAID Manager utility on your computer.
Compared with other RAID enclosures, the TR-002 provides software-controlled configurations for greater management flexibility. Users can configure RAID and monitor disk health using Storage & Snapshots Manager on a QNAP NAS, or by using the QNAP External RAID Manager utility on their computer.
| Product Description | QNAP TR-002 – hard drive array |
| Device Type | Hard drive array |
| Total Array Capacity | 8 TB |
| Interface | USB 3.1 Gen 2 |
| Installed Devices / Modules Qty | 2 (max) |
| Supported Drives | SATA-600 |
| Built-in Devices | Led panel |
| Storage Controller | RAID (SATA 6Gb/s) – RAID RAID 0, 1, JBOD |
| Hard Drive | 8 TB HDD – hot-swap – Seagate |
| OS Required | Linux, Microsoft Windows 7 or later, Apple macOS 10.13 or later, QNAP QTS 4.3.6 or later, Microsoft Windows Server 2012 R2 or later |
| Power | AC 120/230 V |
| Dimensions (WxDxH) | 10.2 cm x 21.9 cm x 16.85 cm |
| Device Type | Hard drive array |
| Built-in Devices | Led panel |
| Supported Devices / Modules Qty | 2 |
| Supported Drives | SATA-600 |
| Total Array Capacity | 8 TB |
| HDD Array External Interface | USB 3.1 Gen 2 |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| Data Transfer Rate | 600 MBps |
| Max Storage Devices Qty | 2 |
| RAID Level | RAID 0, RAID 1, JBOD |
| Type | HDD – hot-swap |
| Capacity | 8 TB |
| Manufacturer | Seagate |
| Expansion Bays | 2 hot-swap – 2.5″ / 3.5″ shared |
| Interfaces | 1 x USB 3.1 Gen 2 – 24 pin USB-C |
| OS Required | Linux, Microsoft Windows 7 or later, Apple macOS 10.13 or later, QNAP QTS 4.3.6 or later, Microsoft Windows Server 2012 R2 or later |
| Features | Security lock slot (cable lock sold separately), built-in cooling fan, S.M.A.R.T. support, Hardware RAID, lockable tray |
| Cables Included | 1 x USB-C to USB-A cable |
| Software Included | QNAP External RAID Manager |
| Included Accessories | 2 x keys, cable clip, 6 x screws (for 2.5″ HDD), 8 x screws (for 3.5″ HDD) |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 10.15 Watt |
| Power Provided | 36 Watt |
| Power Consumption Stand by | 2.98 Watt |
| Width | 10.2 cm |
| Depth | 21.9 cm |
| Height | 16.85 cm |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 – 95% (non-condensing) |
| Sound Emission | 17.8 dBA |
