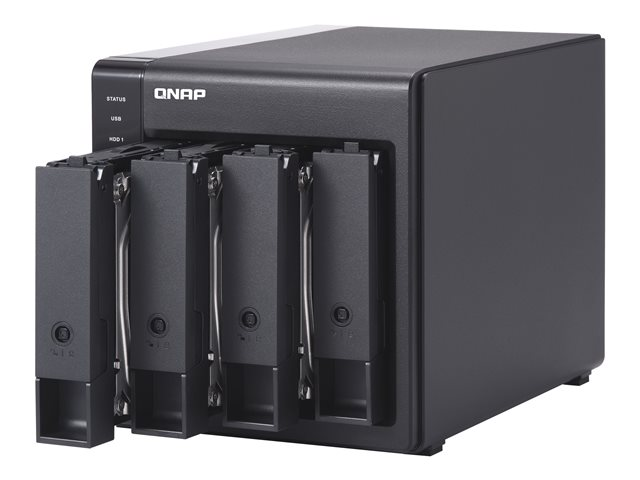

QNAP TR-004 – Hard drive array

Add to Wishlist

32 TB – 4 bays (SATA-300) – HDD 8 TB x 4 – USB 3.1 Gen 1 (external)

د.إ6,999.00

Add to Wishlist

The TR-004 USB 3.2 Gen 1 RAID expansion enclosure allows you to expand the capacity of your QNAP NAS and PC. The TR-004 can also be utilized as a DAS (Direct-attached Storage) device, allowing you to directly access its content just by connecting it via USB. The TR-004 features four 3.5-inch SATA drive bays with multiple RAID configuration options and USB 3.2 Gen 1 Type-C connectivity to bring you a highly reliable and secure storage capacity expansion solution.

Effective storage expansion with RAID support

The TR-004 is an ideal storage expansion solution for PCs, especially for laptops which lack the ability to install larger, higher-capacity drives. Featuring four 3.5-inch SATA drive bays and supporting RAID configuration, the TR-004 provides the ability to store a vast number of files and data and to ensure protection against potential drive failure.

Supports various RAID levels

The TR-004 supports a variety of RAID configurations. Depending on your requirements, you can switch between hardware- or software-controlled RAID modes. Move the DIP switches to corresponding positions for your ideal RAID mode: Individual, JBOD, RAID 0, RAID 1/10 or RAID 5. You can also configure the RAID settings from your QNAP NAS, or by using the QNAP External RAID Manager utility on your computer.

Flexible storage configuration and management

Compared with other RAID enclosures, the TR-004 provides software-controlled configurations for greater management flexibility. Users can configure RAID and monitor disk health using Storage & Snapshots Manager on a QNAP NAS, or by using the QNAP External RAID Manager utility on their computer.

Expand the capacity of your NAS

The TR-004 provides an alternative method for users to expand their NAS storage capacity. By connecting the TR-004 to their NAS and using the Storage & Snapshots Manager, users can easily configure and manage their storage expansion. The TR-004 supports a variety of QNAP NAS storage and file management functions, allowing users to build storage pools, find files with Qsirch and organize files with Qfiling.

SKU: TR-004/32TB-IW Category: Tag:
Product Description QNAP TR-004 – hard drive array
Device Type Hard drive array
Total Array Capacity 32 TB
Interface USB 3.1 Gen 1
Installed Devices / Modules Qty 4 (installed) / 4 (max)
Supported Drives SATA-300
Built-in Devices Led panel
Storage Controller RAID (SATA 3Gb/s) – RAID RAID 0, 1, 5, 10, JBOD
Hard Drive 4 x 8 TB HDD – hot-swap – Seagate
OS Required Linux, Microsoft Windows 7 or later, Apple MacOS X 10.11 or later, QNAP QTS 4.3.6 or later
Power AC 120/230 V
Dimensions (WxDxH) 16.02 cm x 21.9 cm x 16.85 cm
General
Device Type Hard drive array
Chassis
Built-in Devices Led panel
Installed Devices / Modules Qty 4
Supported Devices / Modules Qty 4
Supported Drives SATA-300
Storage
Total Array Capacity 32 TB
HDD Array External Interface USB 3.1 Gen 1
Storage Controller
Type RAID
Interface Type SATA 3Gb/s
Data Transfer Rate 300 MBps
Max Storage Devices Qty 4
RAID Level RAID 0, RAID 1, RAID 5, RAID 10, JBOD
Hard Drive
Type HDD – hot-swap
Capacity 4 x 8 TB
Manufacturer Seagate
Expansion / Connectivity
Expansion Bays 4 (total) / 0 (free) x hot-swap – 2.5″ / 3.5″ shared
Interfaces 1 x USB 3.1 Gen 1 – 24 pin USB-C
System Requirements
OS Required Linux, Microsoft Windows 7 or later, Apple MacOS X 10.11 or later, QNAP QTS 4.3.6 or later
Miscellaneous
Features Security lock slot (cable lock sold separately), built-in cooling fan, S.M.A.R.T. support, Hardware RAID, lockable tray
Cables Included 1 x USB-C to USB-A cable
Compliant Standards ISO 7779
Included Accessories 2 x keys, 12 x screws (for 2.5″ HDD), 16 x screws (for 3.5″ HDD), cable clip
Power
Power Device External power adapter
Voltage Required AC 120/230 V
Power Consumption Operational 18.21 Watt
Power Provided 65 Watt
Power Consumption Stand by 4.17 Watt
Dimensions & Weight
Width 16.02 cm
Depth 21.9 cm
Height 16.85 cm
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 5 – 95% (non-condensing)
Sound Emission 18.1 dBA
