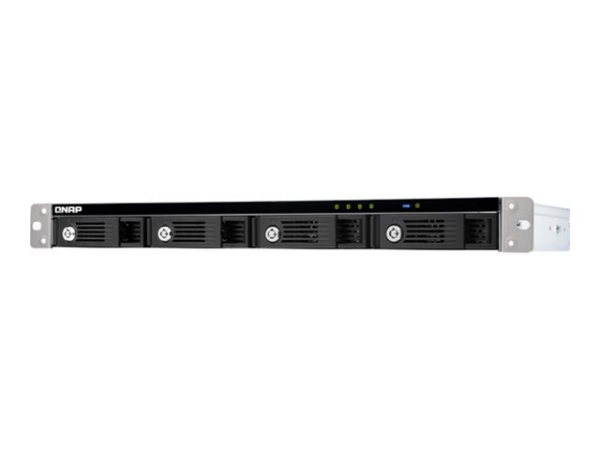

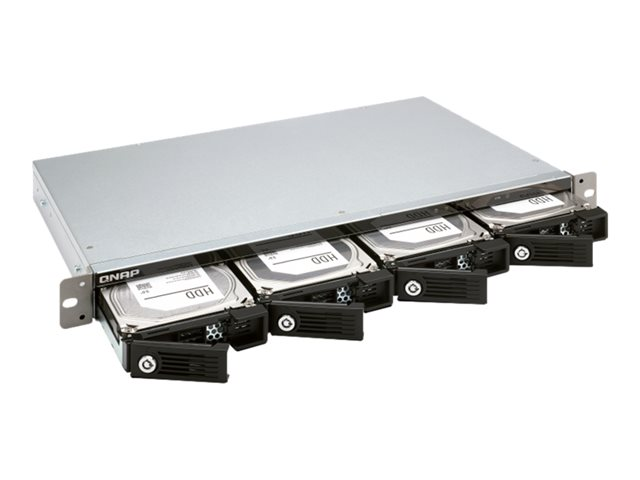

QNAP TR-004U – Hard drive array

Add to Wishlist

4 bays (SATA-300) – USB 3.1 Gen 1 (external) – rack-mountable – 1U

د.إ2,399.00

Add to Wishlist

The TR-004U USB 3.2 Gen 1 RAID expansion enclosure allows you to expand the capacity of your QNAP NAS and PC. The TR-004U can also be utilized as a DAS (Direct-attached Storage) device, allowing you to directly access its content by connecting it via USB. The TR-004U features four 3.5-inch SATA drive bays with multiple RAID configuration options and USB 3.2 Gen 1 Type-C connectivity to bring you a highly-reliable and secure storage capacity expansion solution.

Supports various RAID levels

The TR-004U supports a variety of RAID configurations. Depending on your requirements, you can switch between hardware- or software-controlled RAID modes. Move the DIP switches to corresponding positions for your ideal RAID mode: Individual, JBOD, RAID 0, RAID 1/10 or RAID 5. You can also configure the RAID settings from your QNAP NAS, or by using the QNAP External RAID Manager utility on your computer.

Flexible storage configuration and management

Compared with other RAID enclosures, the TR-004U provides software-controlled configurations for greater management flexibility. Users can configure RAID and monitor disk health using the Storage & Snapshots Manager on a QNAP NAS, or by using the QNAP External RAID Manager utility on their computer.

Use as an alternative to conventional NAS expansion enclosures

As an external hardware RAID device, the TR-004U operates independently and does not require additional NAS system resources.

SKU: TR-004U Category: Tag:
Product Description QNAP TR-004U – hard drive array
Device Type Hard drive array
Enclosure Type Rack-mountable – 1U
Interface USB 3.1 Gen 1
Installed Devices / Modules Qty 0 (installed) / 4 (max)
Supported Drives SATA-300
Storage Controller RAID (SATA 3Gb/s) – RAID RAID 0, 1, 5, 10, JBOD
Storage Controller Quantity 1
Hard Drive No HDD
Power AC 100 – 240 V
General
Device Type Hard drive array
Enclosure Type Rack-mountable – 1U
Chassis
Installed Devices / Modules Qty 0
Supported Devices / Modules Qty 4
Supported Drives SATA-300
Storage
HDD Array External Interface USB 3.1 Gen 1
Storage Controller
Type RAID
Installed Qty 1
Interface Type SATA 3Gb/s
Data Transfer Rate 300 MBps
RAID Level RAID 0, RAID 1, RAID 5, RAID 10, JBOD
Storage Controller (2nd)
Installed Qty 1
Hard Drive
Type No HDD
Expansion / Connectivity
Expansion Bays 4 (total) / 4 (free) x hot-swap – 2.5″ / 3.5″ shared
Interfaces 1 x USB 3.1 Gen 1 – 24 pin USB-C
Miscellaneous
Features Security lock slot (cable lock sold separately), built-in cooling fan
Cables Included 1 x USB-C to USB-A cable
Included Accessories 2 x keys, 12 x screws (for 2.5″ HDD), 16 x screws (for 3.5″ HDD), cable clip, power cable
Power
Voltage Required AC 100 – 240 V
Power Provided 65 Watt
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 5 – 95% (non-condensing)
