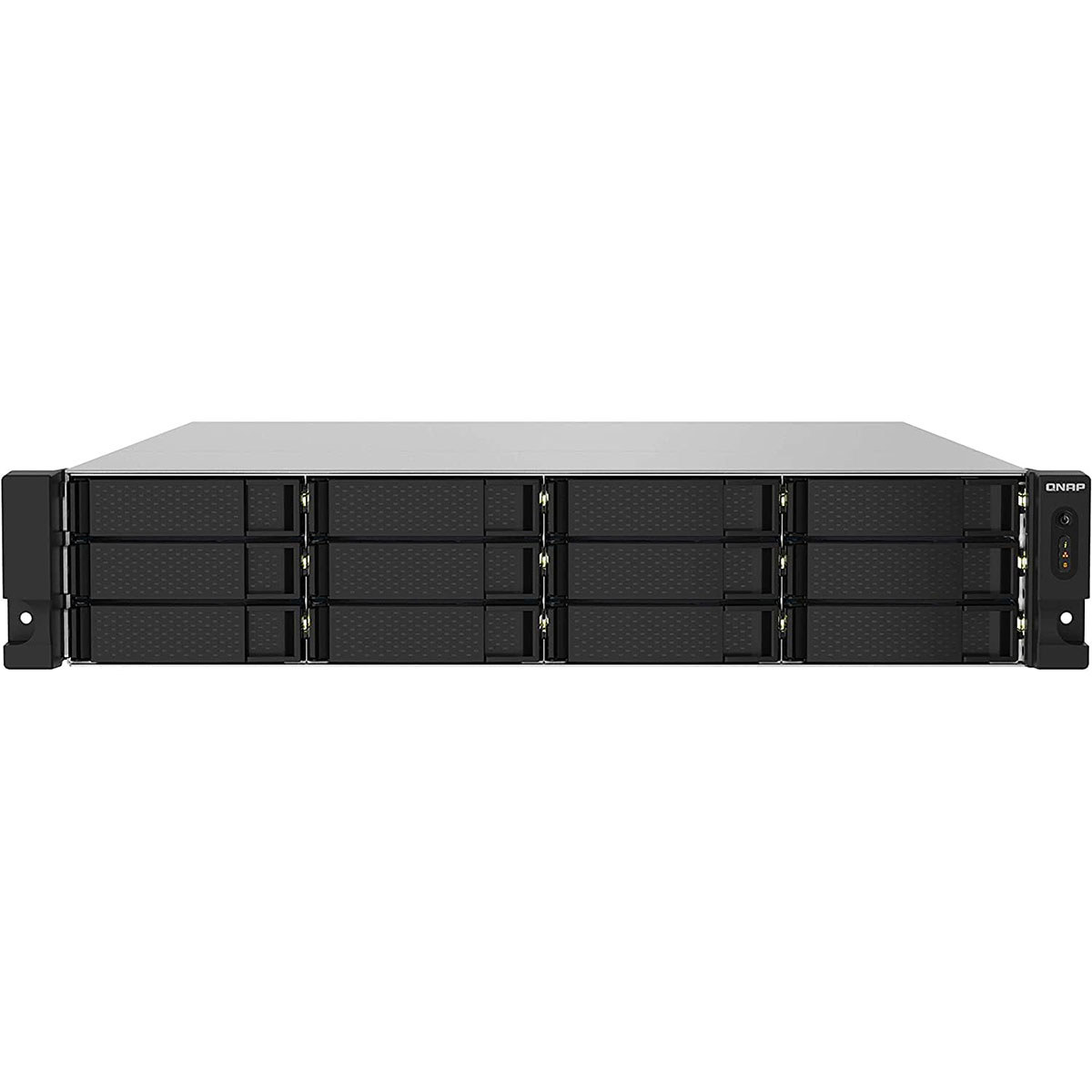

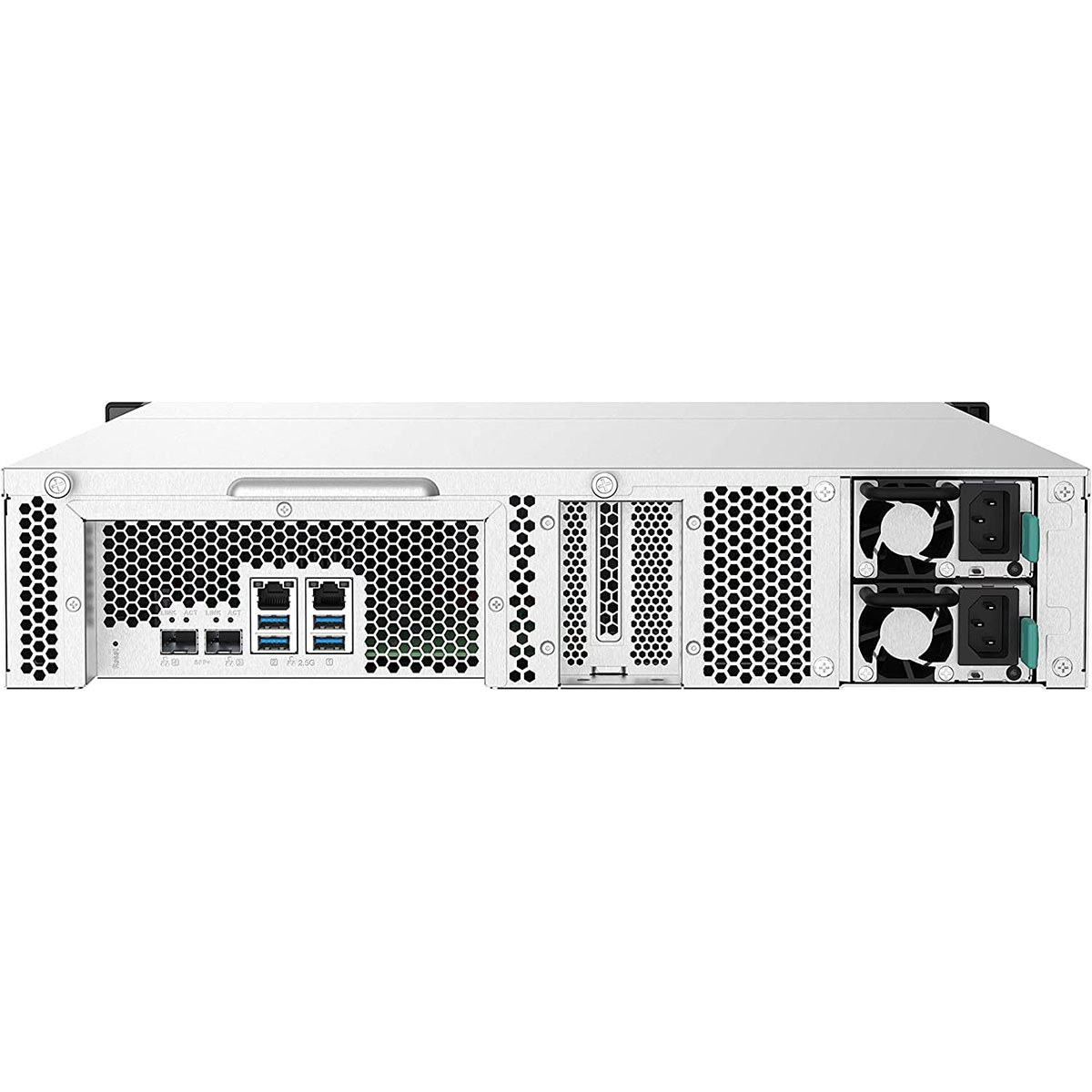

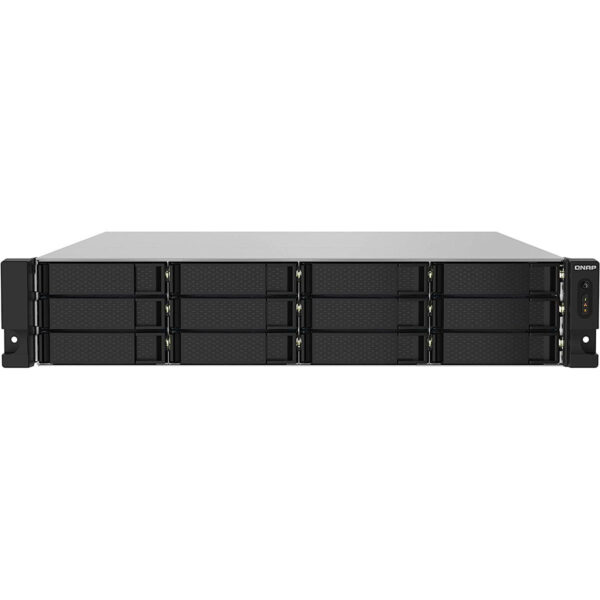

QNAP TS-1232PXU-RP-4G Specifications

Hardware

Hardware
Jump to…
CPU
Annapurna Labs Alpine AL324 64-bit ARM Cortex-A57 4-core 1.7GHz processor

CPU Architecture
64-bit ARM

Floating Point Unit
Yes

Encryption Engine
Yes

System Memory
4GB UDIMM DDR4 (1x 4GB)

Maximum Memory
16GB (1x 16GB)

Memory Slot
1x UDIMM DDR4

Flash Memory
512MB (Dual boot OS protection)

Drive Bay
12 x 3.5″ SATA 6Gb/s, 3Gb/s

Drive Compatibility
3.5″ bays:
3.5-inch SATA hard disk drives
2.5″ SATA hard disk drives
2.5″ SATA solid state drives

Hot-swappable
Yes

M.2 Slot
Optional via a PCIe adapter

SSD Cache Acceleration Support
Yes

2.5 Gigabit Ethernet Port
2 (2.5G/1G/100M/10M)

10 Gigabit Ethernet Port
2x 10GbE SFP+

Wake on LAN (WOL)
Yes
Only the 2.5GbE port

Jumbo Frame
Yes

PCIe Slot
1
Slot 1: PCIe Gen 2 x2
PCIe bandwidth limitations will restrict the NAS 10GbE performance
Card dimensions for PCIe slot:8.67 x 2.71 x 0.74″ (220 x 68.9 x 18.76mm)

USB 3.2 Gen 1 port
4

Form Factor
2U Rackmount

LED Indicators
HDD 1-12, Status, LAN, Storage expansion

Buttons
Power, Reset

Operating Temperature
32 – 104 Degree F (0 – 40 Degree C)

Storage Temperature
-4 – 158 Degree F (-20 – 70 Degree C)

Relative Humidity
5-95% RH non-condensing, wet bulb: 80.6 Degree F (27 Degree C)

Power Supply Unit
250W (x2) PSU, 100 – 240V

Power Consumption
83.57W
Tested with drives fully populated
Operating Mode: Typical

Fan
2x 2.75″ (70mm), 12VDC

System Warning
Buzzer

Max Num of Concurrent Connections (CIFS)
700 – with Max. Memory

Dimensions (H x W x D)
3.48 x 17 x 20″ (88.6 x 432 x 511mm)
Excludes ear hook and the protruding part of the Power Supply Unit

Weight
28.52 lbs (12.94kg)

---

Software

Jump to…
Operating System
QTS 5.2.0

Supported Client Operating Systems
Apple Mac OS 10.10 or later
Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
IBM AIX 7, Solaris 10 or later UNIX
Microsoft Windows 7, 8, 10 and 11
Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022

Supported Browsers
Apple Safari (latest version)
Google Chrome (latest version)
Microsoft Edge (latest version)
Mozilla Firefox (latest version)

Supported Languages
Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish

Storage Pool
Yes

SED Storage Pool
Yes

Maximum Pool size
308 TB

Maximum number of storage pool
128

Volume Type
Thick, Thin, Static

Maximum volume size
250TB
Note: At least 4 GB RAM is required

Maximum number of volume
128

Maximum shared folder size
250TB

Maximum number of shared folder
512

JBOD Expansion
Yes

VJBOD / VJBOD Cloud
Yes

iSCSI Service
Yes

Fibre Channel Service
Yes

LUN Type
Thick, Thin

File-based iSCSI LUN
Yes

Block-based iSCSI LUN
Yes

Maximum LUN size
250TB
Note: At least 4 GB RAM is required

Maximum number of targets LUN
128

LUN feature
LUN Mapping (LUN can be moved between iSCSI and FC)
LUN Masking
WWPN Aliases Import/Export
FC Port Group
FC Port Binding
Multipath IO (MPIO)
Online LUN capacity expansion
LUN snapshot
LUN snapshot replication and clone

Auto Tiering
Yes
Requires minimum 2GB memory

RAID Type
8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
2-bay: JBOD, Single, RAID 0, 1

RAID Group
Yes
To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60).

RAID Group (Contd.)
Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected.

RAID Level Migration
Yes

RAID Expansion (by adding Disk)
Yes

RAID Expansion
Yes (by replacing bigger Disks)

Storage Pool Expansion
Yes (by adding RAID Group)

RAID Hot Spare
Global, Local

RAID Sync/Rebuild/Scrubbing
Yes

Internal drive
EXT4

External drive
EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model)

Disk, Enclosure Locate
Yes

Disk S.M.A.R.T. Scan
Yes

Disk S.M.A.R.T. Data Migration
Yes

Ironwolf Health Management
Yes

Secure Erase
Yes

SSD Trim
Yes

SSD Life Estimation
Yes

Disk Roaming
Yes

Disk Standby
Yes

Volume Snapshot
Yes

LUN Snapshot
Yes

Minimum Snapshot Interval
5 minutes

Snapshot Retention Policy
Yes

Self-serve Snapshot Recovery
Yes

Application Consisted Snapshot
Yes

Snapshot Full Clone
Yes

Snapshot Replica / Vault
Yes

SSD read-only Cache
Yes

SSD read-write cache
Yes

SSD write-only cache
Yes

SSD Cache RAID
0, 1, 5, 6, 10

SSD profiling tool
Yes

External Device Management
Yes

Mount Smart Phone (MTP)
Yes

External RAID Device Management
External Device Mode: Yes
NAS Mode: Yes
(QNAP so on)

File Server
File sharing across Windows, Mac, and Linux/UNIX
Microsoft networking (CIFS/SMB)
Apple networking (AFP)
NFS version 3/4 services

FTP Server
QuFTP
FTP, SFTP and TFTP protocols
FTP over SSL/TLS (explicit FTPS)
FXP support

Maximum FTP connection
1024

File Station (Web)
Yes

Object Storage
Yes

Local user account
4096

Local group account
512

Domain user/group account
200000

Domain Security
Yes

Domain Controller
Yes

Shared folder permission
Yes

Advanced folder permission
Yes, (AFP, CIFS/SMB, FTP, and File Station)

Windows ACL
Yes, (CIFS/SMB)

User quota
Yes

Group quota
Yes

Folder quota
Yes, (Snapshot shared folder)

Home folder
Yes

Resource Monitor
Yes

SNMP
V2, V3

Network recycle bin
Recover files deleted using AFP, CIFS/SMB, and File Station
Automatic cleanup and file type filter

System Log & Notification Center
Log recording: 3,000 event per second

Smart Fan
Yes

Schedule on/off
Yes

Internet protocol
IPv4, IPv6

Virtual Switch
Yes

Port trunking
Yes, (7 modes)

VLAN
Yes

DHCP Server
Yes

DDNS (Dynamic Domain Name Service)
Yes

Network access protection
SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP
With auto-blocking

Security Counsellor
Yes

Malware Remover
Yes

AES 256-bit Volume Encryption
Yes
Validated by FIPS 140-2 CAVP

2-step verification
Yes

Allow/Deny List
Yes

Access Protection
Yes

Service binding
Yes

Firewall
Yes

vSphere Web Client Plug-in
Yes

VMware vSphere VAAI for iSCSI
Yes

VMware vSphere VAAI for NAS
Yes

Windows ODX
Yes

Windows/VMware Snapshot Agent
Yes

HTTP/HTTPS Connections
TLS 1.0/1.1/1.2/1.3

Supports WebDAV Connection
Yes

Supports Virtual Hosts
32

Qsync
Yes
Management Mode: User customization, Central
Qsync client supported platforms: Windows, macOS, Ubuntu, Android, and iOS
Maximum number of version control: 64

HybridMount
Yes
File Cloud Gateway: Concurrent Connections = 20 Upload & 20 Download
Network Drive Mount: Yes
Free cloud gateway sessions: 2

HBS (Hybrid Backup Sync)
Yes
NAS to NAS backup: Yes
Cloud Backup: Yes
Cloud Sync: Yes
2-way and Active Sync: Yes
Apple Time Machine Backup: Yes
External drive backup: Yes
Maximum number of backup job: 400

Boxafe
Yes
Office 365 Backup: Yes
Google Workspace Backup: Yes
Full-text search: Yes

Qsirch
Yes
Previews: Photos, music, videos, PDFs, Gmail, and others
Integrate Mac Finder: Yes
Advanced picture search: Yes
Search filters: Yes

QuMagie
Yes
Browse photos: Yes
Virtual and smart albums: Yes
AI-assisted photo management: People, things, places, and others

Antivirus (free)
Yes

QVPN Service
Yes
Remote Access: PPTP, L2TP/IPSec, OpenVPN, QBelt (QNAP proprietary)
Supported utility and mobile app: Windows, macOS, iOS, and Android
Supported maximum clients: 100

LDAP Server
Yes

RADIUS
Yes

SQL server
Yes

License Center
Yes

Multimedia Console
Yes

Photo Station
Yes

Music Station
Yes

Video Station
Yes

Download Station
Yes

Notes Station
Yes

Qfiling
Yes

Media Streaming add-on
Yes

QmailAgent
Yes

QuWAN
Yes

DA Driver Analyzer
Yes

Q’center
Yes

Q’center Server
Yes

Q’center Agent
Yes

Connect to Q’center
Yes

Container Station
Yes
Supported type: LXC/LXD and Docker
Docker Hub Registry: Yes
Container importing and exporting: Yes
Console mode: Yes

QVR Pro
Yes
Recording Technique: Index database based
License Type: Perpetual
User-defined trigger events: Yes
Metadata: Yes
QVR Pro Client (Desktop): Windows, macOS, and QNAP HybridDesk Station
QVR Pro Client (Mobile): Android and iOS
Recording camera streams: H.264
Free built-in camera channels: 8

QVR Elite
Yes
Recording Technique: Standard MP4 file based
License Type: Subscription-based
User-defined trigger events: Yes
QVR Pro Client (Desktop): Windows, macOS, and QNAP HybridDesk Station
QVR Pro Client (Mobile): Android and iOS
Recording camera streams: H.264
Free built-in camera channels: 2

QVR Pro Client
Yes
Dynamic View Layout: Yes
Windows: Yes
Mac: Yes
HybridDesktop: Yes
iOS: Yes
Android: Yes

QVR Human
Yes

QVR Face
Yes
The maximum number of channels supported varies by NAS model, network configuration, and camera settings

QVR DoorAccess
Yes
