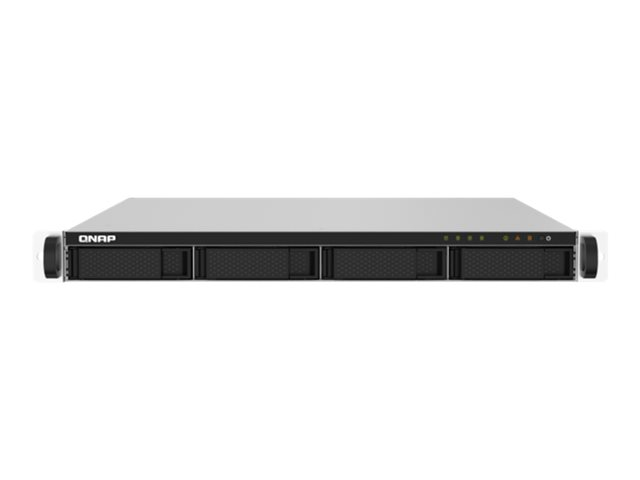

4 bays – 32 TB – rack-mountable – SATA 6Gb/s – HDD 8 TB x 4 – RAID 0, 1, 5, 6, 10, JBOD – RAM 2 GB – 2.5 Gigabit Ethernet / 10 Gigabit Ethernet – iSCSI support – 1U
12,199.00 د.إ
With 10GbE SFP+ and 2.5GbE network ports, the TS-432PXU-RP delivers high network bandwidth to streamline team collaboration and file access. A PCIe Gen 2 ×2 slot allows for installing a QNAP expansion card to add network connectivity, SSD caching capabilities, or wireless connectivity. The TS-432PXU-RP supports file backup and synchronization, secure snapshot protection, and Google G Suite and Microsoft 365 enterprise account backup services, while providing instant recovery whenever needed. Coupled with the support for cloud gateways, building a new hybrid cloud storage solution has never been easier. The TS-432PXU-RP also features a redundant power supply to ensure uninterrupted operation of mission-critical applications.
The TS-432PXU-RP is powered by an Annapurna Labs Alpine AL-324 ARM Cortex -A57 quad-core 1.7 GHz processor with 2GB DDR4 RAM (expandable to 16GB) and SATA 6Gb/s drives to deliver higher performance. With two 10GbE SFP+ and two 2.5GbE network ports, the TS-432PXU-RP provides incredible bandwidth to fulfil high-speed file access, backup/restoration and media transfer, while also allowing the flexible allocation of network resources for individual applications and services.
QNAP provides various high-speed network solutions at attainable price points. The QSW network switches provide managed and unmanaged 10GbE and 2.5GbE options for building high-speed networks. QNAP also offers 10GbE / 5GbE / 2.5GbE network expansion cards and a USB to 5GbE adapter for Windows / Linux devices, allowing all of your workstations to take advantage of high-speed networks.
As SSDs become more affordable, using SSDs on NAS can improve performance without requiring a heavy investment. The TS-432PXU-RP supports SSD cache technology, Qtier auto-tiering storage, and SSD over-provisioning, helping you to balance storage performance, storage allocation, and IT expenses.
HBS (Hybrid Backup Sync) consolidates data backup, recovery, and data synchronization. With high-speed 10GbE connectivity, you can easily back up or sync data to another QNAP NAS, remote server or cloud storage to build a reliable disaster recovery solution. Qsync turns the TS-432PXU-RP into a secure, high-capacity data center for file synchronization. Any file uploaded to the TS-432PXU-RP will be made available for all linked devices, such as computers, laptops, and mobile devices. You can also sync shared folders or create team folders to enhance team collaboration.
The TS-432PXU-RP provides greater convenience in file management. You can quickly find files using Qsirch, organize photos using QuMagie and auto-archive them with Qfiling.
The convenience of Software as a Service (SaaS) solutions such as Google G Suite and Microsoft 365 has led to its adoption by many businesses and organizations. However, many users fail to protect this cloud data against data loss, data recovery limitations, and human error. The TS-432PXU-RP includes QNAP Boxafe, allowing you to back up files, emails, calendars and contacts from Google G Suite and Microsoft 365 to provide an extra layer of data protection for business cloud data.
| Product Description | QNAP TS-432PXU-RP – NAS server – 32 TB |
| Device Type | NAS server |
| Host Connectivity | 2.5 Gigabit Ethernet / 10 Gigabit Ethernet |
| Enclosure Type | Rack-mountable – 1U |
| Total Storage Capacity | 32 TB |
| Installed Devices / Modules Qty | 4 (installed) / 4 (max) |
| Dimensions (WxDxH) | 43.9 cm x 49.9 cm x 4.4 cm |
| Weight | 8.12 kg () |
| Processor | 1 x Annapurna Labs Alpine AL-324 1.7 GHz (Quad-Core) |
| Storage Controller | RAID SATA 6Gb/s RAID RAID 0, 1, 5, 6, 10, JBOD |
| Hard Drive | 4 x 8 TB |
| Networking | 100Mb LAN, GigE, 10 GigE, 2.5 GigE |
| Performance | Concurrent connections (CIFS): 700 – (with maximum memory) Maximum pool size: 308 TB Maximum number of storage pool: 128 Maximum number of volume: 128 Maximum shared folder size: 250 TB Maximum number of shared folder: 512 Maximum number of targets LUN: 256 Minimum snapshot interval: 5 min Maximum FTP connection: 1024 Local user account: 4096 Local group account: 512 Domain user/group account: 200000 Log recording: 3000 events per second Virtual hosts: 32 |
| RAM | 2 GB |
| Power | AC 100-240 V |
| Power Redundancy | Yes |
| Storage Operating System | QNAP QTS 5.0.1 |
| System Requirements | Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later, Oracle Solaris 10 or later, Microsoft Windows 7 / 8 / 10 / 11 |
| Manufacturer Warranty | 3-year warranty |
| Device Type | NAS server |
| Host Connectivity | 2.5 Gigabit Ethernet / 10 Gigabit Ethernet |
| Enclosure Type | Rack-mountable – 1U |
| Total Storage Capacity | 32 TB |
| Installed Devices / Modules Qty | 4 (installed) / 4 (max) |
| Width | 43.9 cm |
| Depth | 49.9 cm |
| Height | 4.4 cm |
| Weight | 8.12 kg () |
| Processors Installed | 1 x Annapurna Labs Alpine AL-324 1.7 GHz |
| Number of Cores | Quad-Core |
| Max Supported Qty | 1 |
| RAM | 2 GB (installed) / 16 GB (supported) – DDR4 |
| Features | Unbuffered |
| Flash Memory Installed | 512 MB |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD |
| Type | HDD |
| Capacity | 4 x 8 TB |
| Data Link Protocol | 100Mb LAN, GigE, 10 GigE, 2.5 GigE |
| Network / Transport Protocol | FTP, DDNS, SFTP, IPv4, IPv6, TFTP, QuFTP |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH |
| Network Services Compatibility | Microsoft CIFS, Server Message Block (SMB), Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV), Network File System v3 (NFS v3), Network File System v4 (NFS v4) |
| Performance | Concurrent connections (CIFS): 700 – (with maximum memory) Maximum pool size: 308 TB Maximum number of storage pool: 128 Maximum number of volume: 128 Maximum shared folder size: 250 TB Maximum number of shared folder: 512 Maximum number of targets LUN: 256 Minimum snapshot interval: 5 min Maximum FTP connection: 1024 Local user account: 4096 Local group account: 512 Domain user/group account: 200000 Log recording: 3000 events per second Virtual hosts: 32 |
| Features | Firewall protection, hardware encryption, VLAN support, wake on LAN (WOL), RADIUS support, Jumbo Frames support, DHCP server, Domain Controller, file station, port trunking, EXT4 file system, SSD trim, FXP support, Qsirch, SQL Server, Network Recycle Bin, VJBOD Cloud, Qsync, QuMagie, Smart Fan, built-in buzzer, QmailAgent, QuWAN, LDAP server, Storage Pool, SED Storage Pool, JBOD Expansion, Disk, Enclosure Locate, Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, Disk Roaming, Disk Standby, Volume Snapshot, Snapshot Retention Policy, Self-serve Snapshot Recovery, Application Consisted Snapshot, Snapshot Full Clone, Snapshot Replica / Vault, SSD read-only Cache, SSD read-write cache, SSD write-only cache, SSD profiling tool, External Device Management, Mount Smart Phone (MTP), Object Storage, shared folder permission, advanced folder permission, group quota, folder quota, home folder, Resource Monitor, Virtual Switch, Allow/Deny List, Access Protection, Service binding, HD Station, DA Driver Analyzer, floating point unit, SSD cache acceleration support, fibre channel service, file-based iSCSI LUN, block-based iSCSI LUN, LUN mapping, LUN masking, WWPN Aliases Import/Export, FC Port Group, FC Port Binding, multipath IO (MPIO), online LUN capacity expansion, LUN snapshot, LUN snapshot replication and clone, auto tiering, RAID Group, RAID Level Migration, RAID Expansion, Storage Pool Expansion, RAID Hot Spare, RAID Sync/Rebuild/Scrubbing, SSD life estimation, domain security, security counselor, malware remover, 2-step verification, HybridMount, Hyper Data Protector, Windows ACL, schedule on/off, SSD Cache RAID |
| Encryption Algorithm | TLS 1.0, FIPS 140-2, 256-bit AES, TLS 1.1, TLS 1.2, TLS 1.3 |
| Expansion Bays | 4 (total) / 0 (free) x hot-swap – 2.5″ / 3.5″ |
| Expansion Slots | 1 (total) / 1 (free) x PCI Express 2.0 x2 1 (total) / 0 (free) x DIMM 288-pin |
| Interfaces | 2 x 2.5 Gigabit Ethernet – RJ-45 4 x USB 3.2 Gen 1 – Type A 2 x Ethernet 10Gb – SFP+ |
| Cables Included | 1 x network cable |
| Features | Built-in 2 cooling fans, Secure Erase, dual boot |
| Included Accessories | 12 x flat head screws (for 2.5″ HDD), 16 x flat head screws (for 3.5″ HDD), 2 x hangers, 2 x holders, 2 x power cables |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 53.343 Watt (with drives fully populated) |
| Power Provided | 250 Watt |
| Storage Operating System | QNAP QTS 5.0.1 |
| Software Included | IronWolf Health Management |
| OS Required | Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later, Oracle Solaris 10 or later, Microsoft Windows 7 / 8 / 10 / 11 |
| Service & Support | Limited warranty – 3 years |
| Shipping Weight | 11.12 kg |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 – 95% RH (non-condensing) |
