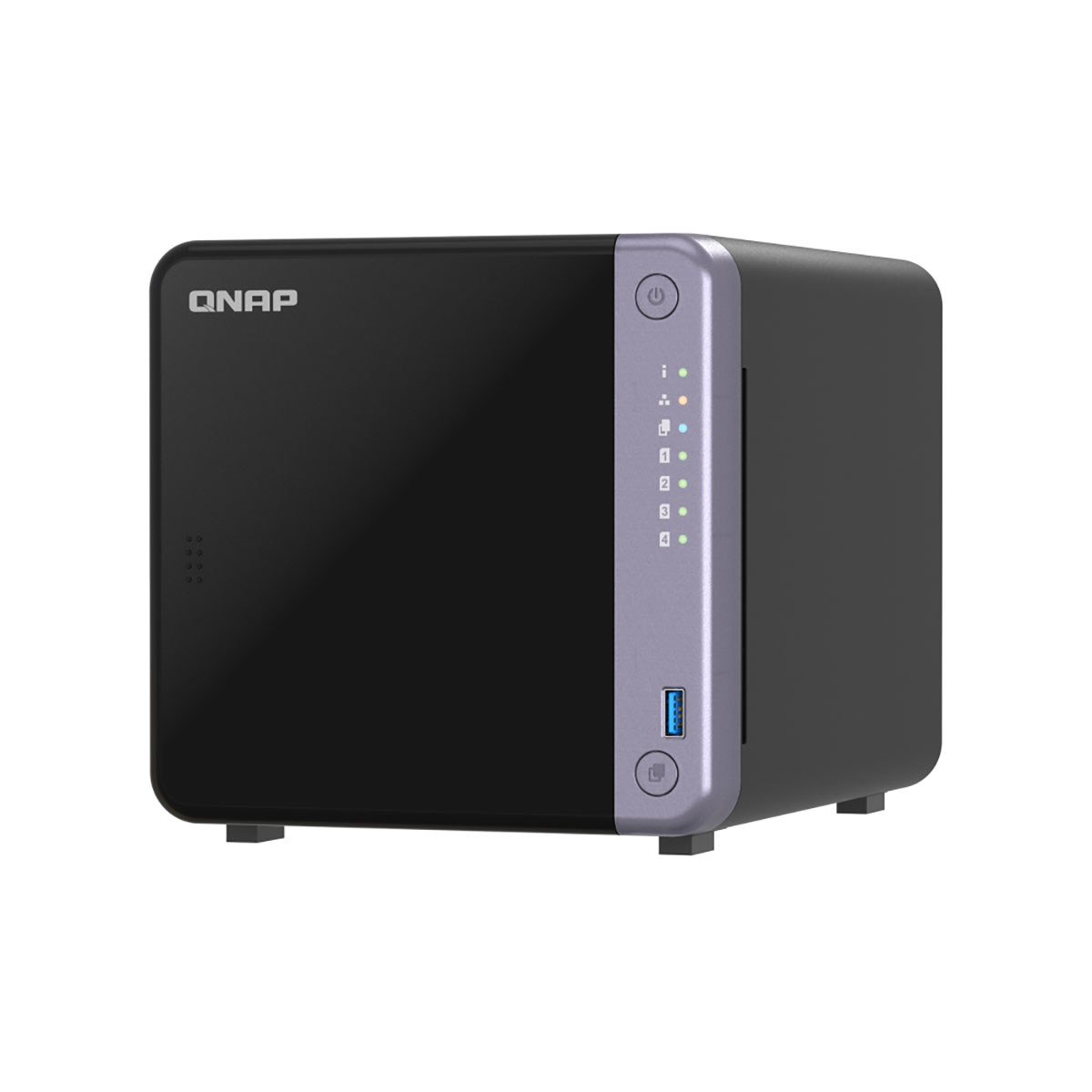

QNAP TS-432X-4G 4-Bay NAS Enclosure, Diskless

Cost-effective 4-bay 10GbE NAS, designed to accelerate your workloads

Unlock the potential of 4-bay storage capacity and harness the speed of 10GbE with the TS-432X! This versatile storage solution offers secure backup, rapid transmission, support for container applications, and much more. Cost-effective yet powerful, the TS-432X streamlines workflow efficiency without exceeding your budget.

Quad-core for multitasking
Quad-core 2.0GHz processor and 4 GB non-ECC RAM (expandable to 16 GB, supports ECC RAM)

High-speed 10GbE SFP+
Single-port 10GbE connectivity enhances transfer speed for intensive data transmission and shortens backup time.

2.5GbE is a must!
Leverage SMB Multichannel or Port Trunking with built-in dual 2.5GbE ports to increase bandwidth and access speed.

PCIe Gen 3 expandability
Install a PCIe expansion card to add 2.5/5/10GbE connectivity or M.2 SSD slots to the NAS for more I/O potential.

Faster USB transfer and backup
Two USB 3.2 Gen 1 (5Gbps) ports with One Touch Copy support allow faster backup to/from USB devices.

Centralized backup and snapshot protection
Easily back up different types of data and endpoints and create snapshots regularly to prevent ransomware threats.

High-performance yet energy-efficient quad-core processor
The TS-432X adopts a quad-core processor with built-in 4 GB of memory, offering excellent read/write performance at low power consumption, making it reliable for hosting versatile NAS applications in office.

Processor
Annapurna Labs, an Amazon company Alpine AL524 quad-core 2.0 GHz processor

Memory
Built-in 4 GB non-ECC RAM, upgradable to 16 GB and supports ECC RAM

Encryption Engine
Supports AES 256-bit encryption

Connections
2 x USB 3.2 Gen 1 (5Gbps) ports

Enhance seamless workflows with 10GbE network
Create a flexible, high-speed network environment to optimize team collaboration.

• Quick direct access for individuals: Utilize the TS-432X’s built-in 2.5GbE and 10GbE ports to achieve faster LAN speeds
• Efficient collaboration with multiple users: Implement the TS-432X with expansion cards and QNAP 10GbE SFP+ switches to connect more devices

Multiply bandwidth for streamlined tasks
By using the built-in network ports or installing an expansion card, you can maximize the network bandwidth of the TS-432X by aggregating two or more same-speed network ports. Choose from the following options according to your needs:

SMB Multichannel:
Suited for small/home office users. Fulfill multiplied available bandwidth between NAS and directly-connected clients to accelerate file transfer speed.

Port Trunking:
Recommended for midsized to large businesses where IT infrastructure involves network switches and multiple end-users.

Abundant I/O capabilities with PCIe expansion
The TS-432X features a PCIe Gen 3 x 4 slot, supporting a variety of expansion cards to maximize application versatility.

QM2 card: QM2-2P2G2T
Add two 2.5GbE ports and two M.2 SSD slots at the same time.

QM2 card: QM2-2P-344A
Add two M.2 SSDs to create a storage pool or enable SSD caching.

Network expansion card: QXG-10G2T
Add two 10GbE ports that support five speeds.

Store, backup and video surveillance. We enable ALL.

Smart storage
QNAP’s exclusive apps provide easy-to-use file storage and collaboration tools. Snapshots also help protect important data from Ransomware.

Snapshots protection

Volume and LUN snapshots
“Snapshots” record the complete status of your NAS system and data. Certain data and files can be reverted when needed.

Versioning
Regularly create snapshots. The more snapshots you have, the lower the risk of data loss.

Smart snapshot space management
QNAP supports smart snapshot space management to ensure there is enough storage space for new snapshots.

Boost production efficiency

Qsync
Sync files between NAS and multiple computers or mobile devices.

Qsirch
Quickly find documents, media files, and emails using key words, colors, or faces.

Qfiling
Create filing rules and set schedules to automatically archive files into dedicated folders based on their category.

QuMagie
TS-432X leverages powerful AI photo management and creates smart photo albums based on people, objects, locations, and events, making photos easy to find and share.

Simple Backup
Superior hardware performance with an all-in-one Backup Solution to speed up backup/recovery tasks.

Back up all your devices

PC and Mac backup
Sync your computer files to NAS with Qsync. TS-432X also supports Time Machine for Mac computers.

File server backup
Supports multiple protocols such as Rsync, FTP and CIFS for backing up different file servers.

SaaS Business Backup Solution
Use Boxafe to easily back up Google Workspace and Microsoft 365 business account data.

Google Photos and WordPress backup
The exclusive MARS service enables backing up Google Photos and WordPress databases and files to NAS.

Remote Replication for NAS data

Back up data from one NAS to another NAS
Back up data on a local NAS to another remote NAS using Hybrid Backup Sync. You can also deduplicate your backup using QuDedup to save time and storage space.

Back up NAS data to the Cloud
Hybrid Backup Sync supports mainstream public cloud services for backing up or syncing data from NAS to Cloud.

Cloud Storage Gateway
VJBOD Cloud connects cloud object storage (Bucket) and back up data from NAS to the cloud.

Back up NAS snapshots
Use Snapshot Replica to back up NAS snapshots to another NAS and recover when needed.

Video Surveillance
Turn the TS-432X into a professional, all-in-one Surveillance NAS, which is compatible with over 8,000 IP cameras and ONVIF-compatible cameras.

Easy to set up:
Easily set up an integrated surveillance system by purchasing a subscription or perpetual licenses based on your needs. Choose the license you prefer >

Real-time monitoring from everywhere:
Monitor live feeds and receive alert event notifications from client applications on PCs or mobile devices.

Surveillance failover:
Implement a QVR Guard failover server to automatically takeover recording tasks if the host server fails.

Host container applications
If you are curious about Docker or are a hobbyist developer, Container Station on the TS-432X integrates Docker lightweight virtualization technology, allowing you to run all kinds of self-contained applications. You can download apps from the built-in Docker Hub, including popular and fully-configured applications, and deploy them with just one click. From smart homes to multimedia applications, you can explore your creativity and bring containerized applications to life.

Besides Container Station, more apps (including tools for backup/sync, content management, communications, download, and entertainment) are available from the App Center. Simply click and install on-demand to further extend the functionality of your TS-432X.

Enhanced cybersecurity and data protection
The TS-432X is loaded with comprehensive privilege settings and protection measures to block malicious attackers and ensure that data in the NAS are secure.

Account security
Administrators can manage the access permissions of multiple NAS through shared folder permission settings. Multi-factor authentication (MFA) is supported to prevent password cracking and unauthorized access.

Secure remote access
Access your NAS from anywhere using myQNAPcloud Link, providing secure connections via the Internet. You can also enhance security by setting up a VPN connection to your NAS using QVPN.

NAS Firewall
QuFirewall restricts and blocks suspicious packets sent by proxy servers and the onion routing (Tor) based on user rules. It also dynamically updates its block list based on detected malicious packets.

Malware Protection
Malware Remover regularly scans your NAS using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.

Drive health check & failure prediction
The DA Drive Analyzer leverages ULINK cloud-based AI to predict the expected lifespan of drives, assisting you in planning future drive replacements to protect against NAS downtime and data loss.

Comprehensive overview
Quickly check life prediction scores and drive health status.

Visual insights
Identify drive information in each drive bay/slot, and view recommendations.

Advanced diagnostics & alerts
Acquire proactive detection and receive replacement warnings based on 24-hour disk usage data collection.
