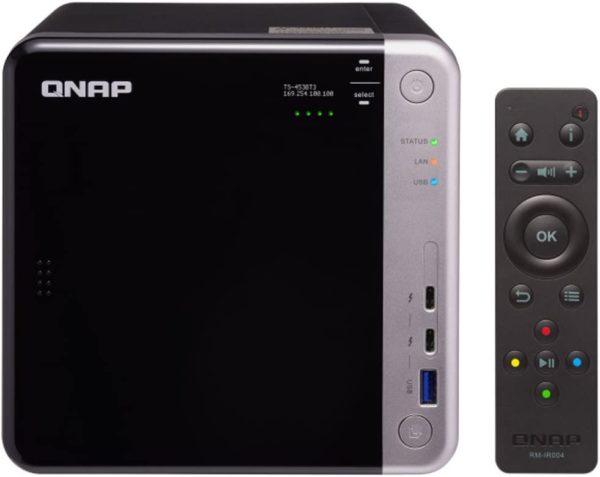

QNAP TS-453BT3-8GB-US 4-Bay NAS Server

Add to Wishlist

AED4,999.00

Add to Wishlist

QNAP TS-453BT3 TS-453BT3-8G-US Intel Celeron J3455 Quad-Core Thunderbolt 3 NAS Server – Diskless – Brand New

QNAP TS-453BT3 TS-453BT3-8G-US Intel Celeron J3455 Quad-Core 4-Bay 8GB (2 x 4GB) RAM Thunderbolt 3 NAS Server – Diskless – Brand New

QNAP TS-453BT3-8G 4-bay Network Attached Storage Server includes …

  • 5 x USB 3.0 (1 x Front, 4 x Rear)
  • 2 x Ethernet RJ45 1GbE LAN ports
  • 1 x 10GBASE-T RJ-45
  • 2 x Thunderbolt 3
  • 1 x PCIe 2.0 Slot
  • 8GB (2 x 4GB) DDR3L SODIMM
  • 4 drive bays
  • Intel Celeron J3455 quad-core 1.5 GHz, up to 2.3 GHz
  • Accepts 3.5″ and 2.5″ SATA hard drives and 2.5″ SATA solid state drives
  • Encryption capable

Featuring dual Thunderboltā„¢ 3 ports, coupled with M.2 SSD caching and 10GBASE-T connectivity, the TS-453BT3 provides an ideal environment for professional collaborative media editing and high-speed file sharing. The TS-453BT3 features a sleek new look with an OLED panel and two capacitive touch buttons. With powerful hardware capabilities and feature-rich productivity tools, the TS-453BT3 provides the best NAS solution for media studios or small creative workgroups looking to greatly simplify their workflows.

  • High-speed Thunderbolt 3 with SMB protocol, allowing Mac and Windows users to collaborate on media editing.
  • Dual M.2 SATA 6 Gb/s SSD allows for setting up caching or storage pool, improving file access efficiency.
  • 10GbE connectivity accelerates virtualization applications and file sharing across devices.
  • Qtier auto-tiering technology and SSD caching enable 24/7 optimized storage efficiency
  • 4K media playback and real-time transcoding; directly view creative works on an HDTV via HDMI output.
  • Qfiling automates file organization, greatly improving work efficiency
SKU: TS-453BT3-8G-US Category: Tags: ,
Model Number TS-453BT3-8G / TS-453BT3-8G TS-453BT3-8G-US
Hardware Specification
CPU Processor: Intel Celeron J3455 quad-core 1.5 GHz, burst up to 2.3 GHz
Architecture: 64-bit
Graphics: Intel HD Graphics 500
Encryption Engine: AES-NI
System Memory 8 GB RAM (2 x 4 GB DDR3L)
Maximum Memory 8 GB (2 x 4 GB)
Memory Slot 2 x SODIMM DDR3L
Drive Bay 4 x SATA 6 Gbps
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
M.2 SSD Slot 2 x M.2 2280 SATA 6 Gbp/s SSD
Note:
The M.2 SSD is not included as standard.
SSD Cache Acceleration Support
  • Drive bays 1 to 4
  • M.2 slots 1 to 2
  • Optional: SSD using PCIe expansion slot
Hot-swappable Yes
The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.
10 Gigabit Ethernet Port 1 x 10GBASE-T RJ-45
Gigabit Ethernet Port 2 x RJ45
PCIe Slot 1 x PCIe 2.0 x2

Note:
1. Pre-installed with a QM2 expansion card (QM2-2S10G1TB) that includes a 10GbE 10GBASE-T port and two M.2 SATA SSD slots.
2. The M.2 SATA SSD slots on this QM2 card only support M.2 2280 SATA 6Gb/s SSD, please check the compatibilities before purchase.
Thunderbolt Port 2 x Thunderbolt 3
USB Port 5 x USB 3.0 (Front: 1 x One Touch Copy; Back: 4)
HDMI Output 2 x HDMI 1.4b (up to 3840 x 2160 resolution at 30 Hz)
Audio
  • 2 x 3.5 mm dynamic microphone jacks
  • 1 x 3.5 mm line-out jack
  • 1 x speaker

Note: You cannot use the speakers and the line-out jack simultaneously.
Display Panel Monochrome OLED display with capacitive sensing Enter and Select buttons
USB One Touch Copy Front: USB 3.0 Type-A
IR sensor QNAP RM-IR004 remote control (MCE compatible)
Form Factor Tower
Dimensions (H x W x D) 168 x 170 x 226 mm
6.61 x 6.69 x 8.90 inch
Weight Net: 2.51kg(5.53 lbs)/ Gross: 4.05kg (8.93 lbs)
Power Supply Unit 120W, 100-240V AC, 50/60Hz
Fan System: 1 x 12 cm
Operating Temperature & Relative Humidity 0 to 40ĖšC (32 to 104ĖšF), 5 to 95% non-condensing, wet-bulb 27ĖšC (80.6ĖšF)
Security Slot Kensington security slot
