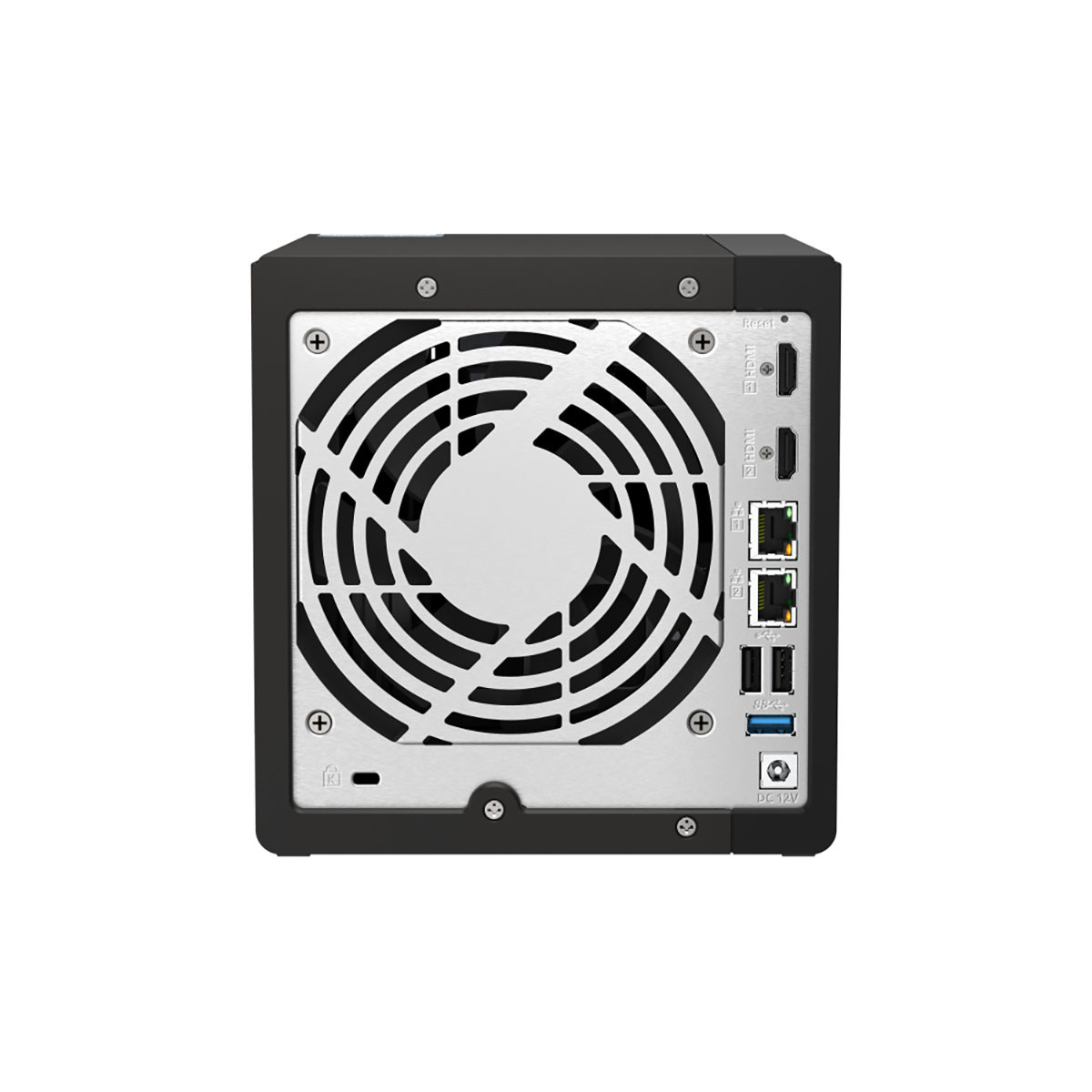

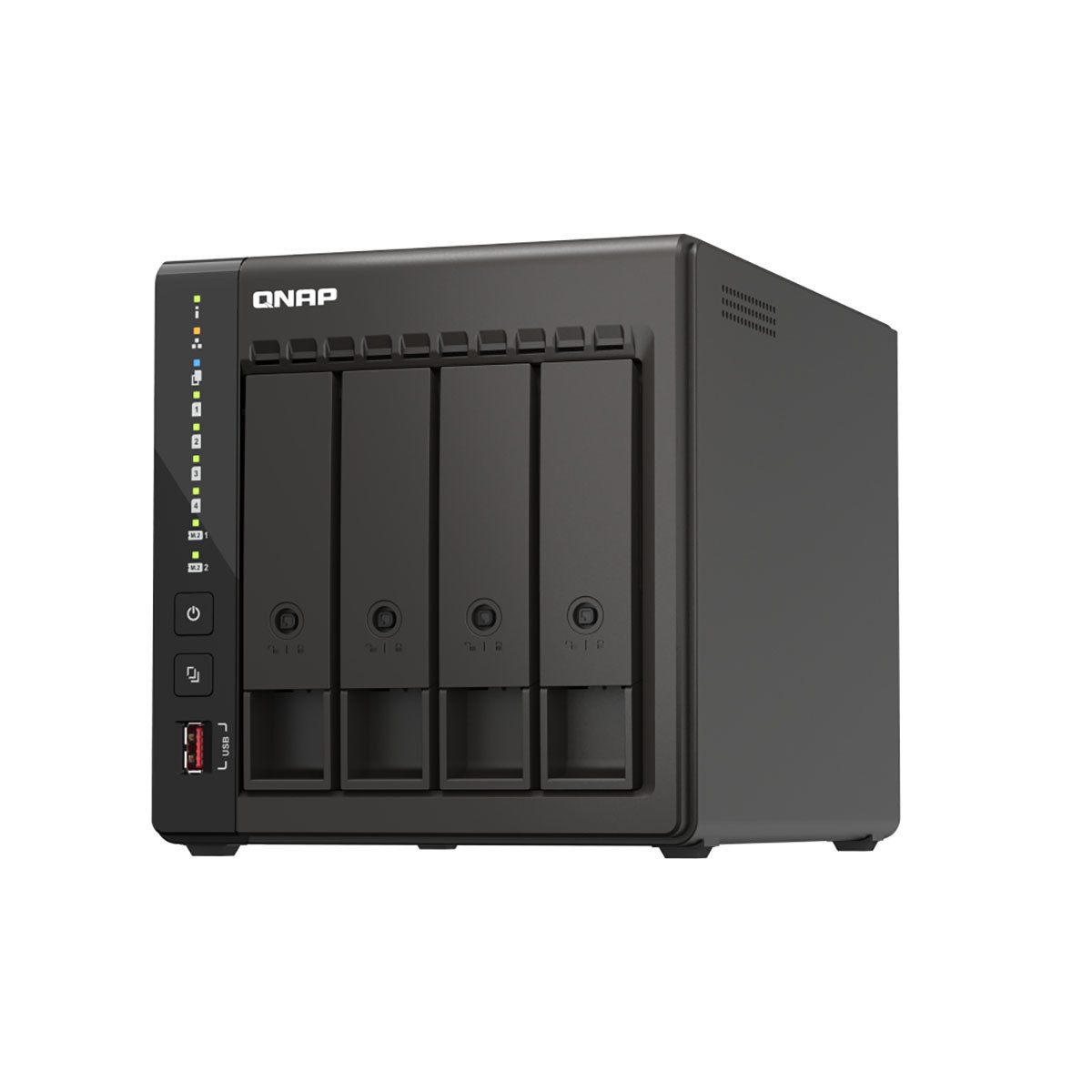

QNAP TS-453E-8G 4-Bay NAS Enclosure, Diskless
Key Features
- Utilize the 4-Bay NAS enclosure for secure data storage and reliable backups at home or in the office.
- Experience fast performance with SSD cache acceleration, perfect for quick access to frequently used files.
- Enjoy remote access to your files from anywhere, ensuring your data is always within reach with this NAS.
- Set up your personal cloud storage solution easily, ideal for sharing and syncing files across devices.
- Protect your valuable data with advanced RAID configurations, enhancing data security and reliability.
- Stream 4K multimedia content seamlessly with HDMI output, transforming your NAS into a home media server.
AED3,899.00
About QNAP TS-453E
Dual 2.5GbE, 8GB RAM, and long-term availability
The TS-453E features 2.5GbE connectivity, 8GB RAM, and M.2 slots for NVMe SSD caching to deliver high performance for applications such as surveillance systems, virtual machines, file servers or backup servers. Dual HDMI outputs also provide direct multimedia playback and robust surveillance monitoring. QNAP will provide long-term availability and support for the TS-453E, providing a great choice for businesses requiring matching NAS models deployed in multiple locations.
The TS-453E uses the QTS operating system by default. You will be able to switch to using the QuTS hero operating system. QuTS hero provides benefits such as ZFS data integrity and WORM technology to prevent data tampering. (Switching to QuTS hero is supported starting from QTS 5.2.1.)
Dual 2.5GbE ports
2.5 times faster network speed with existing CAT5e cables; supports port trunking to deliver up to 5Gbps.
Dual M.2 2280 PCIe slots
Attain greater NAS performance by installing M.2 2280 NVMe PCIe SSDs (sold separately) or Edge TPU.
8GB RAM onboard
System performance and multitasking is optimized with 8GB RAM.
Long-term model
The TS-453E will be available and supported by QNAP for an extended period, up to 2029.
Dual HDMI output
The dual-screen extension can be used for surveillance or 4K high-resolution video playback.
Expand storage capacity
Supports USB expansion enclosures (see the compatibility list).
Intel quad-core processor burst up to 2.6 GHz with AES-NI encryption
Processor
Intel Celeron J6412 quad-core processor (burst up to 2.6GHz)
RAM
Onboard 8 GB (Since January 2024)
Encryption
The Intel AES-NI encryption engine boosts encryption performance while maintaining the confidentiality of NAS data.
USB ports
• 2 x USB 3.2 Gen2
• 2 x USB 2.0
Long-term availability
The TS-453E is powered by an Intel Celeron J6412 processor and will be available and supported for an extended period. This long-term availability makes the TS-453E an ideal choice for MSP, SI, and other IT-related businesses requiring matching NAS models for long-term projects.
24/7 surveillance solution for stores and branch offices
The TS-453E is a one-stop surveillance solution for centrally recording/managing multiple cameras and surveillance servers based in your offices, stores, and other working spaces.
• Retail
• Public transport facilities
• Offices
Record/monitor your environment
QVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-453E and enjoy simplified camera management, storage space allocation, camera live viewing and playback.
Centrally manage up to 32 surveillance servers
If your business requires simultaneously managing multiple recording servers, then install QVR Center on the TS-453E. With QVR Center you can manage up to 32 surveillance servers and 10,000+ cameras with an easy-to-use interface.
Faster image identification with integrated Intel OpenVINO AI engine.
With integrated Intel OpenVINO AI computing resources, the TS-453E accelerates AI image recognition performance without impacting other applications or services. QNAP AI Core primarily works with the QuMagie application.
Transform your network with a wallet-friendly 2.5GbE switch
Upgrading your network shouldn’t break the bank, and 2.5GbE connectivity provides immediately noticeable improvements compared to standard 1GbE. QNAP offers 2.5GbE switches that supports Multi-Gigabit NBASE-T and allows you to use existing CAT5e cables to connect multiple computers and NAS, assisting organizations in implementing high-speed, secure and scalable network environments without going over budget.
Dual 4K HDMI outputs for surveillance monitoring or multimedia display
The TS-453E supports hardware decoding and real-time transcoding. The dual HDMI outputs support up to 4K (3840 x 2160p) @30Hz, providing great benefits for applications like surveillance, video production/editing, industrial design and professional photography that demand on-image resolution and color realism as well as intensive media storage, transfer and display.
Comprehensive backup and disaster recovery solution
The TS-453E supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.
PC/Laptop backup
For Windows, install NetBak Replicator to back up your PC to QNAP NAS. In macOS, just set up the built-in Time Machine to secure your data.
Remote backup for NAS
Hybrid Backup Sync makes it easy to back up data from a TS-453E to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.
VM backup
Enjoy license-free VMware and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.
SaaS backup
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google Workspace and Microsoft Office 365 to the NAS.
Cloud backup for NAS
Use Hybrid Backup Sync to back up NAS data to myQNAPcloud Storage or other mainstream cloud space. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.
QuDedup technology
Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.
WordPress backup
Enjoy efficient WordPress backup/restore and site migration by leveraging the user-friendly Multi-Application Recovery Service (MARS), and easily batch backup WordPress files and database to the TS-453E with backup scheduling.
Multi-version snapshots mitigate ransomware threats
The TS-453E supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.
Volume and LUN snapshots
Take snapshots in seconds and revert the entire volume/LUN back to a specific point in time to prevent loss of important data.
Instantly restore snapshots
Snapshot content can be quickly restored to a local NAS, or restored on a folder/file basis to a local/remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side.
Back up snapshots
Multiply data protection by backing up snapshot files! Replicate volume/LUN snapshots in the TS-453E to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.
All-in-one solution for hosting virtual machines and containers
By running multiple virtual machines and containers on the TS-453E, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.
Virtualization Station
Run multiple Windows, Linux, UNIX, Android, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without needing additional physical servers.
Container Station
Experience Docker, LXD, and Kata Containers lightweight virtualization technologies, download apps from the built-in Docker Hub Registry, import/export containers, and create abundant microservices.
Linux Station
Run Linux applications (including apps from the Software Center) directly on the NAS and remotely access the Linux desktop from a web browser. The open-source Linux platform is also ideal for Internet of Things development.
Comprehensive security and privilege settings
The TS-453E is loaded with flexible privilege settings and security measures. Besides IP blocking, QNAP Authenticator, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.
myQNAPcloud secures remote access
myQNAPcloud allows convenient connection to the TS-453E through the Internet without any complex DDNS settings. To ensure your remote access service is secure, myQNAPcloud strengthens keys on SSL Certificates to 2048-bits.
Simplified privilege settings
The TS-453E supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.
QuFirewall protection
Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.
QNAP TS-453E Features
-
4-bay NAS supporting both 3.5″ and 2.5″ SATA HDDs/SSDs for flexible storage
-
Intel Celeron J6412 quad-core processor for efficient performance
-
Dual 2.5GbE ports for high-speed data transfer and smooth networking
-
PCIe slot for expansion with 10GbE networking or SSD caching
-
HDMI output for direct multimedia streaming and surveillance applications
QNAP TS-453E Specifications
Hardware
Hardware
Jump to…
CPU
Intel Celeron J6412 4-core/4-thread processor, burst up to 2.6 GHz
CPU Architecture
64-bit x86
Graphic Processors
Intel UHD Graphics
Floating Point Unit
Yes
Encryption Engine
Yes (AES-NI)
Hardware-accelerated Transcoding
Yes
System Memory
8 GB SODIMM DDR4 (1x 8 GB)
Maximum Memory
16 GB (2x 8GB)
Memory Slot
2x SODIMM DDR4
Flash Memory
4GB (Dual boot OS protection)
Drive Bay
4x 3.5″ SATA 6Gb/s
Drive Compatibility
3.5″ SATA hard disk drives
2.5″ SATA solid state drives
Hot-swappable
Yes (Not supported M.2 SSD)
M.2 Slot
2x M.2 2280 PCIe Gen 3 x2
SSD Cache Acceleration Support
Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M)
2 (2.5G/1G/100M/10M)
Wake on LAN (WOL)
Yes
Jumbo Frame
Yes
USB 2.0 port
Yes
USB 3.2 Gen 2 (10Gbps) Port
2x Type-A
HDMI Output
2x HDMI 1.4b (up to 3840 x 2160 @ 30Hz)
Form Factor
Tower
LED Indicators
Power/Status, LAN, USB, HDD1-4
Buttons
Power, Reset, USB Auto Copy
Operating Temperature
32 – 104 Degree F (0 – 40 Degree C)
Storage Temperature
-4 – 158 Degree F (-20 – 70 Degree C)
Relative Humidity
5-95% RH non-condensing, wet bulb: 27 Degree C (80.6 Degree F)
Power Supply Unit
90W adapter, 100-240V
Power Consumption: Disk Standby Mode
28.974
Power Consumption
35.79 W (Operating Mode, Typical)
Fan
1x 120mm, 12VDC
System Warning
Buzzer
Kensington Security Slot
Yes
Max. Number of Concurrent Connections
1500 (with Max. Memory)
Dimensions (H x W x D)
6.5 x 6.31 x 8.68″ (16.51 x 16.02 x 22.04cm)
Weight
7.72 lbs (3.50kg)
Software
Jump to…
Operating System
QTS 5.2.3
QuTS hero h5.2.3
Supported Client Operating Systems
Apple Mac OS 10.10 or later
Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
IBM AIX 7, Solaris 10 or later UNIX
Microsoft Windows 7, 8, 10 and 11
Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022
Supported Browsers
Apple Safari (latest version)
Google Chrome (latest version)
Microsoft Edge (latest version)
Mozilla Firefox (latest version)
Supported Languages
Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish
Storage Pool
Yes
SED Storage Pool
Yes
Maximum Pool size
QTS 5.2.3: 308 TB
QuTS hero h5.2.3: 5 PB
Maximum number of storage pool
128
Volume Type
QTS 5.2.3: Thick, Thin, Static
QuTS hero h5.2.3: Thick, Thin
Maximum volume size
QTS 5.2.3: 250 TB
Maximum number of volume
QTS 5.2.3: 128
Maximum shared folder size
QTS 5.2.3: 250 TB
QuTS hero h5.2.3: 5 PB
Maximum number of shared folder
QTS 5.2.3: 512
QuTS hero h5.2.3: 256
JBOD Expansion
Yes
VJBOD / VJBOD Cloud
Yes
iSCSI Service
Yes
LUN Type
Thick, Thin
File-based iSCSI LUN
QTS 5.2.3: Yes
Block-based iSCSI LUN
Yes
Maximum LUN size
QTS 5.2.3: 250 TB
QuTS hero h5.2.3: 1024 TB
Maximum number of targets LUN
QTS 5.2.3: 128
QuTS hero h5.2.3: 256
LUN feature
QTS 5.2.3:
LUN Mapping
LUN Masking
WWPN Aliases Import/Export
Multipath IO (MPIO)
Online LUN capacity expansion
LUN snapshot
LUN snapshot replication and clone
Auto Tiering
QTS 5.2.3: Yes
RAID Type
QTS 5.2.3:
8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
2-bay: JBOD, Single, RAID 0, 1
QuTS hero h5.2.3:
8-bay (and more): Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, 60, Triple Mirror, Triple Parity
6-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, Triple Mirror, Triple Parity
RAID Type (Contd.)
4-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, Triple Mirror, Triple Parity
3-bay: Single, RAID 0 (Stripe), 1, 5, Triple Mirror, Triple Parity
2-bay: Single, RAID 0 (Stripe), 1
RAID Group
Yes
RAID Level Migration
QTS 5.2.3: Yes
RAID Expansion (by adding Disk)
QTS 5.2.3: Yes
RAID Expansion
Yes (by replacing bigger Disks)
Storage Pool Expansion
Yes (by adding RAID Group)
RAID Hot Spare
Global, Local
RAID Sync/Rebuild/Scrubbing
Yes
End-to-End data integrity
QuTS hero h5.2.3: Yes
Silent error detection and self-healing
QuTS hero h5.2.3: Yes
Internal drive
QTS 5.2.3: EXT4
QuTS hero h5.2.3: ZFS
External drive
EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT
QTS 5.2.3: Optional for ARM model
Disk, Enclosure Locate
Yes
Disk S.M.A.R.T. Scan
Yes
Disk S.M.A.R.T. Data Migration
Yes
Ironwolf Health Management
Yes
Secure Erase
Yes
SSD Trim
Yes
SSD Life Estimation
Yes
Disk Roaming
Yes
Disk Standby
Yes
Volume Snapshot
Yes
LUN Snapshot
Yes
Minimum Snapshot Interval
QTS 5.2.3: 5 minutes
QuTS hero h5.2.3: 1 minute
Snapshot Retention Policy
Yes
Self-serve Snapshot Recovery
Yes
Application Consisted Snapshot
Yes
Snapshot Full Clone
Yes
Snapshot Instant Clone
QuTS hero h5.2.3: Yes
Snapshot Replica / Vault
Yes
SSD read-only Cache
Yes
SSD read-write cache
Yes
SSD write-only cache
Yes
SSD read & write log cache
QuTS hero h5.2.3: Yes
SSD dedicated ZIL cache
QuTS hero h5.2.3: Yes
SSD Cache RAID
QTS 5.2.3: 0, 1, 5, 6, 10
QuTS hero h5.2.3: 0, 1, 10 (journal)
SSD profiling tool
Yes
External Device Management
Yes
Mount Smart Phone (MTP)
Yes
External RAID Device (QNAP so on)
Management (External Device Mode)
Management (NAS Mode)
File Server
File sharing across Windows, Mac, and Linux/UNIX
Microsoft networking (CIFS/SMB)
Apple networking (AFP)
NFS version 3/4 services
FTP Server
QuFTP (QTS 5.2.3 only)
FTP, SFTP and TFTP protocols
FTP over SSL/TLS (explicit FTPS)
FXP support
Maximum FTP connection
1024
Shared Folder Data Compression
QuTS hero h5.2.3: Yes
Shared Folder Data Deduplication
QuTS hero h5.2.3: Yes
Shared Folder WORM
QuTS hero h5.2.3: Yes
File Station (Web)
Yes
Object Storage
Yes
Local user account
4096
Local group account
512
Domain user/group account
QTS 5.2.3: 200000
QuTS hero h5.2.3: 16,000
Domain Security
Yes
Domain Controller
Yes
Shared folder permission
Yes
Advanced folder permission
QTS 5.2.3: Yes, (AFP, CIFS/SMB, FTP, and File Station)
Windows ACL
Yes
QTS 5.2.3: CIFS/SMB
User quota
Yes
Group quota
Yes
Folder quota
Yes
QTS 5.2.3: Snapshot shared folder
Home folder
Yes
Resource Monitor
Yes
SNMP
V2, V3
Network recycle bin
Recover files deleted using AFP, CIFS/SMB, and File Station
Automatic cleanup and file type filter
System Log & Notification Center
Log recording: 3,000 event per second
Smart Fan
Yes
Schedule on/off
Yes
Internet protocol
IPv4, IPv6
Virtual Switch
Yes
Port trunking
Yes, (7 modes)
VLAN
Yes
DHCP Server
Yes
DDNS (Dynamic Domain Name Service)
Yes
Network access protection
SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP (with auto-blocking)
Security Counselor
Yes
Malware Remover
Yes
AES 256-bit Volume Encryption validated
Yes (by FIPS 140-2 CAVP)
2-step verification
Yes
Allow/Deny List
Yes
Access Protection
Yes
Service binding
Yes
Firewall
Yes
vSphere Web Client Plug-in
Yes
VMware vSphere VAAI for iSCSI
Yes
VMware vSphere VAAI for NAS
Yes
Windows ODX
Yes
Windows/VMware Snapshot Agent
Yes
HTTP/HTTPS Connections
TLS 1.0/1.1/1.2/1.3
Supports WebDAV Connection
Yes
Supports Virtual Hosts
32
Qsync
Yes
Management Mode: User customization, Central
Qsync client supported platforms: Windows, macOS, Ubuntu, Android, and iOS
Maximum number of version control: 64
HybridMount
Yes
File Cloud Gateway:
QTS 5.2.3: Concurrent Connections = 20 Upload & 20 Download
QuTS hero h5.2.3: Concurrent Connections = 80 Upload & 80 Download
Network Drive Mount
Free cloud gateway sessions: 2
HBS (Hybrid Backup Sync)
Yes
NAS to NAS backup
Cloud Backup
Cloud Sync
2-way and Active Sync
Backup Deduplication
Apple Time Machine Backup
External drive backup
Maximum number of backup job: 400
Hyper Data Protector
Yes
Boxafe
Yes
Office 365 Backup
Google Workspace Backup
Full-text search
Qsirch
Yes
Previews: Photos, music, videos, PDFs, Gmail, and others
Integrate Mac Finder
Advanced picture search
Search filters
QuMagie
Yes
Browse photos
Virtual and smart albums
AI-assisted photo management: People, things, places, and others
Antivirus (free)
Yes
McAfee (License)
Yes
QVPN Service
Yes
Remote Access: PPTP, L2TP/IPSec, OpenVPN, WireGuard (QTS 5.2.3 only), QBelt (QNAP proprietary)
Supported utility and mobile app: Windows, macOS, iOS, and Android
Supported maximum clients: 100
HD Station
Yes
LDAP Server
Yes
RADIUS
Yes
SQL server
Yes
License Center
Yes
Multimedia Console
Yes
Photo Station
Yes
Music Station
Yes
Video Station
Yes
Download Station
Yes
Notes Station
Yes
Qfiling
Yes
Media Streaming add-on
Yes
QmailAgent
Yes
QuWAN
Yes
DA Driver Analyzer
Yes
Q’center
Yes
Q’center Server
Yes
Q’center Agent
Yes
Connect to Q’center
Yes
Virtualization Station
Yes
Supports Virtual machine instances: Windows, Linux, Unix, and Android
VM importing, exporting, cloning, snapshot capturing, backup, and restoration: All function is Fine.
Virtual switches: Can create a virtual switch
GPU pass-through:
QTS 5.2.3: Not support GPU
QuTS hero h5.2.3: GPU function is fine
Suggested number of virtual machine instances: 4
Container Station
Yes
Supported type: LXC/LXD and Docker
Docker Hub Registry
Container importing and exporting
Console mode
Linux Station
Yes
(Linux Station) Supports Ubuntu versions:
QTS 5.2.3: 18.04, and 20.04
QuTS hero h5.2.3: 16.04, 18.04, and 20.04
Linux Station Center
Yes
QVR Pro
QTS 5.2.3: Yes
Recording Technique: Index database based
License Type: Perpetual
User-defined trigger events
Metadata
QVR Pro Client (Desktop): Windows, macOS, and QNAP HybridDesk Station
QVR Pro Client (Mobile): Android and iOS
Recording camera streams: H.264
Free built-in camera channels
QVR Elite
Yes
Recording Technique: Standard MP4 file based
License Type: Subscription-based
User-defined trigger events
QVR Pro Client (Desktop): Windows, macOS, and QNAP HybridDesk Station
QVR Pro Client (Mobile): Android and iOS
Recording camera streams: H.264
Free built-in camera channels: 2
Expandable camera channels: Developing (QuTS hero h5.2.3 only)
QVR Pro Client
QTS 5.2.3: Yes
Dynamic View Layout
Windows
Mac
HybridDesktop
iOS
Android
QVR Center
Yes
Log management
Central monitoring across multiple servers
QVR Guard
QTS 5.2.3: Yes
Failover design
Viewing task details
Automatic switch between Standby and Takeover modes
QVR Human
QTS 5.2.3: Yes
QVR Face
QTS 5.2.3: Yes
QVR DoorAccess
QTS 5.2.3: Yes
There are no reviews yet.
