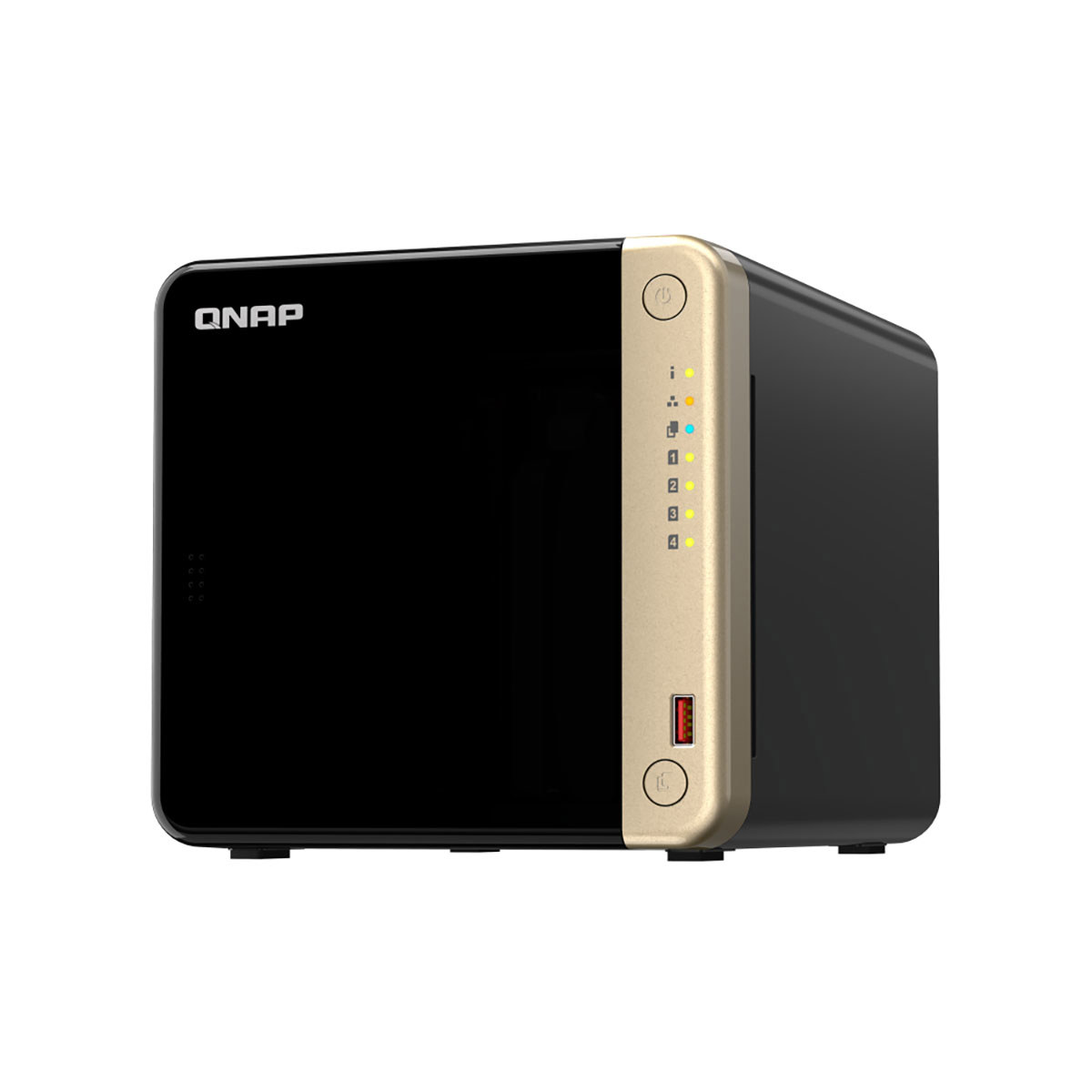

QNAP TS-464-8G 4-Bay Desktop NAS Enclosure, Bundle with 4x Seagate IronWolf 8TB SATA III 3.5″ Internal NAS Hard Drive
Key Features
- Utilize the TS-464-8G NAS enclosure for centralized data storage and easy file management.
- Safeguard your critical data with comprehensive RAID configuration options for data security.
- Enjoy fast data accessibility with dual 2.5GbE ports, boosting your network transfer speed.
- Scale your storage as needed with this 4-bay NAS, perfect for growing businesses.
- Stream 4K HDMI content directly from your NAS, enhancing your home media experience.
- Run virtual machines & containers using Virtualization Station on this powerful NAS server.
AED7,799.00
About QNAP TS-464
Bye-bye Gigabit NAS, hello 2.5GbE NAS.
TS-464 is a compact 4-bay NAS with superior performance. Supporting up to 72 TB storage and 4 TB M.2 SSD caching at an affordable price, the TS-464 fulfills your multitasking challenges for file management, backup, collaboration, and video conversion.
The TS-464 uses the QTS operating system by default. You will be able to switch to using the QuTS hero operating system. QuTS hero provides benefits such as ZFS data integrity and WORM technology to prevent data tampering. (Switching to QuTS hero is supported starting from QTS 5.2.1.)
2.5GbE is a must!
TS-464 is as fast as a single-port 10GbE NAS with up to 589 MB/s transfer speeds by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.
Quad-core for multitasking
Perform additional tasks, stream more media, and have more services running with an Intel quad-core processor optimized for multitasking.
Smooth video conversion
Built-in GPU for enhanced video conversion, allowing videos to be smoothly streamed from the NAS to mobile devices.
Upgrade to dual-port 10GbE
Futureproof your network connection by installing a PCIe dual-port 10GbE network card that delivers up to 1,647 MB/s transfer speed.
Faster USB transfer
Two USB 3.2 Gen 2 (10Gbps) ports allow faster backup to/from USB devices.
More M.2 NVMe SSDs
If two M.2 slots aren’t enough, install a QM2 PCIe expansion card for more M.2 SSD slots.
TS-464-8G
Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz, 8 GB SODIMM DDR4 (1 x 8 GB)
2.5GbE NAS is a must in 2024
With increasing availability on switches, motherboards, and laptops, 2023 is the year of 2.5GbE. The 2.5GbE TS-464 NAS is as fast as a single-port 10GbE NAS. By setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports to unleash network potential and increase fault tolerance, TS-464 delivers up to 589 MB/s transfer speeds.
New-generation quad-core processor for optimized performance
Processor
Intel Celeron N5095 quad-core processor, burst up to 2.9 GHz
Memory
Built-in 8 GB DDR4 memory
GPU
Built-in Intel UHD Graphics to speed up video processing and graphical computing
Encryption Engine
Features Intel AES-NI 256 hardware-accelerated encryption to boost system performance while securing sensitive data.
Upgrade to dual-port 10GbE with a PCIe network card
With a superior hardware design, you can install a dual-port 10GbE network card QXG-10G2TB in the TS-464. Combining 10GbE networking, quad-core processor, and M.2 SSD caching, the TS-464 unleashes its full performance potential.
Expand storage capacity up to 16 hard drives
TS-464 supports a storage capacity of up to 72 TB by installing four 3.5-inch 24 TB hard drives in RAID 5. By connecting a TL-D1600S QNAP storage expansion unit, you can add an additional twelve hard drives to the TS-464 to achieve up to 330TB storage space to meet growing storage requirements.
Accelerate AI-powered image recognition and caching with TPU and PCIe expansion
TS-464 has two M.2 PCIe Gen 3 slots for installing NVMe SSD (including Apacer, Micron, Seagate, WD, and more) or Edge TPU.
Install M.2 NVMe SSDs for cache acceleration or efficient tiered storage
If you have a huge number of small files requiring read/write operations, you can easily boost IOPS of TS-464 by configuring its two M.2 SSDs as a cache disk.
When transmitting bigger files, you can create a storage pool with two M.2 SSDs. With Qtier automatically moving hot data to SSD and cold data to hard drives, TS-464 allows you to enjoy exceptional application performance.
Accelerate AI-powered image recognition with TPU
By leveraging a Edge TPU to QNAP AI Core (the AI-powered engine for image recognition), the TS-464 can perform high-speed face and object recognition. Edge TPU enables QuMagie to quickly process thousands of photos with high-speed AI Image recognition and classification, and QVR Face to analyze real-time video for instant facial recognition.
Abundant I/O capabilities with PCIe expansion
QNAP offers a wide range of expansion cards to add versatile functions to your NAS. The TS-464 has one PCIe Gen 3 x2 slot that supports various expansion cards for expanding application potential.
QM2 card – QM2-2P10G1TB
Add a 10GbE port and two M.2 SSD slots at the same time.
QM2 card – QM2-2P-344A
Add two M.2 SSDs to create a storage pool with larger capacity caching with the built in M.2 SSDs.
Wi-Fi 6 adapter
Install a Wi-Fi 6 adapter to turn the TS-464 into a Wi-Fi NAS, allowing accessing NAS data via wireless network.
One Touch Copy backup with USB 3.2 Gen 2
TS-464 provides two 10Gbps USB 3.2 Gen 2 ports for faster file transfer to/from USB 3.2 Gen 2 devices. The One Touch Copy button also allows you to back up the contents of USB devices to the TS-464 with a single button press.
Smoother mobile experience with GPU
Taking a lot of photos with your smartphone? Qfile mobile app will help you free up space by automatically backing up photos to the TS-464. With Intel UHD Graphics, the TS-464 greatly speeds up converting videos to 1080p / 720p, allowing for smooth streaming to mobile devices over varying mobile network speeds.
Use your NAS like a PC
QNAP’s exclusive Virtualization Station enables running multiple Windows/Linux virtual machines. By connecting a keyboard, mouse, and HDMI monitor, you can easily use the TS-464 as a PC.
QTS 5, Fast, smooth, and easy-to-use!
The TS-464 comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.
Brighter. Smoother. You’ll like it.
When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker.
Get started with the notice board
When performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.
Smooth and reactive user interface
Whether clicking buttons, switching between apps, expanding/collapsing windows – every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps.
Switch to QuTS hero operating system for optimal data integrity and reliability
The TS-464 also supports QuTS hero – QNAP’s ZFS-based NAS operating system, providing end-to-end data integrity, WORM protection, data reduction (inline data deduplication, compression, and compaction), and much more.
Backup. Storage. Surveillance QNAP is your best choice.
Simple Backup
Superior hardware performance with an all-in-one Backup Solution to speed up backup/recovery tasks.
Back up all your devices
PC and Mac backup
Sync your computer files to NAS with Qsync. TS-464 also supports Time Machine for Mac computers.
License-free VM backup
Back up multiple VMware and Hyper-V VMs using Hyper Data Protector.
File server backup
Supports multiple protocols such as Rsync, FTP and CIFS for backing up different file servers.
SaaS Business Backup Solution
Use Boxafe to easily back up Google Workspace and Microsoft 365 business account data.
Google Photos and WordPress backup
The exclusive MARS service enables backing up Google Photos and WordPress databases and files to NAS.
Remote Replication for NAS data
Back up data from one NAS to another NAS
Back up data on a local NAS to another remote NAS using Hybrid Backup Sync. You can also deduplicate your backup using QuDedup to save time and storage space.
Back up NAS data to the Cloud
Hybrid Backup Sync supports mainstream public cloud services for backing up or syncing data from NAS to Cloud.
Cloud Storage Gateway
VJBOD Cloud connects cloud object storage (Bucket) and back up data from NAS to the cloud.
Back up NAS snapshots
Use Snapshot Replica to back up NAS snapshots to another NAS and recover when needed.
Smart storage
QNAP’s exclusive apps provide easy-to-use file storage and collaboration tools. Snapshots also help protect important data from Ransomware.
Snapshots protection
Volume and LUN snapshots
“Snapshots” record the complete status of your NAS system and data. Certain data and files can be reverted when needed.
Versioning
Regularly create snapshots. The more snapshots you have, the lower the risk of data loss.
Smart snapshot space management
QNAP supports smart snapshot space management to ensure there is enough storage space for new snapshots.
Boost production efficiency
Qsync
Sync files between NAS and multiple computers or mobile devices.
Qsirch
Quickly find documents, media files, and emails using key words, colors, or faces.
Qfiling
Create filing rules and set schedules to automatically archive files into dedicated folders based on their category.
QuMagie
TS-464 leverages powerful AI photo management and creates smart photo albums based on people, objects, locations, and events, making photos easy to find and share.
QNAP TS-464 Features
-
4-bay NAS supporting 3.5″ and 2.5″ SATA HDDs/SSDs for flexible storage
-
Intel Celeron N5105/N5095 quad-core processor for reliable performance
-
Dual 2.5GbE ports for high-speed data transfers and smooth connectivity
-
PCIe slot for expansion with 10GbE networking, SSD caching, or additional functionality
-
4K HDMI output for direct multimedia playback and surveillance applications
QNAP TS-464 Specifications
Hardware
Hardware
Jump to…
CPU
Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9GHz
CPU Architecture
64-bit x86
Graphic Processors
Intel UHD Graphics
Floating Point Unit
Yes
Encryption Engine
Yes (AES-NI)
Hardware-accelerated Transcoding
Yes
System Memory
8 GB SODIMM DDR4 (1x 8 GB)
Maximum Memory
16 GB (2x 8GB)
Memory Slot
2x SODIMM DDR4
Flash Memory
4GB (Dual boot OS protection)
Drive Bay
4x 3.5″ SATA 6Gb/s
Drive Compatibility
3.5″ SATA hard disk drives
2.5″ SATA solid state drives
Hot-swappable
Yes (Not supported M.2 SSD)
M.2 Slot
2x M.2 2280 PCIe Gen 3 x1
SSD Cache Acceleration Support
Yes
2.5 Gigabit Ethernet Port
2 (2.5G/1G/100M/10M) (2.5G/1G/100M)
5 Gigabit Ethernet Port
Optional via PCIe expansion card (5G/2.5G/1G/100M)
10 Gigabit Ethernet Port
Optional via PCIe expansion card
Wake on LAN (WOL)
Yes
Jumbo Frame
Yes
PCIe Slot
1x Slot 1: PCIe Gen 3 x2
USB 2.0 port
2x
USB 3.2 Gen 2 (10Gbps) Port
2x Type-A
IR Sensor
Yes (Optional QNAP RM-IR004 remote control)
HDMI Output
1, HDMI 2.1 (up to 4096 x 2160 @ 60Hz)
Form Factor
Tower
LED Indicators
Power/Status, LAN, USB, HDD1-4
Buttons
Power, USB copy, Reset
Operating Temperature
32 – 104 Degree F (0 – 40 Degree C)
Storage Temperature
-4 – 158 Degree F (-20 – 70 Degree C)
Relative Humidity
5-95% RH non-condensing, wet bulb: 27 Degree C (80.6 Degree F)
Power Supply Unit
90W adapter, 100-240V
Power Consumption: Disk Standby Mode
21.618
Power Consumption
40.536 W (Operating Mode, Typical)
Fan
1x 120mm, 12VDC
System Warning
Buzzer
Kensington Security Slot
Yes
Max. Number of Concurrent Connections
1500 (with Max. Memory)
Dimensions (H x W x D)
6.5 x 6.69 x 8.92″ (16.51 x 16.99 x 22.65cm)
Weight
4.98 lbs (2.25kg)
Software
Jump to…
Operating System
QTS 5.2.5
QuTS hero h5.2.5
Supported Client Operating Systems
Apple Mac OS 10.10 or later
Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
IBM AIX 7, Solaris 10 or later UNIX
Microsoft Windows 7, 8, 10 and 11
Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022
Supported Browsers
Apple Safari (latest version)
Google Chrome (latest version)
Microsoft Edge (latest version)
Mozilla Firefox (latest version)
Supported Languages
Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish
Storage Pool
Yes
SED Storage Pool
Yes
Maximum Pool size
QTS 5.2.5: 308 TB
QuTS hero h5.2.5: 5 PB
Maximum number of storage pool
128
Volume Type
QTS 5.2.5: Thick, Thin, Static
QuTS hero h5.2.5: Thick, Thin
Maximum volume size
QTS 5.2.5: 250 TB
Maximum number of volume
QTS 5.2.5: 128
Maximum shared folder size
QTS 5.2.5: 250 TB
QuTS hero h5.2.5: 5 PB
Maximum number of shared folder
QTS 5.2.5: 512
QuTS hero h5.2.5: 256
JBOD Expansion
Yes
VJBOD / VJBOD Cloud
Yes
iSCSI Service
Yes
Fiber Channel Service
Yes
LUN Type
Thick, Thin
File-based iSCSI LUN
QTS 5.2.5: Yes
Block-based iSCSI LUN
Yes
Maximum LUN size
QTS 5.2.5: 250 TB
QuTS hero h5.2.5: 1024 TB
Maximum number of targets LUN
QTS 5.2.5: 128
QuTS hero h5.2.5: 256
LUN feature
QTS 5.2.5:
LUN Mapping (LUN can be moved between iSCSI and FC)
LUN Masking
WWPN Aliases Import/Export
FC Port Group
FC Port Binding
Multipath IO (MPIO)
Online LUN capacity expansion
LUN snapshot
LUN snapshot replication and clone
Auto Tiering
QTS 5.2.5: Yes
RAID Type
QTS 5.2.5:
8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
2-bay: JBOD, Single, RAID 0, 1
QuTS hero h5.2.5:
8-bay (and more): Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, 60, Triple Mirror, Triple Parity
6-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, Triple Mirror, Triple Parity
RAID Type (Contd.)
4-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, Triple Mirror, Triple Parity
3-bay: Single, RAID 0 (Stripe), 1, 5, Triple Mirror, Triple Parity
2-bay: Single, RAID 0 (Stripe), 1
RAID Group
Yes
RAID Level Migration
QTS 5.2.5: Yes
RAID Expansion (by adding Disk)
QTS 5.2.5: Yes
RAID Expansion
Yes (by replacing bigger Disks)
Storage Pool Expansion
Yes (by adding RAID Group)
RAID Hot Spare
Global, Local
RAID Sync/Rebuild/Scrubbing
Yes
End-to-End data integrity
QuTS hero h5.2.5: Yes
Silent error detection and self-healing
QuTS hero h5.2.5: Yes
Internal drive
QTS 5.2.5: EXT4
QuTS hero h5.2.5: ZFS
External drive
EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT
QTS 5.2.5: Optional for ARM model
Disk, Enclosure Locate
Yes
Disk S.M.A.R.T. Scan
Yes
Disk S.M.A.R.T. Data Migration
Yes
Ironwolf Health Management
Yes
Secure Erase
Yes
SSD Trim
Yes
SSD Life Estimation
Yes
Disk Roaming
Yes
Disk Standby
Yes
Volume Snapshot
Yes
LUN Snapshot
Yes
Minimum Snapshot Interval
QTS 5.2.5: 5 minutes
QuTS hero h5.2.5: 1 minute
Snapshot Retention Policy
Yes
Self-serve Snapshot Recovery
Yes
Application Consisted Snapshot
Yes
Snapshot Full Clone
Yes
Snapshot Instant Clone
QuTS hero h5.2.5: Yes
Snapshot Replica / Vault
Yes
SSD read-only Cache
Yes
SSD read-write cache
QTS 5.2.5: Yes
SSD write-only cache
QTS 5.2.5: Yes
SSD read & write log cache
QuTS hero h5.2.5: Yes
SSD dedicated ZIL cache
QuTS hero h5.2.5: Yes
SSD Cache RAID
QTS 5.2.5: 0, 1, 5, 6, 10
QuTS hero h5.2.5: 0, 1, 10 (journal)
SSD profiling tool
QTS 5.2.5: Yes
External Device Management
Yes
Mount Smart Phone (MTP)
Yes
External RAID Device (QNAP so on)
Management (External Device Mode)
Management (NAS Mode)
File Server
File sharing across Windows, Mac, and Linux/UNIX
Microsoft networking (CIFS/SMB)
Apple networking (AFP)
NFS version 3/4 services
FTP Server
QuFTP (QTS 5.2.5 only)
FTP, SFTP and TFTP protocols
FTP over SSL/TLS (explicit FTPS)
FXP support
Maximum FTP connection
1024
Shared Folder Data Compression
QuTS hero h5.2.5: Yes
Shared Folder Data Deduplication
QuTS hero h5.2.5: Yes
Shared Folder WORM
QuTS hero h5.2.5: Yes
File Station (Web)
Yes
Object Storage
Yes
Local user account
QTS 5.2.5: 4096
QuTS hero h5.2.5: 16,000
Local group account
512
Domain user/group account
200000
Domain Security
Yes
Domain Controller
Yes
Shared folder permission
Yes
Advanced folder permission
QTS 5.2.5: Yes, (AFP, CIFS/SMB, FTP, and File Station)
Windows ACL
QTS 5.2.5: Yes, (CIFS/SMB)
User quota
Yes
Group quota
Yes
Folder quota
Yes
QTS 5.2.5: Snapshot shared folder
Home folder
Yes
Resource Monitor
Yes
SNMP
V2, V3
Network recycle bin
Recover files deleted using AFP, CIFS/SMB, and File Station
Automatic cleanup and file type filter
System Log & Notification Center
Log recording: 3,000 event per second
Smart Fan
Yes
Schedule on/off
Yes
Internet protocol
IPv4, IPv6
Virtual Switch
Yes
Port trunking
Yes, (7 modes)
VLAN
Yes
DHCP Server
Yes
DDNS (Dynamic Domain Name Service)
Yes
Network access protection
SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP (with auto-blocking)
Security Counselor
Yes
Malware Remover
Yes
AES 256-bit Volume Encryption validated
Yes (by FIPS 140-2 CAVP)
2-step verification
Yes
Allow/Deny List
Yes
Access Protection
Yes
Service binding
Yes
Firewall
Yes
VMware vSphere Ready
Yes
vSphere Web Client Plug-in
Yes
VMware vSphere VAAI for iSCSI
Yes
VMware vSphere VAAI for NAS
Yes
Windows ODX
Yes
Windows/VMware Snapshot Agent
Yes
HTTP/HTTPS Connections
TLS 1.0/1.1/1.2/1.3
Supports WebDAV Connection
Yes
Supports Virtual Hosts
32
Qsync
Yes
Management Mode: User customization, Central
Qsync client supported platforms: Windows, macOS, Ubuntu, Android, and iOS
Maximum number of version control: 64
Hybrid Mount
Yes
File Cloud Gateway:
QTS 5.2.5: Concurrent Connections = 20 Upload & 20 Download
QuTS hero h5.2.5: Concurrent Connections = 80 Upload & 80 Download
Network Drive Mount
Free cloud gateway sessions: 2
HBS (Hybrid Backup Sync)
Yes
NAS to NAS backup
Cloud Backup
Cloud Sync
2-way and Active Sync
Backup Deduplication
Apple Time Machine Backup
External drive backup
Maximum number of backup job: 400
Hyper Data Protector
Yes
Boxafe
Yes
Office 365 Backup
Google Workspace Backup
Full-text search
Qsirch
Yes
Previews: Photos, music, videos, PDFs, Gmail, and others
Integrate Mac Finder
Advanced picture search
Search filters
QuMagie
Yes
Browse photos
Virtual and smart albums
AI-assisted photo management: People, things, places, and others
Antivirus (free)
Yes
McAfee (License)
Yes
QVPN Service
Yes
Remote Access: PPTP, L2TP/IPSec, OpenVPN, WireGuard (QTS 5.2.5 only), QBelt (QNAP proprietary)
Supported utility and mobile app: Windows, macOS, iOS, and Android
Supported maximum clients: 100
HD Station
Yes
LDAP Server
Yes
RADIUS
Yes
SQL server
Yes
License Center
Yes
Multimedia Console
Yes
Photo Station
Yes
Music Station
Yes
Video Station
Yes
Download Station
Yes
Notes Station
Yes
Qfiling
Yes
Media Streaming add-on
Yes
QmailAgent
Yes
QuWAN
Yes
DA Driver Analyzer
Yes
Q’center
Yes
Q’center Server
Yes
Q’center Agent
Yes
Connect to Q’center
Yes
Virtualization Station
Yes
Supports Virtual machine instances: Windows, Linux, Unix, and Android
VM importing, exporting, cloning, snapshot capturing, backup, and restoration: All function is Fine.
Virtual switches: Can create a virtual switch
GPU pass-through:
QTS 5.2.5: Not support GPU
QuTS hero h5.2.5: GPU function is fine
Suggested number of virtual machine instances: 4
Container Station
Yes
Supported type: LXC/LXD and Docker
Docker Hub Registry
Container importing and exporting
Console mode
Linux Station
Yes
Supports Ubuntu versions:
QTS 5.2.5: 18.04, and 20.04
QuTS hero h5.2.5: 16.04, 18.04, and 20.04
Linux Station Center
Yes
QVR Pro
QTS 5.2.5: Yes
Recording Technique: Index database based
License Type: Perpetual
User-defined trigger events
Metadata
QVR Pro Client (Desktop): Windows, macOS, and QNAP HybridDesk Station
QVR Pro Client (Mobile): Android and iOS
Recording camera streams: H.264
Free built-in camera channels: 8
QVR Elite
Yes
Recording Technique: Standard MP4 file based
License Type: Subscription-based
User-defined trigger events
QVR Pro Client (Desktop): Windows, macOS, and QNAP HybridDesk Station
QVR Pro Client (Mobile): Android and iOS
Recording camera streams: H.264
Free built-in camera channels: 2
Expandable camera channels: Developing (QuTS hero h5.2.5 only)
QVR Pro Client
QTS 5.2.5: Yes
Dynamic View Layout
Windows
Mac
HybridDesktop
iOS
Android
QVR Center
Yes
Log management
Central monitoring across multiple servers
QVR Guard
QTS 5.2.5: Yes
Failover design
Viewing task details
Automatic switch between Standby and Takeover modes
QVR Human
QTS 5.2.5: Yes
QVR Face
QTS 5.2.5: Yes
QVR DoorAccess
QTS 5.2.5: Yes
There are no reviews yet.
