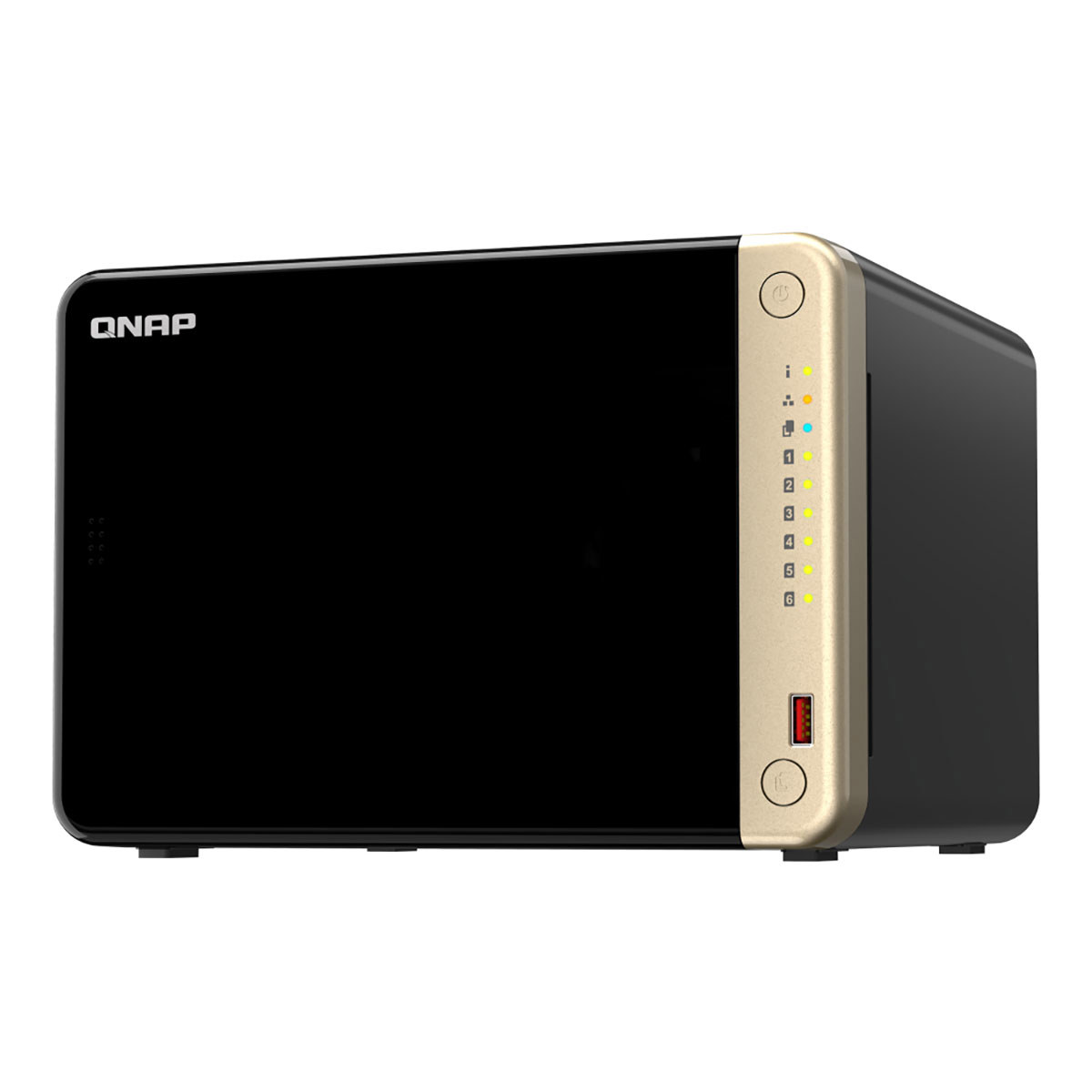

QNAP TS-664-8G 6-Bay NAS Enclosure, Diskless

Add to Wishlist

Key Features

  • Empower your small business with this 6-bay NAS enclosure, designed for high performance.
  • Utilize the Intel Celeron N5095 CPU for efficient data processing and quick file transfers.
  • Safeguard critical data with RAID configurations, ensuring data security and business continuity.
  • Expand your storage as needed with up to 16 GB of memory for growing data demands.
  • Connect seamlessly with 2.5GbE ports, enhancing network speeds for smooth collaboration.
  • Ideal for media streaming, backups, and secure file sharing across all your devices

AED4,499.00

Add to Wishlist

About QNAP TS-664

Bye-bye Gigabit NAS, hello 2.5GbE NAS.

TS-664 is a compact 6-bay NAS with superior performance. Supporting up to 120 TB storage and 4 TB M.2 SSD caching at an affordable price, the TS-664 fulfills your multitasking challenges for file management, backup, collaboration, and video conversion.

The TS-664 uses the QTS operating system by default. You will be able to switch to using the QuTS hero operating system. QuTS hero provides benefits such as ZFS data integrity and WORM technology to prevent data tampering. (Switching to QuTS hero is supported starting from QTS 5.2.1.)

2.5GbE is a must!
TS-664 is as fast as a single-port 10GbE NAS with up to 589 MB/s transfer speeds by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.

Quad-core for multitasking
Perform additional tasks, stream more media, and have more services running with an Intel quad-core processor optimized for multitasking.

Smooth video conversion
Built-in GPU for enhanced video conversion, allowing videos to be smoothly streamed from the NAS to mobile devices.

Upgrade to dual-port 10GbE
Futureproof your network connection by installing a PCIe dual-port 10GbE network card that delivers up to 1,644 MB/s transfer speed.

Faster USB transfer
Two USB 3.2 Gen 2 (10Gbps) ports allow faster backup to/from USB devices.

More M.2 NVMe SSDs
If two M.2 slots aren’t enough, install a QM2 PCIe expansion card for more M.2 SSD slots.

TS-664-8G
Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz, 8 GB SODIMM DDR4 (1 x 8 GB)

2.5GbE NAS is a must in 2024
With increasing availability on switches, motherboards, and laptops, 2023 is the year of 2.5GbE. By setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports to unleash network potential and increase fault tolerance, the TS-664 delivers up to 589 MB/s transfer speeds for fast data access workflow.

New-generation quad-core processor for optimized performance

Processor
Intel Celeron N5095 quad-core processor, burst up to 2.9 GHz

Memory
Built-in 8 GB DDR4 memory

GPU
Built-in Intel UHD Graphics to speed up video processing and graphical computing

Encryption Engine
Features Intel AES-NI 256 hardware-accelerated encryption to boost system performance while securing sensitive data.

Upgrade to dual-port 10GbE with a PCIe network card
With a superior hardware design, you can install a dual-port 10GbE network card QXG-10G2TB in the TS-664. Combining 10GbE networking, quad-core processor, and M.2 SSD caching, the TS-664 unleashes its full performance potential.

Expand storage capacity up to 18 hard drives
TS-664 supports a storage capacity of up to 120 TB by installing six 3.5-inch 24 TB hard drives in RAID 5. By connecting a TL-D1600S QNAP storage expansion unit, you can add an additional eighteen hard drives to the TS-664 to achieve up to 380 TB storage space to meet growing storage requirements.

Accelerate AI-powered image recognition and caching with TPU and PCIe expansion
TS-664 has two M.2 PCIe Gen 3 slots for installing NVMe SSD (including Apacer, Micron, Seagate, WD, and more) or Edge TPU.

Install M.2 NVMe SSDs for cache acceleration or efficient tiered storage
If you have a huge number of small files requiring read/write operations, you can easily boost IOPS of TS-664 by configuring its two M.2 SSDs as a cache disk.

When transmitting bigger files, you can create a storage pool with two M.2 SSDs. With Qtier automatically moving hot data to SSD and cold data to hard drives, TS-664 allows you to enjoy exceptional application performance.

Accelerate AI-powered image recognition with TPU
By leveraging a Edge TPU to QNAP AI Core (the AI-powered engine for image recognition), the TS-664 can perform high-speed face and object recognition. Edge TPU enables QuMagie to quickly process thousands of photos with high-speed AI Image recognition and classification, and QVR Face to analyze real-time video for instant facial recognition.

Abundant I/O capabilities with PCIe expansion
QNAP offers a wide range of expansion cards to add versatile functions to your NAS. The TS-664 has one PCIe Gen 3 x2 slot that supports various expansion cards for expanding application potential.

QM2 card – QM2-2P10G1TB
Add a 10GbE port and two M.2 SSD slots at the same time.

QM2 card – QM2-2P-344A
Add two M.2 SSDs to create a storage pool with larger capacity caching with the built in M.2 SSDs.

Wi-Fi 6 adapter
Install a Wi-Fi 6 adapter to turn the TS-664 into a Wi-Fi NAS, allowing accessing NAS data via wireless network.

One Touch Copy backup with USB 3.2 Gen 2
TS-664 provides two 10Gbps USB 3.2 Gen 2 ports for faster file transfer to/from USB 3.2 Gen 2 devices. The One Touch Copy button also allows you to back up the contents of USB devices to the TS-664 with a single button press.

Smoother mobile experience with GPU
Taking a lot of photos with your smartphone? Qfile mobile app will help you free up space by automatically backing up photos to the TS-664. With Intel UHD Graphics, the TS-664 greatly speeds up converting videos to 1080p / 720p, allowing for smooth streaming to mobile devices over varying mobile network speeds.

Use your NAS like a PC
QNAP’s exclusive Virtualization Station enables running multiple Windows/Linux virtual machines. By connecting a keyboard, mouse, and HDMI monitor, you can easily use the TS-664 as a PC.

QTS 5, Fast, smooth, and easy-to-use!
The TS-664 comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.

Brighter. Smoother. You’ll like it.
When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker.

Get started with the notice board
When performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.

Smooth and reactive user interface
Whether clicking buttons, switching between apps, expanding/collapsing windows – every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps.

Switch to QuTS hero operating system for optimal data integrity and reliability
The TS-664 also supports QuTS hero – QNAP’s ZFS-based NAS operating system, providing end-to-end data integrity, WORM protection, data reduction (inline data deduplication, compression, and compaction), and much more.

Backup. Storage. Surveillance. QNAP is your best choice.

Simple Backup
Superior hardware performance with an all-in-one Backup Solution to speed up backup/recovery tasks.

Back up all your devices

PC and Mac backup
Sync your computer files to NAS with Qsync. TS-664 also supports Time Machine for Mac computers.

License-free VM backup
Back up multiple VMware and Hyper-V VMs using Hyper Data Protector.

File server backup
Supports multiple protocols such as Rsync, FTP and CIFS for backing up different file servers.

SaaS Business Backup Solution
Use Boxafe to easily back up Google Workspace and Microsoft 365 business account data.

Google Photos and WordPress backup
The exclusive MARS service enables backing up Google Photos and WordPress databases and files to NAS.

Remote Replication for NAS data

Back up data from one NAS to another NAS
Back up data on a local NAS to another remote NAS using Hybrid Backup Sync. You can also deduplicate your backup using QuDedup to save time and storage space.

Back up NAS data to the Cloud
Hybrid Backup Sync supports mainstream public cloud services for backing up or syncing data from NAS to Cloud.

Cloud Storage Gateway
VJBOD Cloud connects cloud object storage (Bucket) and back up data from NAS to the cloud.

Back up NAS snapshots
Use Snapshot Replica to back up NAS snapshots to another NAS and recover when needed.

Smart storage
QNAP’s exclusive apps provide easy-to-use file storage and collaboration tools. Snapshots also help protect important data from Ransomware.

Snapshots protection

Volume and LUN snapshots
“Snapshots” record the complete status of your NAS system and data. Certain data and files can be reverted when needed.

Versioning
Regularly create snapshots. The more snapshots you have, the lower the risk of data loss.

Smart snapshot space management
QNAP supports smart snapshot space management to ensure there is enough storage space for new snapshots.

Boost production efficiency

Qsync
Sync files between NAS and multiple computers or mobile devices.

Qsirch
Quickly find documents, media files, and emails using key words, colors, or faces.

Qfiling
Create filing rules and set schedules to automatically archive files into dedicated folders based on their category.

QuMagie
TS-664 leverages powerful AI photo management and creates smart photo albums based on people, objects, locations, and events, making photos easy to find and share.

QNAP TS-664 Features

  • 6-bay NAS supporting 3.5″ and 2.5″ SATA HDDs/SSDs for scalable storage
  • Intel Celeron N5105/N5095 quad-core processor for efficient multitasking
  • Dual 2.5GbE ports for fast and seamless data transfer
  • PCIe expansion slot for 10GbE networking, SSD caching, or additional functionality
  • 4K HDMI output for direct multimedia playback and surveillance applications
SKU: TS-664-8G-US Category: Tag:

QNAP TS-664 Specifications
Hardware
Hardware
Jump to…
CPU
Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz

CPU Architecture
64-bit x86

Graphic Processors
Intel UHD Graphics

Floating Point Unit
Yes

Encryption Engine
Yes (AES-NI)

Hardware-accelerated Transcoding
Yes

System Memory
8 GB SODIMM DDR4 (1x 8 GB)

Maximum Memory
16 GB (2x 8GB)

Memory Slot
2x SODIMM DDR4

Flash Memory
4GB (Dual boot OS protection)

Drive Bay
6x 3.5-inch SATA 6Gb/s

Drive Compatibility
3.5″ SATA hard disk drives
2.5″ SATA solid state drives

Hot-swappable
Yes (Not supported M.2 SSD)

M.2 Slot
2x M.2 2280 PCIe Gen 3 x1

SSD Cache Acceleration Support
Yes

2.5 Gigabit Ethernet Port
2 (2.5G/1G/100M/10M) (2.5G/1G/100M)

5 Gigabit Ethernet Port
Optional via PCIe expansion card (5G/2.5G/1G/100M)

10 Gigabit Ethernet Port
Optional via PCIe expansion card

Wake on LAN (WOL)
Yes

Jumbo Frame
Yes

PCIe Slot
1x Slot 1: PCIe Gen 3 x2

USB 2.0 port
2x

USB 3.2 Gen 2 (10Gbps) Port
2x Type-A

IR Sensor
Yes (Optional QNAP RM-IR004 remote control)

HDMI Output
1, HDMI 2.1 (up to 4096 x 2160 @ 60Hz)

Form Factor
Tower

LED Indicators
Power/Status, LAN, USB, HDD1-6

Buttons
Power, USB copy, Reset

Operating Temperature
32 – 104 Degree F (0 – 40 Degree C)

Storage Temperature
-4 – 158 Degree F (-20 – 70 Degree C)

Relative Humidity
5-95% RH non-condensing, wet bulb: 27 Degree C (80.6 Degree F)

Power Supply Unit
120W adapter, 100-240V

Power Consumption: Disk Standby Mode
23.22

Power Consumption
44.02 W (Operating Mode, Typical)

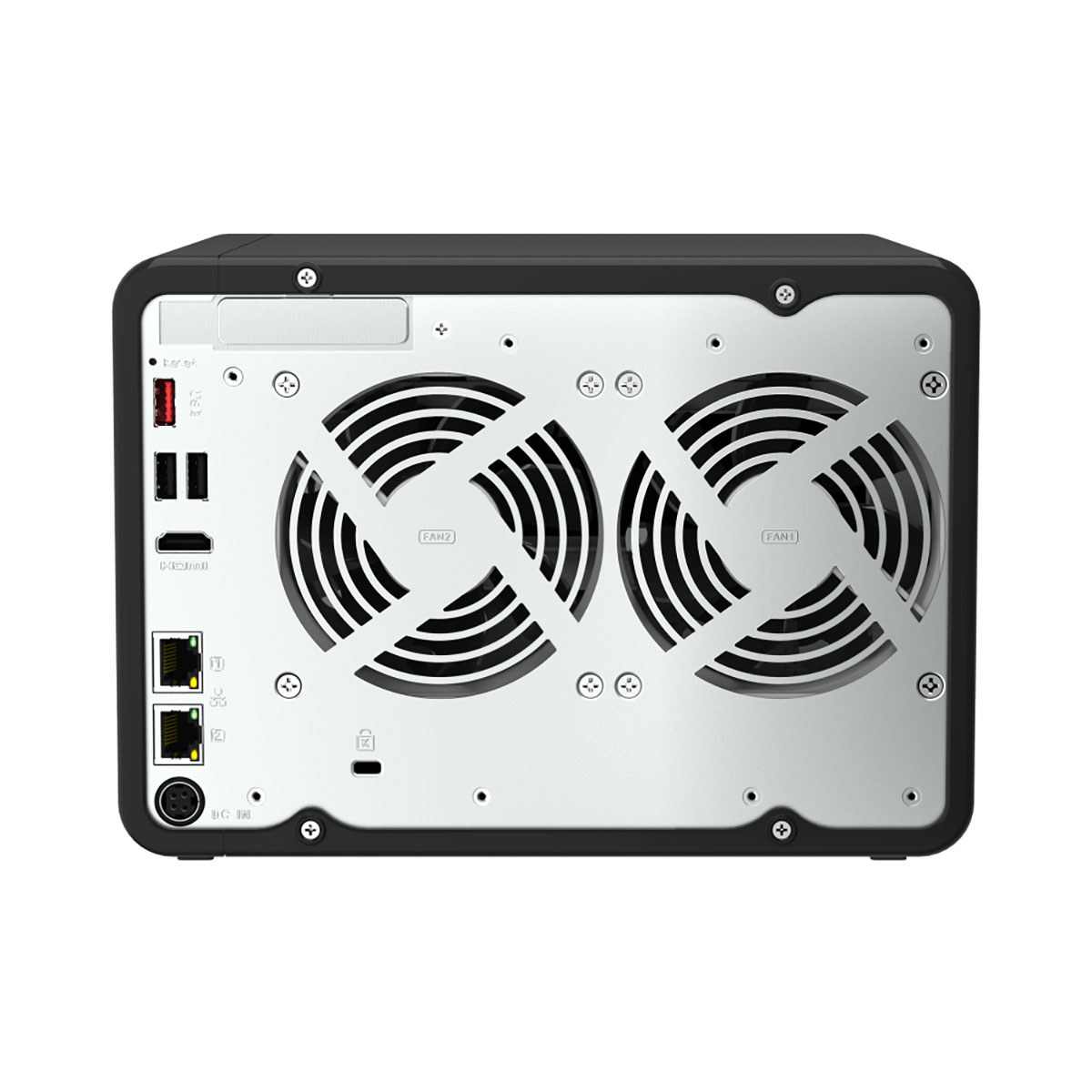

Fan
2x 90mm, 12VDC

System Warning
Buzzer

Kensington Security Slot
Yes

Max. Number of Concurrent Connections
1500 (with Max. Memory)

Dimensions (H x W x D)
6.5 x 9.25 x 8.92″ (16.5 x 23.5 x 22.6cm)

Weight
6.48 lbs (2.94kg)

Software
Jump to…
Operating System
QTS 5.2.3
QuTS hero h5.2.3

Supported Client Operating Systems
Apple Mac OS 10.10 or later
Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
IBM AIX 7, Solaris 10 or later UNIX
Microsoft Windows 7, 8, 10 and 11
Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022

Supported Browsers
Apple Safari (latest version)
Google Chrome (latest version)
Microsoft Edge (latest version)
Mozilla Firefox (latest version)

Supported Languages
Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish

Storage Pool
Yes

SED Storage Pool
Yes

Maximum Pool size
QTS 5.2.3: 308 TB
QuTS hero h5.2.3: 5 PB

Maximum number of storage pool
128

Volume Type
QTS 5.2.3: Thick, Thin, Static
QuTS hero h5.2.3: Thick, Thin

Maximum volume size
QTS 5.2.3: 250 TB

Maximum number of volume
QTS 5.2.3: 128

Maximum shared folder size
QTS 5.2.3: 250 TB
QuTS hero h5.2.3: 5 PB

Maximum number of shared folder
QTS 5.2.3: 512
QuTS hero h5.2.3: 256

JBOD Expansion
Yes

VJBOD / VJBOD Cloud
Yes

iSCSI Service
Yes

Fiber Channel Service
Yes

LUN Type
Thick, Thin

File-based iSCSI LUN
QTS 5.2.3: Yes

Block-based iSCSI LUN
Yes

Maximum LUN size
QTS 5.2.3: 250 TB
QuTS hero h5.2.3: 1024 TB

Maximum number of targets LUN
QTS 5.2.3: 128
QuTS hero h5.2.3: 256

LUN feature
QTS 5.2.3:

  • LUN Mapping (LUN can be moved between iSCSI and FC)

  • LUN Masking

  • WWPN Aliases Import/Export

  • FC Port Group

  • FC Port Binding

  • Multipath IO (MPIO)

  • Online LUN capacity expansion

  • LUN snapshot

  • LUN snapshot replication and clone

Auto Tiering
QTS 5.2.3: Yes

RAID Type
QTS 5.2.3:

  • 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60

  • 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50

  • 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10

  • 2-bay: JBOD, Single, RAID 0, 1

QuTS hero h5.2.3:

  • 8-bay (and more): Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, 60, Triple Mirror, Triple Parity

  • 6-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, Triple Mirror, Triple Parity

  • 4-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, Triple Mirror, Triple Parity

  • 3-bay: Single, RAID 0 (Stripe), 1, 5, Triple Mirror, Triple Parity

  • 2-bay: Single, RAID 0 (Stripe), 1

RAID Group
Yes

RAID Level Migration
QTS 5.2.3: Yes

RAID Expansion (by adding Disk)
QTS 5.2.3: Yes

RAID Expansion
Yes (by replacing bigger Disks)

Storage Pool Expansion
Yes (by adding RAID Group)

RAID Hot Spare
Global, Local

RAID Sync/Rebuild/Scrubbing
Yes

End-to-End data integrity
QuTS hero h5.2.3: Yes

Silent error detection and self-healing
QuTS hero h5.2.3: Yes

Internal drive
QTS 5.2.3: EXT4
QuTS hero h5.2.3: ZFS

External drive
EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT
QTS 5.2.3: Optional for ARM model

Disk, Enclosure Locate
Yes

Disk S.M.A.R.T. Scan
Yes

Disk S.M.A.R.T. Data Migration
Yes

Ironwolf Health Management
Yes

Secure Erase
Yes

SSD Trim
Yes

SSD Life Estimation
Yes

Disk Roaming
Yes

Disk Standby
Yes

Volume Snapshot
Yes

LUN Snapshot
Yes

Minimum Snapshot Interval
QTS 5.2.3: 5 minutes
QuTS hero h5.2.3: 1 minute

Snapshot Retention Policy
Yes

Self-serve Snapshot Recovery
Yes

Application Consisted Snapshot
Yes

Snapshot Full Clone
Yes

Snapshot Instant Clone
QuTS hero h5.2.3: Yes

Snapshot Replica / Vault
Yes

SSD read-only Cache
Yes

SSD read-write cache
QTS 5.2.3: Yes

SSD write-only cache
QTS 5.2.3: Yes

SSD read & write log cache
QuTS hero h5.2.3: Yes

SSD dedicated ZIL cache
QuTS hero h5.2.3: Yes

SSD Cache RAID
QTS 5.2.3: 0, 1, 5, 6, 10
QuTS hero h5.2.3: 0, 1, 10 (journal)

SSD profiling tool
QTS 5.2.3: Yes

External Device Management
Yes

Mount Smart Phone (MTP)
Yes

External RAID Device (QNAP so on)

  • Management (External Device Mode)

  • Management (NAS Mode)

File Server

  • File sharing across Windows, Mac, and Linux/UNIX

  • Microsoft networking (CIFS/SMB)

  • Apple networking (AFP)

  • NFS version 3/4 services

FTP Server

  • QuFTP (QTS 5.2.3 only)

  • FTP, SFTP and TFTP protocols

  • FTP over SSL/TLS (explicit FTPS)

  • FXP support

Maximum FTP connection
1024

Shared Folder Data Compression
QuTS hero h5.2.3: Yes

Shared Folder Data Deduplication
QuTS hero h5.2.3: Yes

Shared Folder WORM
QuTS hero h5.2.3: Yes

File Station (Web)
Yes

Object Storage
Yes

Local user account
QTS 5.2.3: 4096
QuTS hero h5.2.3: 16,000

Local group account
512

Domain user/group account
200000

Domain Security
Yes

Domain Controller
Yes

Shared folder permission
Yes

Advanced folder permission
QTS 5.2.3: Yes, (AFP, CIFS/SMB, FTP, and File Station)

Windows ACL
Yes
QTS 5.2.3: CIFS/SMB

User quota
Yes

Group quota
Yes

Folder quota
Yes
QTS 5.2.3: Snapshot shared folder

Home folder
Yes

Resource Monitor
Yes

SNMP
V2, V3

Network recycle bin

  • Recover files deleted using AFP, CIFS/SMB, and File Station

  • Automatic cleanup and file type filter

System Log & Notification Center
Log recording: 3,000 event per second

Smart Fan
Yes

Schedule on/off
Yes

Internet protocol
IPv4, IPv6

Virtual Switch
Yes

Port trunking
Yes, (7 modes)

VLAN
Yes

DHCP Server
Yes

DDNS (Dynamic Domain Name Service)
Yes

Network access protection
SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP (with auto-blocking)

Security Counselor
Yes

Malware Remover
Yes

AES 256-bit Volume Encryption validated
Yes (by FIPS 140-2 CAVP)

2-step verification
Yes

Allow/Deny List
Yes

Access Protection
Yes

Service binding
Yes

Firewall
Yes

vSphere Web Client Plug-in
Yes

VMware vSphere VAAI for iSCSI
Yes

VMware vSphere VAAI for NAS
Yes

Windows ODX
Yes

Windows/VMware Snapshot Agent
Yes

HTTP/HTTPS Connections
TLS 1.0/1.1/1.2/1.3

Supports WebDAV Connection
Yes

Supports Virtual Hosts
32

Qsync
Yes

  • Management Mode: User customization, Central

  • Qsync client supported platforms: Windows, macOS, Ubuntu, Android, and iOS

  • Maximum number of version control: 64

HybridMount
Yes
File Cloud Gateway:

  • QTS 5.2.3: Concurrent Connections = 20 Upload & 20 Download

  • QuTS hero h5.2.3: Concurrent Connections = 80 Upload & 80 Download

Network Drive Mount
Free cloud gateway sessions: 2

HBS (Hybrid Backup Sync)
Yes

  • NAS to NAS backup

  • Cloud Backup

  • Cloud Sync

  • 2-way and Active Sync

  • Backup Deduplication

  • Apple Time Machine Backup

  • External drive backup

  • Maximum number of backup job: 400

Hyper Data Protector
Yes

Boxafe
Yes

  • Office 365 Backup

  • Google Workspace Backup

  • Full-text search

Qsirch
Yes

  • Previews: Photos, music, videos, PDFs, Gmail, and others

  • Integrate Mac Finder

  • Advanced picture search

  • Search filters

QuMagie
Yes

  • Browse photos

  • Virtual and smart albums

  • AI-assisted photo management: People, things, places, and others

Antivirus (free)
Yes

McAfee (License)
Yes

QVPN Service
Yes

  • Remote Access: PPTP, L2TP/IPSec, OpenVPN, WireGuard (QTS 5.2.3 only), QBelt (QNAP proprietary)

  • Supported utility and mobile app: Windows, macOS, iOS, and Android

  • Supported maximum clients: 100

HD Station
Yes

LDAP Server
Yes

RADIUS
Yes

SQL server
Yes

License Center
Yes

Multimedia Console
Yes

Photo Station
Yes

Music Station
Yes

Video Station
Yes

Download Station
Yes

Notes Station
Yes

Qfiling
Yes

Media Streaming add-on
Yes

QmailAgent
Yes

QuWAN
Yes

DA Driver Analyzer
Yes

Q’center
Yes

Q’center Server
Yes

Q’center Agent
Yes

Connect to Q’center
Yes

Virtualization Station
Yes

  • Supports Virtual machine instances: Windows, Linux, Unix, and Android

  • VM importing, exporting, cloning, snapshot capturing, backup, and restoration: All function is Fine.

  • Virtual switches: Can create a virtual switch

  • GPU pass-through:

    • QTS 5.2.3: Not support GPU

    • QuTS hero h5.2.3: GPU function is fine

  • Suggested number of virtual machine instances: 4

Container Station
Yes

  • Supported type: LXC/LXD and Docker

  • Docker Hub Registry

  • Container importing and exporting

  • Console mode

Linux Station
Yes

  • Supports Ubuntu versions:

    • QTS 5.2.3: 18.04, and 20.04

    • QuTS hero h5.2.3: 16.04, 18.04, and 20.04

Linux Station Center
Yes

QVR Pro
QTS 5.2.3: Yes

  • Recording Technique: Index database based

  • License Type: Perpetual

  • User-defined trigger events

  • Metadata

  • QVR Pro Client (Desktop): Windows, macOS, and QNAP HybridDesk Station

  • QVR Pro Client (Mobile): Android and iOS

  • Recording camera streams: H.264

  • Free built-in camera channels: 8

QVR Elite
Yes

  • Recording Technique: Standard MP4 file based

  • License Type: Subscription-based

  • User-defined trigger events

  • QVR Pro Client (Desktop): Windows, macOS, and QNAP HybridDesk Station

  • QVR Pro Client (Mobile): Android and iOS

  • Recording camera streams: H.264

  • Free built-in camera channels: 2

  • Expandable camera channels: Developing (QuTS hero h5.2.3 only)

QVR Pro Client
QTS 5.2.3: Yes

  • Dynamic View Layout

  • Windows

  • Mac

  • HybridDesktop

  • iOS

  • Android

QVR Center
Yes

  • Log management

  • Central monitoring across multiple servers

QVR Guard
QTS 5.2.3: Yes

  • Failover design

  • Viewing task details

  • Automatic switch between Standby and Takeover modes

QVR Human
QTS 5.2.3: Yes

QVR Face
QTS 5.2.3: Yes

QVR DoorAccess
QTS 5.2.3: Yes

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “QNAP TS-664-8G 6-Bay NAS Enclosure, Diskless”

There are no reviews yet.

Related products
