QNAP TS-855X 8-Bay NAS Enclosure, Intel Atom C5125 2.8GHz, 32GB RAM, Diskless


Key Features

  • Experience seamless file sharing with this QNAP NAS enclosure, perfect for home or office.
  • Safeguard your critical data using RAID configurations on this reliable QNAP storage server.
  • Boost productivity with fast performance, powered by an Intel Atom CPU in this NAS device.
  • Set up your personal cloud storage quickly with the easy setup of this QNAP NAS enclosure.
  • Scale your storage as needed with this 8-bay NAS, ensuring long-term data management.
  • Trust in QNAP’s brand reputation for data security, offering peace of mind for your files.

AED8,399.00

AboutĀ QNAP TS-855X

If you’re seeking a reliable, advanced, and high-performance network-attached storage (NAS) solution, look no further than the TS-855X 8-Bay NAS Enclosure. Powered by an Intel Atom C5125 8-core 2.8 GHz processor, this compact and user-friendly device is designed to meet your large-scale data storage and backup needs.

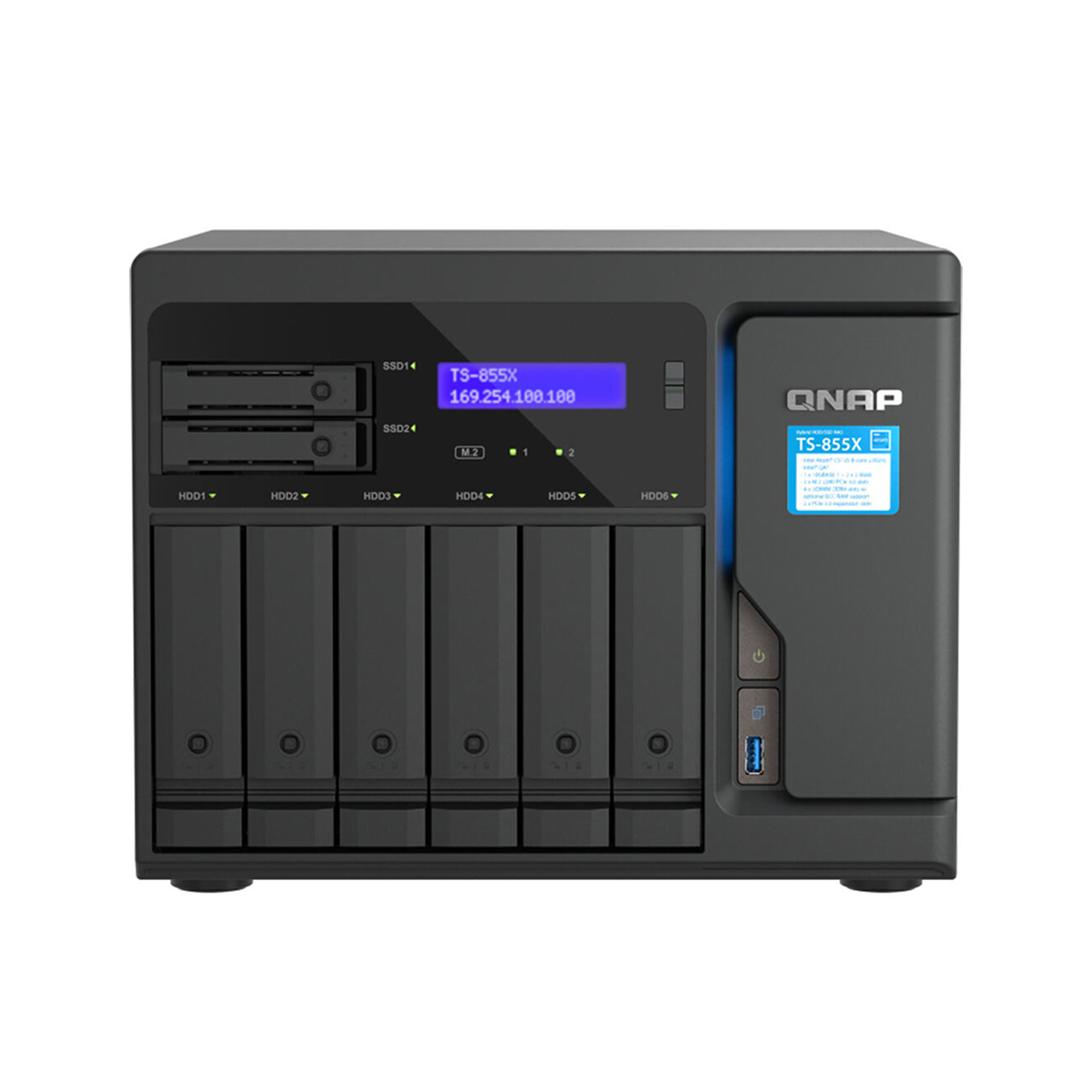

The TS-855X NAS Enclosure features six 3.5-inch SATA drive bays for HDDs and two 2.5-inch SATA drive bays for SSDs, providing ample storage space. With its 8-core processor supporting Intel QuickAssist Technology (QAT), it’s perfectly equipped to assist businesses in deploying a data storage and virtualization environment.

This NAS enclosure stands out with its built-in 10GbE/2.5GbE high-speed connectivity, ensuring fast data access, backup/restoration, and efficient operation of file server and virtualization applications. It runs the QTS operating system as standard but can be switched to the ZFS-based QuTS hero operating system based on your specific requirements.

The TS-855X delivers exceptional 8-core performance for running multiple concurrent tasks. It supports AES-NI encryption and Intel QuickAssist Technology (QAT) to offload resource-demanding compression and improve IPsec/SSL cryptography performance. With four UDIMM DDR4 slots (8 GB preinstalled) that can be upgraded to 128 GB ECC RAM, it can handle higher workloads with ease.

This NAS enclosure also features two M.2 PCIe Gen 3 slots for installing M.2 2280 NVMe SSDs or Edge TPU to boost NAS performance. It also has two PCIe Gen 3 x4 slots for installing various expansion cards to increase its application potential.

The TS-855X supports block-based iSCSI LUN as a reliable, high-performance, and affordable storage solution for mainstream virtualization environments. It also offers comprehensive security and privilege settings, ensuring optimal NAS protection against threats like malware and hackers.

With its rich apps for storing, managing, synchronizing, searching, and archiving files, the TS-855X is the smartest NAS solution for professionally managing your files. It also provides an affordable Fiber Channel SAN environment and a smart surveillance solution for 24/7 security.

The TS-855X NAS Enclosure is an all-round budget-friendly storage solution for diverse applications, including file servers, high-speed storage/backup/recovery, and virtualization. Whether you’re looking to boost productivity, enhance data integrity, or increase storage capacity, the TS-855X is the ideal choice.

QNAP TS-855XĀ Features

  • 2.5GbE/10GbE connectivity:Ā Dual-port 2.5GbE and single-port 10GbE connectivity. The dual 2.5GbE ports also support SMB Multichannel for up to 5GBps
  • Flexible storage expansion:Ā Connect TL-R1620Sep-RP / TL-R1220Sep-RP JBOD units to the TS-855X for adding up to 48 additional drive capacity to match your business growth
  • Flexible PCIe Gen3 expansion:Ā Features two PCIe Gen 3 slots for installing 5/10/25GbE network cards, QM2 cards or Fiber Channel cards
  • M.2 SSD caching:Ā Dual M.2 PCIe NVMe slots enable SSD caching, SSD storage pools, or Qtier auto-tiered storage
  • Virtual machines and containers:Ā Host virtual machines and containerized apps on one device to optimize resource utilization and IT budgeting. Supports SR-IOV
  • All-inclusive data backup and restoration:Ā A reliable backup center for your PC/Macs, virtual machines, containers, cloud data, and SaaS data
SKU: TS-855X-8G-US Category: Tag:

QNAP TS-855X Specifications

Category Specification
CPU Intel Atom C5125 8-core processor, 2.8GHz
CPU Architecture 64-bit x86
Floating Point Unit Yes
Encryption Engine Yes (AES-NI)
System Memory 8GB non-ECC UDIMM DDR4 (1x 8 GB)
Maximum Memory 128GB (4x 32 GB)
Memory Slot 4x U-DIMM DDR4 (Supports ECC memory)
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 6x 3.5″ + 2x 2.5″ SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5″ bays: 3.5″ SATA HDDs / 2.5″ SATA SSDs
2.5″ bays: 2.5″ SATA SSDs
Hot-swappable Yes
M.2 Slot 2x M.2 2280 PCIe Gen 3 x4 slots
SSD Cache Acceleration Support Yes
SR-IOV Yes
2.5 Gigabit Ethernet Port 2 (2.5G/1G/100M)
10 Gigabit Ethernet Port 1x 10GBASE-T
25 Gigabit Ethernet Port Optional via PCIe expansion card
Wake on LAN (WOL) Yes
Jumbo Frame Yes
PCIe Slot 2 (PCIe Gen 3 x4 each)
USB Ports 1x USB 2.0, 3x USB 3.2 Gen 1
Form Factor Tower
LED Indicators Power/Status, LAN, USB, HDD1–6, SSD1–2, M.2 SSD1–2
Buttons Power, Reset, USB Auto Copy
Operating Temperature 0–40°C (32–104°F)
Storage Temperature -20–70°C (-4–158°F)
Relative Humidity 5–95% RH (non-condensing, wet bulb: 27°C)
Power Supply Unit 250W PSU, 100–240V
Power Consumption 86.96W (typical)
Fan System: 2x 80mm / CPU: 1x 90mm
Other Interfaces Kensington security slot
System Warning Buzzer
Standard Warranty 3 years
Max. Concurrent Connections 2500 (CIFS with max memory)
Dimensions (H x W x D) 9.13 x 11.53 x 12.59″ (23.1 x 29.2 x 31.9 cm)
Weight 18.74 lbs (8.5 kg)

Software

Operating System QTS 5.1.0 / QuTS hero h5.1.0
Supported Client OS macOS 10.10+, Linux (Ubuntu 14.04+, CentOS 7+, RHEL 6.6+, SUSE 12+), UNIX (AIX 7, Solaris 10+), Windows 7–11 & Server 2008–2022
Supported Browsers Safari, Chrome, Edge, Firefox (latest versions)
Languages Chinese (Traditional/Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish

Storage & RAID

| Storage Pool | Yes |
| SED Storage Pool | Yes |
| Max Pool Size | QTS: 308TB / QuTS hero: 5PB |
| Max Volume Size | QTS: 250TB / QuTS hero: 5PB |
| RAID Support | JBOD, RAID 0/1/5/6/10/50/60 (QTS) <br> Single, RAID 0/1/5/6/10/50/60, Triple Mirror, Triple Parity (QuTS hero) |
| Auto Tiering | Yes (Not in QuTS hero) |
| RAID Hot Spare | Global, Local |
| End-to-End Data Integrity | Yes (QuTS hero only) |
| Silent Error Detection/Self-Healing | Yes (QuTS hero only) |
| File System (Internal) | QTS: EXT4 / QuTS hero: ZFS |
| File System (External) | EXT3/4, NTFS, FAT32, HFS+, exFAT |


Networking & Security

| Protocols | IPv4, IPv6 |
| Port Trunking | Yes (7 modes) |
| VLAN / DHCP / DDNS | Yes |
| Firewall / Security Counselor | Yes |
| AES 256-bit Encryption | Yes (FIPS 140-2 CAVP) |
| 2-Step Verification | Yes |
| Access Protection | Yes |
| VMware / Windows / Citrix Ready | Yes |
| TLS Support | TLS 1.0/1.1/1.2/1.3 |


Virtualization & Containers

| Virtualization Station | Yes – supports Windows, Linux, Unix, Android <br> GPU passthrough: QuTS hero only |
| Container Station | Yes – LXC/LXD, Docker supported |
| Linux Station | QTS: Ubuntu 18.04, 20.04 <br> QuTS hero: 16.04, 18.04, 20.04 |
| QVR Pro / QVR Elite | Yes – Surveillance system with camera channel support (8 Pro / 2 Elite free) |


Backup & Cloud Services

| HBS (Hybrid Backup Sync) | Yes – NAS, Cloud, and External drive backup |
| Boxafe | Yes – O365 & Google Workspace backup |
| Qsync / HybridMount / QuWAN | Yes |
| Snapshot / Clone / Replica | Yes |
| Deduplication / Compression | Yes (QuTS hero only) |


Multimedia & Apps

| Photo / Music / Video Station | Yes |
| Qsirch / QuMagie / Qfiling | Yes |
| Download Station / QmailAgent / Multimedia Console | Yes |
| Antivirus / McAfee (License) | Yes |
| QVPN Service | PPTP, L2TP/IPSec, OpenVPN, WireGuard, QBelt (QTS) |
