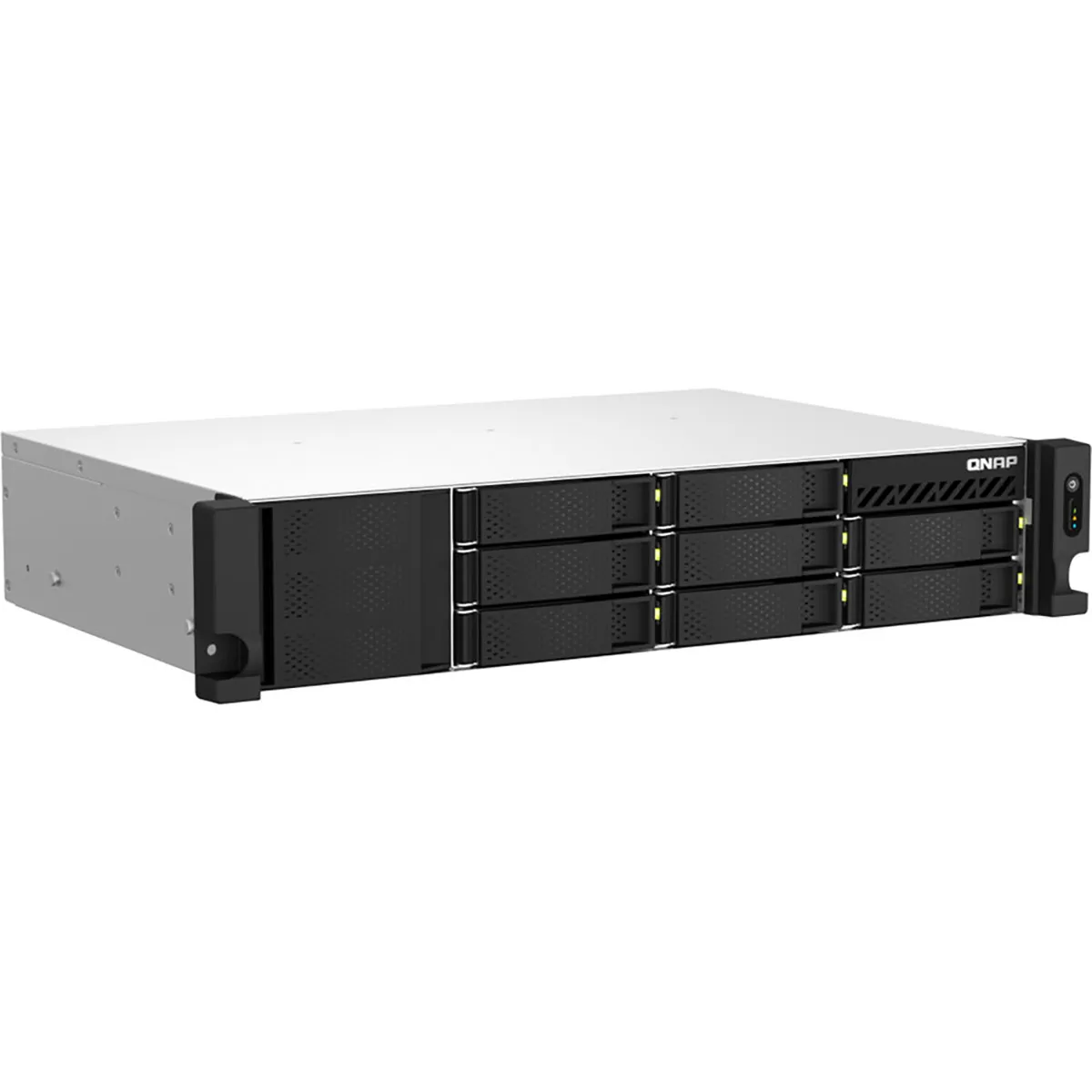

QNAP TS-864eU-RP 8-Bay 2U Short-Depth Rackmount NAS Enclosure, Diskless
Key Features
- Experience rapid data access and smooth multitasking with the Intel Celeron N5095 processor, ensuring exceptional speed for your NAS.
- Benefit from robust data reliability and integrity, thanks to advanced RAID options and the ZFS file system on QuTS hero.
- Enjoy versatile compatibility with 8 hot-swappable drive bays, supporting both 3.5″ HDDs and 2.5″ SSDs for flexible storage.
- Safeguard your critical information with AES 256-bit encryption and comprehensive security features for peace of mind.
- Achieve superior scalability with PCIe Gen 3 x2 expansion, allowing for future upgrades like 10 Gigabit Ethernet connectivity.
- Optimize performance with SSD cache acceleration support, boosting read/write speeds for frequently accessed data on your NAS.
AED9,899.00
About QNAP TS-864EU-RP
The TS-864eU-RP is powered by Intel Celeron N5095 quad-core processor (burst up to 2.9 GHz). The space-efficient short depth design makes it easy to install in small media cabinets or places with a lot of cabling. With expandable storage capacity and feature-rich apps, the TS-864eU-RP surpasses the previous generation.
The TS-864eU-RP uses the QTS operating system by default. You will be able to switch to using the QuTS hero operating system. QuTS hero provides benefits such as ZFS data integrity and WORM technology to prevent data tampering. (Switching to QuTS hero is supported starting from QTS 5.2.2.)
2.5GbE connectivity
Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE ports.
HDMI Output
Supports 4K media playback and real-time transcoding.
PCIe expandability
One PCIe slots allow for installing 2.5/5/10GbE adapters, QM2 cards, or USB 3.2 Gen 2 (10Gbps) expansion cards.
USB interface
Two USB 3.2 Gen 2 10Gbps ports for faster data transfer.
Backup and data recovery
Protects PC/Macs, virtual machines, software containers, cloud data, and SaaS services.
Hybrid cloud applications
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS.
Quad-core Processor, burst up to 2.9 GHz with Memory Upgradable to 8 GB
The TS-864eU-RP is powered by Intel Celeron N5095 quad-core processor (burst up to 2.9 GHz) with 4 GB DDR4 memory which is upgradable up to 16 GB. With Intel AES-NI encryption engine, the TS-x64eU provides unmatched encryption performance with AES-256 bit encryption acceleration, boosting system performance while ensuring the safety of sensitive business data stored in the NAS.
Build a High-Speed 2.5GbE Network Environment
QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.
A fast 2.5GbE NAS
A QNAP NAS featuring one or more 2.5GbE ports, and Port Trunking allows you to combine multiple ports for greater bandwidth potential.
Upgrade computers and servers
Servers and desktops can install PCIe-based QNAP network cards that support 10G/5G/2.5G/1G/100M Multi-Gig.
Add a 5GbE port to laptops
Laptops and upgrade-limited computers can use QNAP’s portable USB 3.2 Gen 1 to 5GbE adapter that allows you to connect to 5G/2.5G/1G/100M networks via USB.
A switch that supports 2.5GbE+
QNAP’s 10GbE/NBASE-T switches support 10G/5G/2.5G/1G/100M and allow connecting multiple workstations and devices for high-speed collaboration in device-dense environments.
Future-proof your IT infrastructure for high-speed networks
The TS-864eU-RP is ideally matched with QNAP’s managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure, and scalable network environments without going over budget. QNAP also provide 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters for Windows/Linux workstations, allowing you to easily build a high-speed network environment for productive team collaboration.
Enhance productivity with multiple USB ports
With two USB 3.2 Gen 2 (10Gbps) ports and two USB 2.0 (480Mbps) ports, you can quickly backup and transfer large files to/from the TS-864eU-RP. UPS, and other compatible USB devices can also be connected for greater functionality and application potential.
Abundant I/O capabilities with PCIe expansion
The TS-864eU-RP has one PCIe Gen 3 x2 slot that allow for installing various expansion cards for expanding application potential.
2.5/5/10GbE network card
Enable lightning-fast throughput for bandwidth-demanding tasks (virtualization, massive data transmission, fast backup/restore).
QM2 card
Add M.2 SSD caching, Edge TPU or 10GbE network connectivity to the NAS for optimize performance and bandwidth.
USB 3.2 Gen 2 (10Gbps) Expansion Card
Add extra USB ports to the TS-864eU-RP.
SSD Caching and Auto Tiering for Optimized Storage Efficiency
The TS-864eU-RP supports SSD caching to improve the workflow of random IOPS demanding applications such as virtualization. Qtier Technology empowers the TS-864eU-RP with auto tiering that continuously optimizes storage utilization across high-performance SSD and high-capacity SATA drives. Qtier 2.0 features IO-awareness that empowers SSD tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.
Faster image identification with integrated Intel OpenVINO AI engine.
With integrated Intel OpenVINO AI computing resources, the TS-864eU-RP accelerates AI image recognition performance without impacting other applications or services. QNAP AI Core primarily works with the QuMagie application.
QuMagie photo management
Easy-to-use photo management solution that integrates AI image recognition and intelligent classification for your collection.
• With GPU acceleration 41.7% Performance boost
Direct 4K HDMI output for multimedia and virtual machine display
The TS-864eU-RP features Intel UHD Graphics that supports dual-channel hardware decoding and real-time transcoding. The HDMI 1.4b output supports up to 4K @30Hz, providing great benefits for applications like video production/editing or industrial design that demands high resolution and color realism as well as intensive media storage, transfer, and display. By connecting the TS-864eU-RP to an HDMI display, you can directly watch multimedia content saved on the NAS, or use the TS-864eU-RP as a versatile workstation by directly outputting virtual machines from Virtualization Station or Ubuntu Linux Station.
QTS 5, Fast, smooth, and easy-to-use!
The TS-864eU-RP comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.
Brighter. Smoother. You’ll like it.
When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker.
Get started with the notice board
When performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.
Smooth and reactive user interface
Whether clicking buttons, switching between apps, expanding/collapsing windows – every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps.
Switch to QuTS hero operating system for optimal data integrity and reliability
The TS-864eU-RP also supports QuTS hero – QNAP’s ZFS-based NAS operating system, providing end-to-end data integrity, WORM protection, data reduction (inline data deduplication, compression, and compaction), and much more.
Comprehensive backup and disaster recovery solution
The TS-864eU-RP supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.
PC/Laptop backup
For Windows, install NetBak Replicator to back up your PC to QNAP NAS. In macOS, just set up the built-in Time Machine to secure your data.
Remote backup for NAS
Hybrid Backup Sync makes it easy to back up data from a TS-864eU-RP to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.
VM backup
Enjoy license-free VMware and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.
SaaS backup
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google Workspace and Microsoft Office 365 to the NAS.
Cloud backup for NAS
Use Hybrid Backup Sync to back up NAS data to myQNAPcloud Storage or other mainstream cloud space. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.
QuDedup technology
Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.
Multi-version snapshots mitigate ransomware threats
The TS-864eU-RP supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.
The best file storage and collaboration center
The TS-864eU-RP integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows, Mac, and Linux/UNIX, and provides the smartest NAS solution for professionally managing your files.
File Station
Manage, access, and share all the files in the TS-864eU-RP and view snapshots files – all from your web browser. You can also easily mount remote NAS folders and cloud storage.
Qsync
Make any file uploaded to a TS-864eU-RP available to linked devices, such as computers, laptops and mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration.
QNAP TS-864EU-RP Features
-
Quad-core Intel Celeron N5095 CPU (burst up to 2.9GHz) offering efficient multitasking and AES-NI accelerated encryption
-
Eight hot-swappable 3.5″/2.5″ SATA drive bays supporting RAID 0/1/5/6/10/50/60 and SSD caching
-
Dual 2.5GbE LAN ports with port trunking support (up to 5Gbps combined throughput), ideal for enhanced network performance
-
PCIe Gen3 x2 expansion slot enables additions such as 10GbE adapters, QM2 SSD caching/AI modules, or USB 3.2 Gen2 cards
-
Redundant power supplies for high reliability and continuous operation
QNAP TS-864EU-RP Specifications
Hardware
Hardware
Jump to…
CPU
Intel Celeron N5095 4-core/4-thread processor, burst up to 2.9 GHz
CPU Architecture
64-bit x86
Graphic Processors
Intel UHD Graphics
Floating Point Unit
Yes
Encryption Engine
Yes (AES-NI)
Hardware-accelerated Transcoding
Yes
System Memory
8GB SODIMM DDR4 (1x 8GB)
Maximum Memory
16 GB (2x 8GB)
Memory Slot
8GB
Flash Memory
4GB (Dual boot OS protection)
Drive Bay
8x 3.5″ SATA 6Gb/s, 3Gb/s
Drive Compatibility
3.5″ bays:
3.5″ SATA hard disk drives
2.5″ SATA solid state drives
Hot-swappable
Yes (Not supported M.2 SSD)
M.2 Slot
Optional via a PCIe adapter
SSD Cache Acceleration Support
Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M)
2 (2.5G/1G/100M/10M)
5 Gigabit Ethernet Port
Optional via network adapter (5G/2.5G/1G/100M)
10 Gigabit Ethernet Port
Optional via network adapter
Wake on LAN (WOL)
Yes
Jumbo Frame
Yes
PCIe Slot
1x
Slot 1: PCIe Gen 3 x2
USB 2.0 port
2x
USB 3.2 Gen 2 (10Gbps) Port
2x Type A USB 3.2 Gen 2
HDMI Output
1x, HDMI 1.4b
Form Factor
2U Short Depth Rackmount
LED Indicators
HDD 1-8, Status, LAN, Expansion, Power
Buttons
Power, Reset
Operating Temperature
32 – 104 Degree F (0 – 40 Degree C)
Storage Temperature
-4 – 158 Degree F (-20 – 70 Degree C)
Relative Humidity
5-95% RH non-condensing, wet bulb: 80.6 Degree F (27 Degree C)
Power Supply Unit
300W (x2), 100-240V
Power Consumption: Disk Standby Mode
31.742
Power Consumption
Operating Mode, Typical: 55.83 W
Fan
3x 60mm, 12VDC
System Warning
Buzzer
Max. Number of Concurrent Connections
1500 (with Max. Memory)
Dimensions (H x W x D)
3.49 x 17.01 x 11.71″ (8.86 x 43.20 x 29.74cm)
Weight
20.3 lbs (9.20kg)
Software
Jump to…
Operating System
QTS 5.2.5
QuTS hero h5.2.5
Supported Client Operating Systems
Apple Mac OS 10.10 or later
Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
IBM AIX 7, Solaris 10 or later UNIX
Microsoft Windows 7, 8, 10 and 11
Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022
Supported Browsers
Apple Safari (latest version)
Google Chrome (latest version)
Microsoft Edge (latest version)
Mozilla Firefox (latest version)
Supported Languages
Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish
Storage Pool
Yes
SED Storage Pool
Yes
Maximum Pool size
QTS 5.2.5: 308 TB
QuTS hero h5.2.5: 5 PB
Maximum number of storage pool
128
Volume Type
QTS 5.2.5: Thick, Thin, Static
QuTS hero h5.2.5: Thick, Thin
Maximum volume size
QTS 5.2.5: 250 TB
Maximum number of volume
QTS 5.2.5: 128
Maximum shared folder size
QTS 5.2.5: 250 TB
QuTS hero h5.2.5: 5 PB
Maximum number of shared folder
QTS 5.2.5: 512
QuTS hero h5.2.5: 256
JBOD Expansion
Yes
VJBOD / VJBOD Cloud
Yes
iSCSI Service
Yes
Fiber Channel Service
Yes
LUN Type
Thick, Thin
File-based iSCSI LUN
QTS 5.2.5: Yes
Block-based iSCSI LUN
Yes
Maximum LUN size
QTS 5.2.5: 250 TB
QuTS hero h5.2.5: 1024 TB
Maximum number of targets LUN
QTS 5.2.5: 128
QuTS hero h5.2.5: 256
LUN feature
QTS 5.2.5:
LUN Mapping (LUN can be moved between iSCSI and FC)
LUN Masking
WWPN Aliases Import/Export
FC Port Group
FC Port Binding
Multipath IO (MPIO)
Online LUN capacity expansion
LUN snapshot
LUN snapshot replication and clone
Auto Tiering
QTS 5.2.5: Yes
RAID Type
Yes
QTS 5.2.5:
8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
2-bay: JBOD, Single, RAID 0, 1
RAID Type (Contd.)
QuTS hero h5.2.5:
8-bay (and more): Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, 60, Triple Mirror, Triple Parity
6-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, Triple Mirror, Triple Parity
4-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, Triple Mirror, Triple Parity
3-bay: Single, RAID 0 (Stripe), 1, 5, Triple Mirror, Triple Parity
2-bay: Single, RAID 0 (Stripe), 1
RAID Group
Yes
RAID Level Migration
QTS 5.2.5: Yes
RAID Expansion (by adding Disk)
QTS 5.2.5: Yes
RAID Expansion
Yes (by replacing bigger Disks)
Storage Pool Expansion
Yes (by adding RAID Group)
RAID Hot Spare
Global, Local
RAID Sync/Rebuild/Scrubbing
Yes
End-to-End data integrity
QuTS hero h5.2.5: Yes
Silent error detection and self-healing
QuTS hero h5.2.5: Yes
Internal drive
QTS 5.2.5: EXT4
QuTS hero h5.2.5: ZFS
External drive
EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model in QTS 5.2.5 only)
Disk, Enclosure Locate
Yes
Disk S.M.A.R.T. Scan
Yes
Disk S.M.A.R.T. Data Migration
Yes
Ironwolf Health Management
Yes
Secure Erase
Yes
SSD Trim
Yes
SSD Life Estimation
Yes
Disk Roaming
Yes
Disk Standby
Yes
Volume Snapshot
Yes
LUN Snapshot
Yes
Minimum Snapshot Interval
QTS 5.2.5: 5 minutes
QuTS hero h5.2.5: 1 minute
Snapshot Retention Policy
Yes
Self-serve Snapshot Recovery
Yes
Application Consisted Snapshot
Yes
Snapshot Full Clone
Yes
Snapshot Instant Clone
QuTS hero h5.2.5: Yes
Snapshot Replica / Vault
Yes
SSD read-only Cache
Yes
SSD read-write cache
QTS 5.2.5: Yes
SSD read & write log cache
QuTS hero h5.2.5: Yes
SSD write-only cache
QTS 5.2.5: Yes
SSD dedicated ZIL cache
QuTS hero h5.2.5: Yes
SSD Cache RAID
QTS 5.2.5: 0, 1, 5, 6, 10
QuTS hero h5.2.5: 0, 1, 10 (journal)
SSD profiling tool
QTS 5.2.5: Yes
External Device Management
Yes
Mount Smart Phone (MTP)
Yes
External RAID Device (QNAP so on)
Management (External Device Mode)
Management (NAS Mode)
File Server
File sharing across Windows, Mac, and Linux/UNIX
Microsoft networking (CIFS/SMB)
Apple networking (AFP)
NFS version 3/4 services
FTP Server
QuFTP (QTS 5.2.5 only)
FTP, SFTP and TFTP protocols
FTP over SSL/TLS (explicit FTPS)
FXP support
Maximum FTP connection
1024
Shared Folder Data Compression
QuTS hero h5.2.5: Yes
Shared Folder Data Deduplication
QuTS hero h5.2.5: Yes
Shared Folder WORM
QuTS hero h5.2.5: Yes
File Station (Web)
Yes
Object Storage
Yes
Local user account
QTS 5.2.5: 4,096
QuTS hero h5.2.5: 16,000
Local group account
512
Domain user/group account
200000
Domain Security
Yes
Domain Controller
Yes
Shared folder permission
Yes
Advanced folder permission
QTS 5.2.5: Yes, (AFP, CIFS/SMB, FTP, and File Station)
Windows ACL
Yes
QTS 5.2.5: CIFS/SMB
User quota
Yes
Group quota
Yes
Folder quota
Yes
QTS 5.2.5: Snapshot shared folder
Home folder
Yes
Resource Monitor
Yes
SNMP
V2, V3
Network recycle bin
Recover files deleted using AFP, CIFS/SMB, and File Station
Automatic cleanup and file type filter
System Log & Notification Center
Log recording: 3,000 event per second
Smart Fan
Yes
Schedule on/off
Yes
Internet protocol
IPv4, IPv6
Virtual Switch
Yes
Port trunking
Yes, (7 modes)
VLAN
Yes
DHCP Server
Yes
DDNS (Dynamic Domain Name Service)
Yes
Network access protection
SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP (with auto-blocking)
Security Counselor
Yes
Malware Remover
Yes
AES 256-bit Volume Encryption validated
Yes (by FIPS 140-2 CAVP)
2-step verification
Yes
Allow/Deny List
Yes
Access Protection
Yes
Service binding
Yes
Firewall
Yes
VMware vSphere Ready
Yes
Windows Server certificated
Yes
Citrix Ready
Yes
vSphere Web Client Plug-in
Yes
VMware vSphere VAAI for iSCSI
Yes
VMware vSphere VAAI for NAS
Yes
Windows ODX
Yes
Windows/VMware Snapshot Agent
Yes
HTTP/HTTPS Connections
TLS 1.0/1.1/1.2/1.3
Supports WebDAV Connection
Yes
Supports Virtual Hosts
32
Qsync
Yes
Management Mode: User customization, Central
Qsync client supported platforms: Windows, macOS, Ubuntu, Android, and iOS
Maximum number of version control: 64
HybridMount
Yes
File Cloud Gateway
QTS 5.2.5: Concurrent Connections = 20 Upload & 20 Download
QuTS hero h5.2.5: Concurrent Connections = 80 Upload & 80 Download
Network Drive Mount
Free cloud gateway sessions: 2
HBS (Hybrid Backup Sync)
Yes
NAS to NAS backup
Cloud Backup
Cloud Sync
2-way and Active Sync
Backup Deduplication
Apple Time Machine Backup
External drive backup
Maximum number of backup job: 400
Hyper Data Protector
Yes
Boxafe
Yes
Office 365 Backup
Google Workspace Backup
Full-text search
Qsirch
Yes
Previews: Photos, music, videos, PDFs, Gmail, and others
Integrate Mac Finder
QuMagie
Yes
Browse photos
Antivirus (free)
Yes
McAfee (License)
Yes
QVPN Service
Yes
Remote Access: PPTP, L2TP/IPSec, OpenVPN, WireGuard (QTS 5.2.5 only), QBelt (QNAP proprietary)
Supported utility and mobile app: Windows, macOS, iOS, and Android
Supported maximum clients: 100
HD Station
Yes
LDAP Server
Yes
RADIUS
Yes
SQL server
Yes
License Center
Yes
Multimedia Console
Yes
Photo Station
Yes
Music Station
Yes
Video Station
Yes
Download Station
Yes
Notes Station
Yes
Qfiling
Yes
Media Streaming add-on
Yes
QmailAgent
Yes
QuWAN
Yes
DA Driver Analyzer
Yes
Q’center
Yes
Q’center Server
Yes
Q’center Agent
Yes
Connect to Q’center
Yes
Virtualization Station
Yes
Supports Virtual machine instances: Windows, Linux, Unix, and Android
VM importing, exporting, cloning, snapshot capturing, backup, and restoration: All function is Fine.
Virtual switches: Can create a virtual switch
GPU pass-through:
QTS 5.2.5: Not support GPU
QuTS hero h5.2.5: GPU function is fine
Suggested number of virtual machine instances: 4
Container Station
Yes
Supported type: LXC/LXD and Docker
Docker Hub Registry
Linux Station
Yes
Supports Ubuntu versions
QTS 5.2.5: 18.04, and 20.04
QuTS hero h5.2.5: 16.04, 18.04, and 20.04
Linux Station Center
Yes
QVR Pro
QTS 5.2.5: Yes
Recording Technique: Index database based
License Type: Perpetual
User-defined trigger events
Metadata
QVR Pro Client (Desktop): Windows, macOS, and QNAP HybridDesk Station
QVR Pro Client (Mobile): Android and iOS
Recording camera streams: H.264
Free built-in camera channels: 8
QVR Elite
Yes
Recording Technique: Standard MP4 file based
License Type: Subscription-based
User-defined trigger events
QVR Pro Client (Desktop): Windows, macOS, and QNAP HybridDesk Station
QVR Pro Client (Mobile): Android and iOS
Recording camera streams: H.264
Free built-in camera channels: 2
QuTS hero h5.2.5: Expandable camera channels: Developing
QVR Pro Client
QTS 5.2.5: Yes
Dynamic View Layout
Windows
Mac
HybridDesktop
iOS
Android
QVR Center
Yes
Log management
Central monitoring across multiple servers
QVR Guard
QTS 5.2.5: Yes
Failover design
Viewing task details
Automatic switch between Standby and Takeover modes
QVR Human
QTS 5.2.5: Yes
QVR Face
QTS 5.2.5: Yes
QVR DoorAccess
QTS 5.2.5: Yes
There are no reviews yet.
