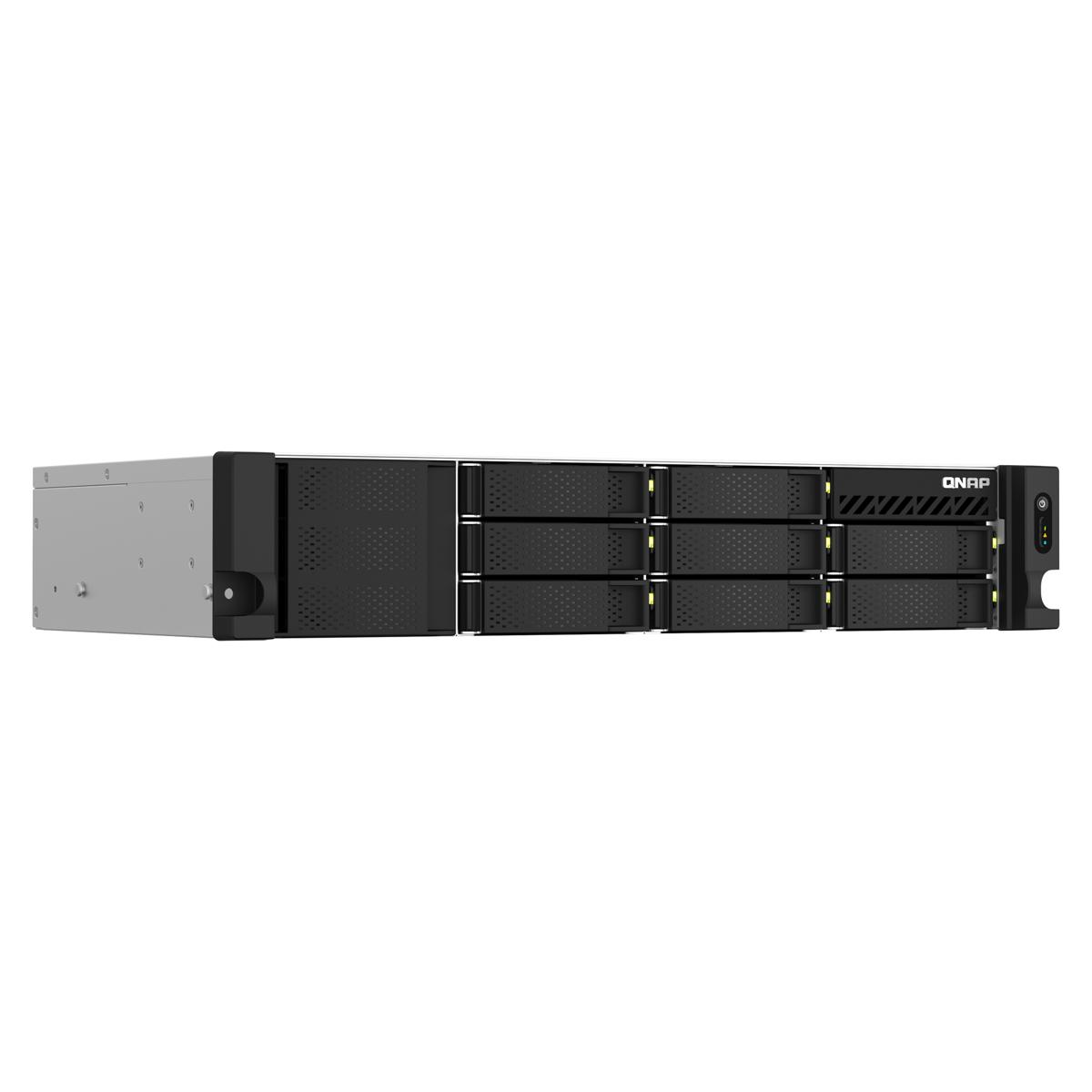

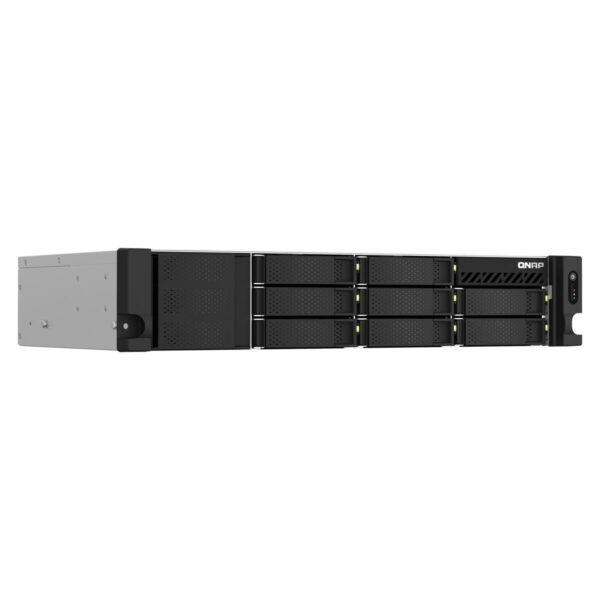

QNAP TS-873AeU 8-Bay 2U Short-Depth Rackmount NAS/iSCSI IP-SAN Enclosure, Redundant PSU
Key Features
- Empower your business with this 8-bay QNAP NAS, offering vast storage capacity.
- AMD Ryzen CPU ensures robust processing power for demanding applications on this NAS.
- Safeguard critical data with advanced security features, including AES-NI encryption.
- Rely on the redundant power supply for continuous operation and superior reliability.
- Experience lightning-fast data transfers with optional 10GbE connectivity upgrades.
- Ideal for virtualization, media storage, and backup, this NAS enhances productivity.
AED10,499.00
About QNAP TS-873AeU
Under the hood of the TS-873AeU 8-Bay 2U Short-Depth Rackmount NAS/iSCSI IP-SAN Enclosure, you’ll find a powerful AMD Ryzen V1000 series V1500B quad-core/eight-thread 2.2 GHz processor. This high-performance, reliable, and durable device is designed to provide efficient and user-friendly data storage and sharing capabilities for a network of computers.
The TS-873AeU is equipped with dual-2.5GbE connectivity, offering high-speed data transfer rates of up to 5 Gbps when using port trunking. This makes it an ideal solution for resource-demanding applications and tasks, such as virtual machines or multi-user intensive access.

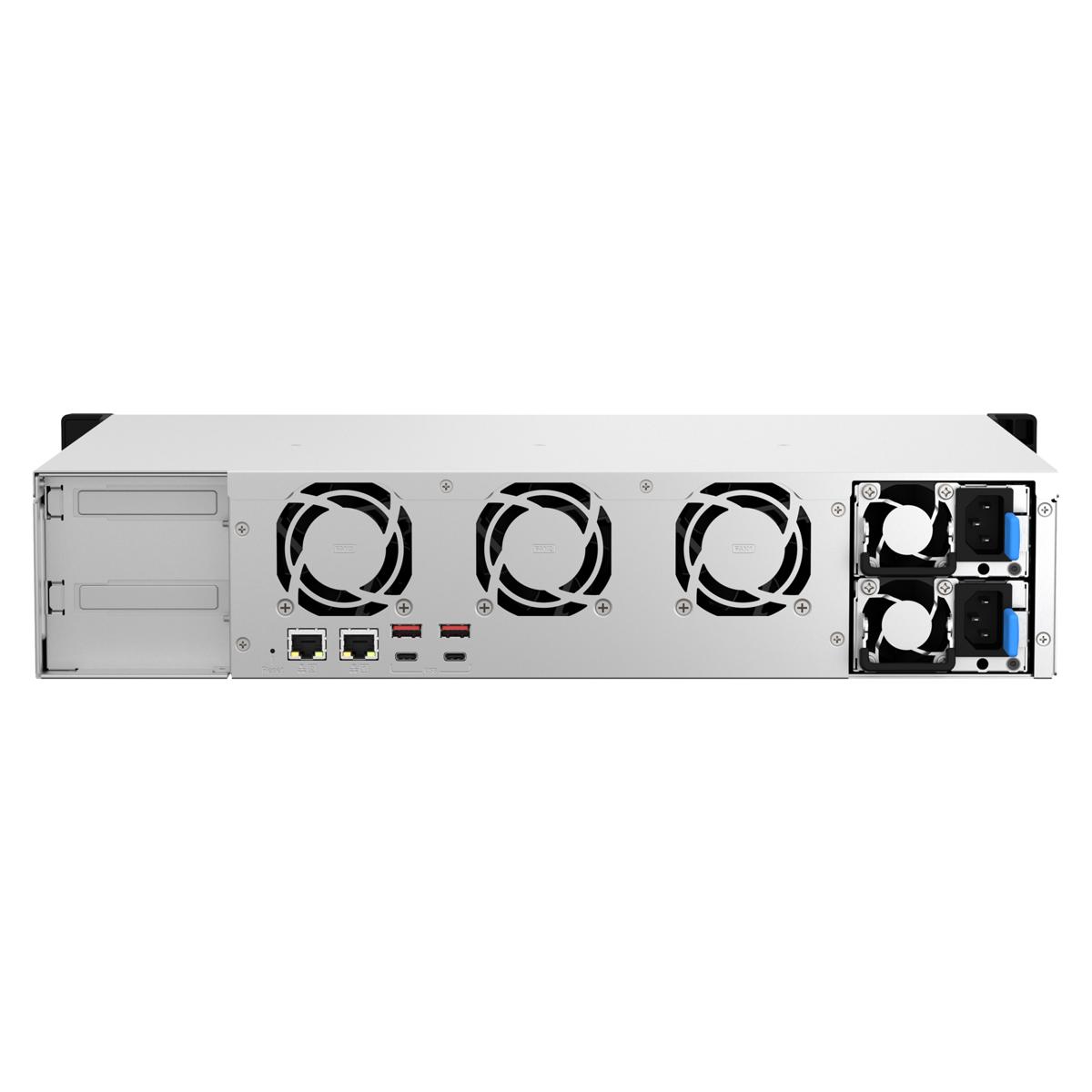

The device’s compact 2U rackmount design is space-efficient and easy to install in small media cabinets or areas with extensive cabling. It also features a redundant power supply unit (PSU), ensuring that the system remains operational even in the event of a power outage.
The TS-873AeU is enhanced with two M.2 PCIe Gen3 x 1 ports for NVMe SSD caching or Edge TPU empowered AI image recognition. It also supports block-based and file-based cloud storage gateways with local caching for low-latency access to cloud data.
The enclosure is designed to host multiple virtual machines and containers to run a wide range of applications. It also supports SSD caching and features two M.2 slots that support M.2 PCIe NVMe SSDs with 2280 form factors for boosting overall NAS performance.
The TS-873AeU is a versatile and robust solution for large-scale data storage and sharing. Its high storage capacity of up to 8TB makes it suitable for a variety of storage media, including hard drives and solid-state drives (SSDs). With its advanced features and robust design, the TS-873AeU is a reliable and efficient choice for any network storage needs.
QNAP TS-873AeU Features
-
AMD Ryzen Embedded V1500B quad-core 2.2 GHz processor
-
4 GB SODIMM DDR4 (1 x 4 GB) System Memory
-
64 GB (2 x 32 GB) Maximum Memory
-
2.5 Gigabit Ethernet Port: 2
-
5 Gigabit Ethernet Port: Optional via a network adapter
-
1 x PCIe Gen3 x8 PCIe Slot
-
2 x M2 2280 (PCIe Gen3 x 1) M.2 SSD Slot
-
Drive Bay: 8 x 3.5″ SATA 6Gb/s, 3Gb/s
QNAP TS-873AeU Specifications
| Category | Specification |
|---|---|
| CPU | AMD Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz processor |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | Yes |
| Encryption Engine | Yes (AES-NI) |
| Hardware-accelerated Transcoding | Optional via a PCIe graphics card |
| System Memory | 4 GB SODIMM DDR4 (1 x 4 GB) |
| Maximum Memory | 64 GB (2 x 32 GB) |
| Memory Slot | 2 x SO-DIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 8 x 3.5″ SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5″ SATA HDDs / 2.5″ SATA HDDs / 2.5″ SATA SSDs |
| Hot-swappable | Yes |
| M.2 Slot | 2 x M.2 2280 (PCIe Gen3 x1) |
| SSD Cache Acceleration Support | Yes |
| GPU pass-through | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (also support 10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via network adapter |
| 10 Gigabit Ethernet Port | Optional via network adapter |
| Wake on LAN (WOL) | Only the 2.5GbE port |
| Jumbo Frame | Yes |
| PCIe Slot | 1 x PCIe Gen3 x8 |
| USB 3.2 Gen 2 (10Gbps) Port | 4 (2x Type-A, 2x Type-C) |
| HDMI Output | Optional via PCIe graphics card |
| Form Factor | 2U Rackmount |
| LED Indicators | HDD 1-8, Status, LAN, USB, Power |
| Buttons | Power, Reset |
| Operating Temperature | 32°F – 104°F (0°C – 40°C) |
| Storage Temperature | -4°F – 158°F (-20°C – 70°C) |
| Relative Humidity | 5–95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 300W PSU (x2), 100–240V |
| Fan | 3 x 60mm, 12VDC |
| System Warning | Buzzer |
| Max. Concurrent Connections (CIFS) | 2000 (with Max. Memory) |
| Dimensions (H x W x D) | 3.5 x 18.98 x 11.71 in (89 x 482 x 297.4 mm) |
| Weight | 17.97 lbs (8.15 kg) |
Software
| Category | Specification |
|---|---|
| Operating System | QuTS hero h5.0.0 |
| Supported Client OS | macOS 10.10+, Ubuntu 14.04+, CentOS 7, RHEL 6.6+, SUSE 12+, IBM AIX 7, Solaris 10+, Windows 7–11, Windows Server 2008 R2–2019 |
| Supported Browsers | Safari, Chrome, Edge, Firefox (latest versions) |
| Supported Languages | Chinese (Traditional/Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish |
| Storage Pool | Yes |
| SED Storage Pool | Yes |
| Max. Pool Size | 1024 TB |
| Max. Storage Pools | 128 |
| Shared Folder Type | Thick, Thin |
| Max. Shared Folder Size | 1024 TB |
| Max. Shared Folders | 256 |
| JBOD Expansion | Yes |
| VJBOD / VJBOD Cloud | Yes |
| iSCSI & Fiber Channel Services | Yes |
| LUN Type | Thick, Thin |
| Max. LUN Size | 1024 TB |
| Max. LUN Targets | 256 |
| RAID Types | Single, 0, 1, 5, 6, 10, 50, 60, Triple Mirror, Triple Parity |
| RAID Hot Spare | Global, Local |
| End-to-End Data Integrity / Self-Healing | Yes |
| File Systems (Internal/External) | ZFS / EXT3, EXT4, NTFS, FAT32, HFS+, exFAT |
| S.M.A.R.T., Secure Erase, SSD Trim, Health Management | Supported |
| Snapshots | Shared Folder & LUN, 1-min Interval, Retention Policy, Replica/Vault |
| SSD Caching/RAID/Profiling Tools | Yes (RAID 0/1/10, read/write cache, ZIL cache) |
| External Device & RAID Management | Yes |
| File Server Protocols | CIFS/SMB, AFP, NFS v3/v4 |
| FTP Server | QuFTP, SFTP, TFTP, FTPS, FXP, 1024 connections |
| Compression/Deduplication/WORM | Yes |
| File Station (Web) | Yes |
| Object Storage | Yes |
| User/Group Accounts (Local/Domain) | 16000/200000 |
| Permissions/ACLs/Quotas | Yes |
| Home Folder / Resource Monitor / SNMP | Yes (SNMP v2/v3) |
| Network Recycle Bin | Yes |
| Logs & Notifications | Up to 3,000 events/hour |
| Smart Fan / Schedule On/Off | Yes |
| IP Protocols | IPv4, IPv6 |
| Virtual Switch / Port Trunking / VLAN / DHCP / DDNS | Supported |
| Network Access Protection / Security Counselor / Malware Remover | Yes |
| Encryption & Authentication | AES-256 (FIPS 140-2), 2-step verification, firewall, whitelist/blacklist |
| VMware/Hyper-V Support | vSphere Plug-in, VAAI for iSCSI & NAS, ODX, Snapshot Agent |
| TLS/HTTPS | TLS 1.0–1.3 |
| WebDAV / Virtual Hosts | Yes (up to 32) |
| Qsync | Central & User Mode, 64 versions, Windows/macOS/Linux/Android/iOS |
| Hybrid Mount / Cloud Gateway | Yes (80 upload/download, 2 free sessions) |
| Backup (HBS, Time Machine, Cloud, External) | Yes (up to 400 jobs, deduplication, Active Sync) |
| Qsirch / QuMagie / QVPN / Antivirus / McAfee | Yes |
| Multimedia / Productivity Apps | Photo, Music, Video, Notes, Qfiling, Qmail, Multimedia Console |
| QuWAN / Q’center / Q’center Agent | Supported |
| Virtualization Station | Up to 8 VMs (Windows/Linux/Unix/Android), cloning/snapshot/restore |
| Container Station | LXC/LXD, Docker, Console mode |
| Linux Station | Ubuntu 16.04/18.04/20.04 supported |
| QVR Elite / QVR Pro Client / QVR Center | MP4 recording, 2 free channels, Windows/macOS/iOS/Android clients |
